Seaton
Product Description:
The SEATON is a versatile adjustable downlight is designed for enhanced energy efficiency and long-lasting performance, with a lumen maintenance rating of L80/B10 for over 50,000 hours. Equipped with a Philips LED module and a precision-engineered driver system, it delivers consistent, high-quality illumination.
The 40° multifaceted aluminium reflector ensures optimal light distribution, while an optional Premium White Ra90 LED module provides exceptional colour accuracy.
Built with remanufacturing in mind, it supports sustainable lighting solutions. Offering emergency, DALI, dimming, and wireless network control options, it adapts to various applications. Finished in white RAL 9010, this luminaire is backed by a 5-year warranty, guaranteeing durability and reliability
Product Data
| Product code | Curcuit Watts (w) | Delivered Lumens | Colour Temp | Efficacy Ll/cW |
|---|---|---|---|---|
| 40° GENERAL BEAM | ||||
| 340.MF40.1050.840 | 8 | 1050 | 4000 | 131 |
| 340.MF40.1825.840 | 14 | 1825 | 4000 | 130 |
| 340.MF40.2525.840 | 19 | 2525 | 4000 | 133 |
| 340.MF40.3375.840 | 27 | 3375 | 4000 | 125 |
| 340.MF40.4550.840 | 40 | 4550 | 4000 | 114 |
| 340.MF40.1000.830 | 8 | 1000 | 3000 | 125 |
| 340.MF40.1750.830 | 14 | 1750 | 3000 | 125 |
| 340.MF40.2425.830 | 19 | 2425 | 3000 | 128 |
| 340.MF40.3250.830 | 27 | 3250 | 3000 | 120 |
| 340.MF40.4375.830 | 40 | 4375 | 3000 | 109 |
Product Options
-
Correlated colour temp
suffix .830
-
3hr Emergency
suffix .EM3 -
Dali
suffix .D -
Emergency Dali
suffix .EMD3
-

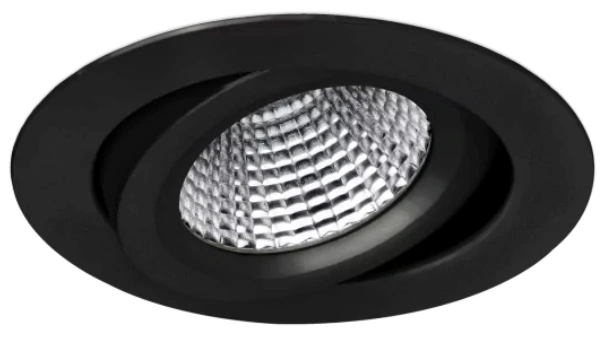

Black Finish
suffix .B -
Multi Facet 25° Narrow Beam
.MF25 -
Multi Facet 60° Wide Beam
.MF60
Features
Protection
Temperature

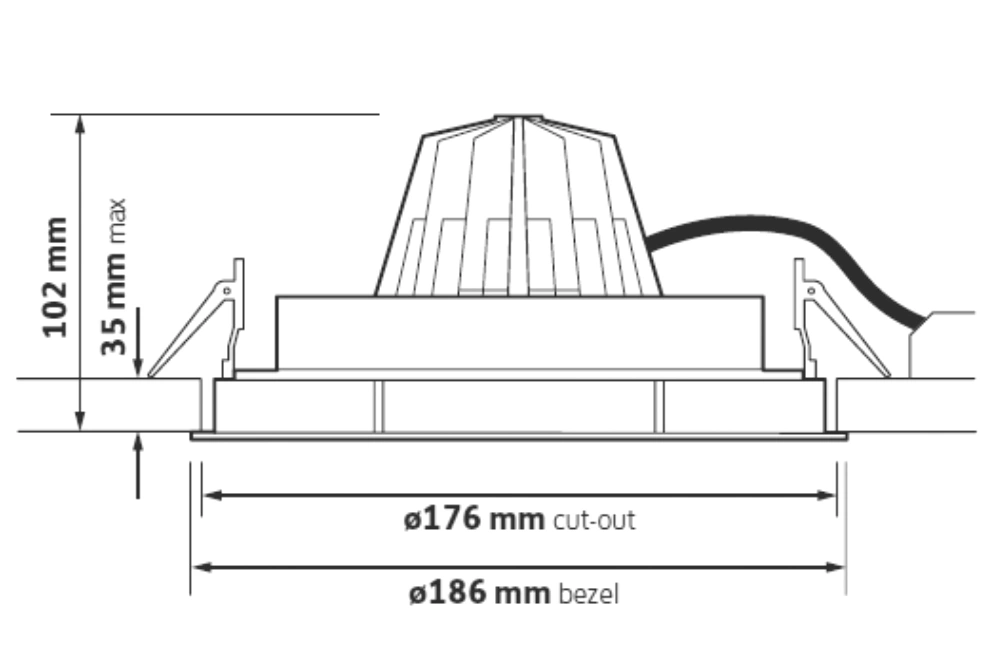

Dimensions

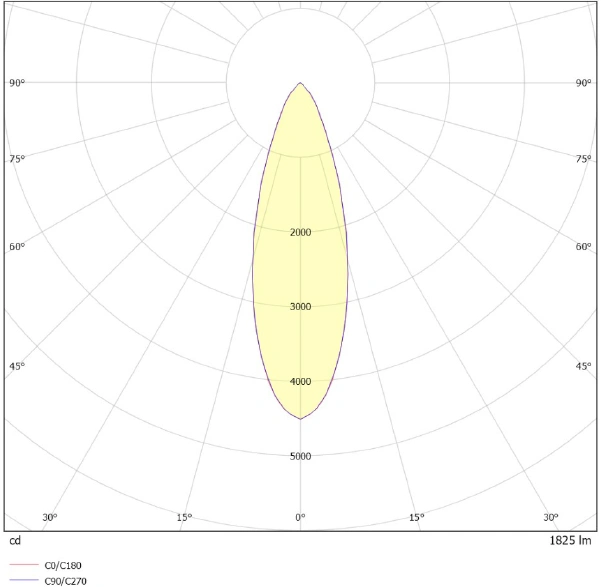

Photometric Performance
- Seaton
- Output – 1825lm
- Watts - 14
- LOR – 100%
Related Products

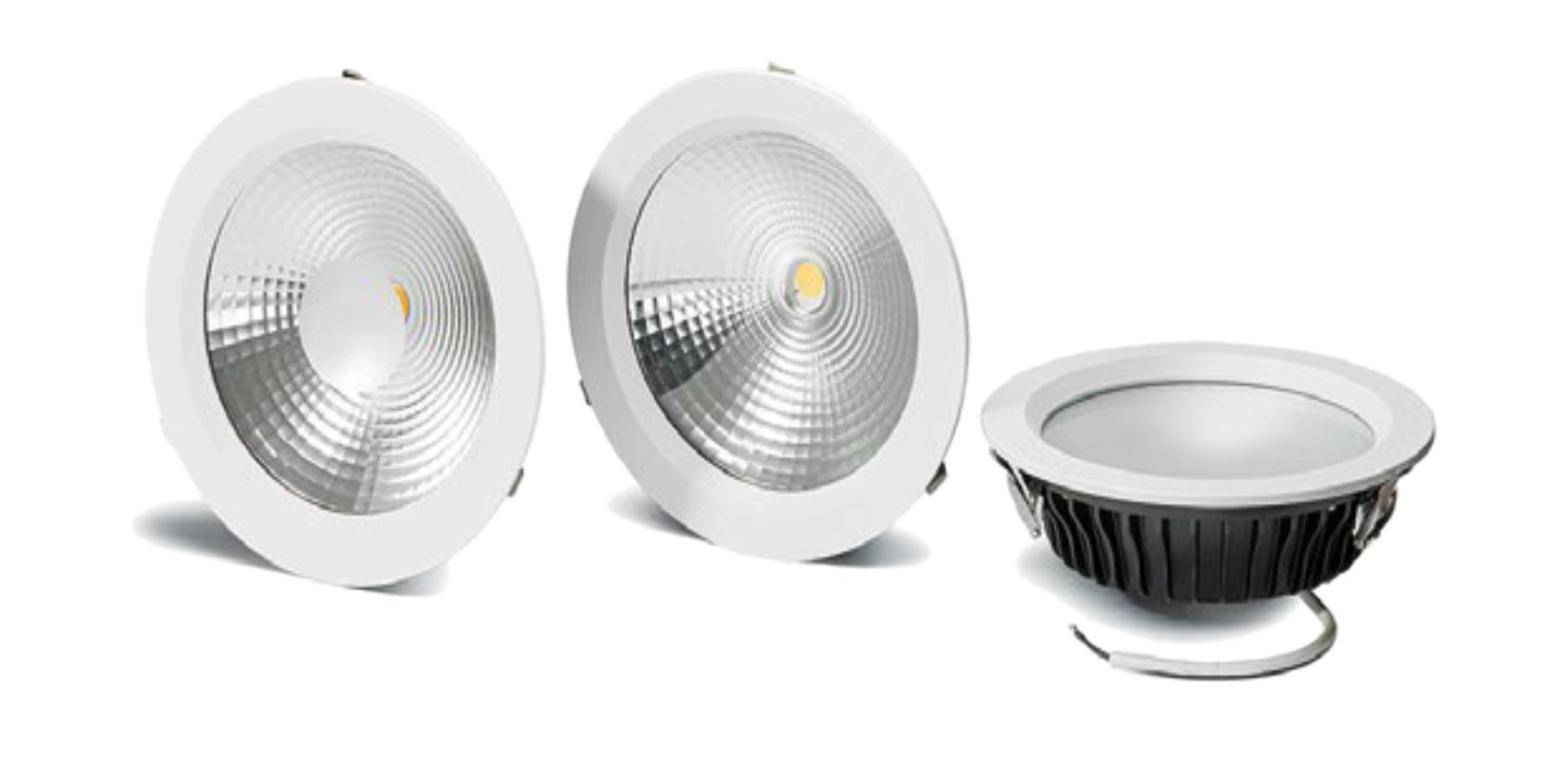

Zenith
Redefining efficiency and versatility in LED lighting, the ZENITH downlight harnesses modern LED technology to deliver exceptional light quality and longevity while remaining affordable. Compatible with existing infrastructure, it’s ideal…
VIEW PRODUCT
Galactic SQ
The Galactic SQ is a recessed mounted LED downlight. Engineered to the same exacting standards as the rest of the Galactic range, this LED downlight is equally appealing and also…
VIEW PRODUCT
Brixton Triple
The BRIXTON TRIPLE is a recessed adjustable gimbal downlighter with an output of up to 134 Ll/cW and 9800 delivered lumens overall. Featuring an adjustable tilt of up to 80…
VIEW PRODUCT

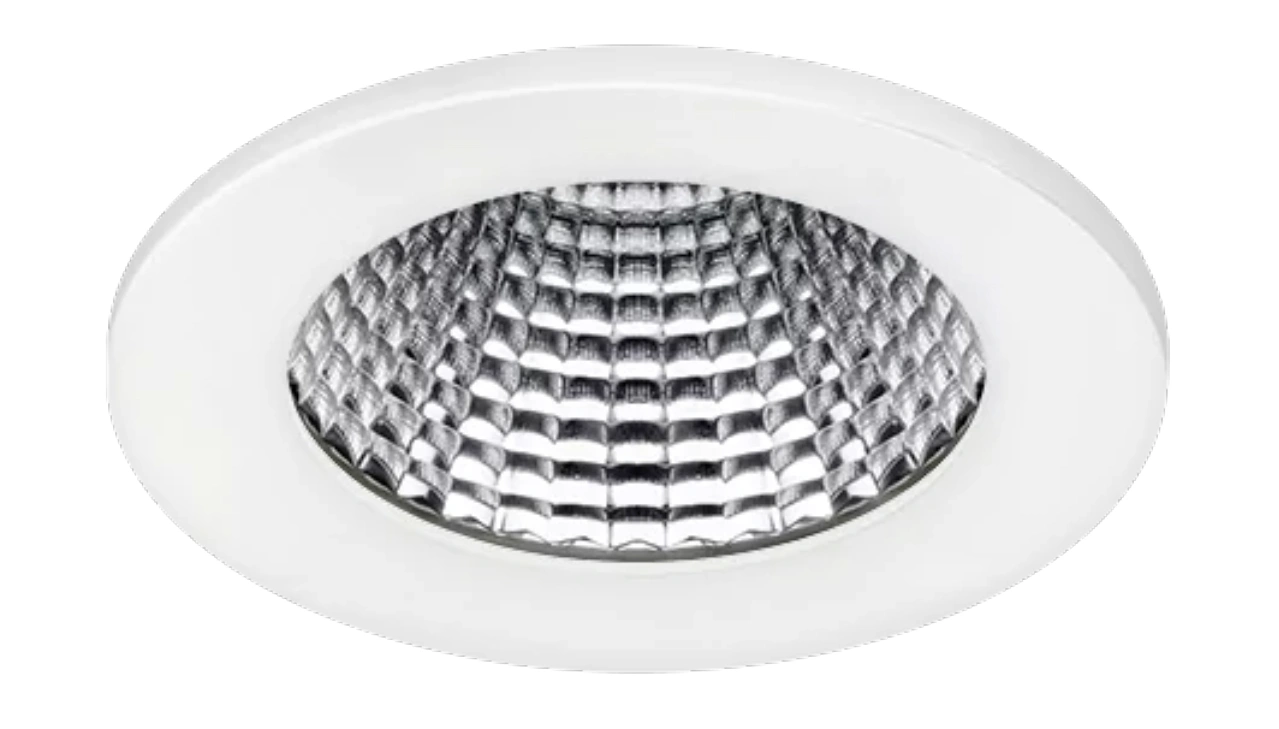

Major 130
