Product Description:

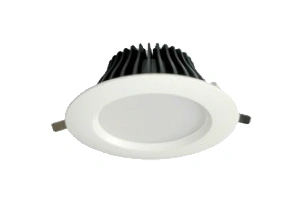

The Galactic 150 is a compact, elegantly engineering LED downlight providing aesthetic appeal and optimum efficiency in a high quality package. Cast aluminium construction ensures excellent thermal control of the latest LED technology within, which produces an output of up to 127 Ll/ cW and 2800 delivered lumens overall.
Highly efficient optics ensure maximum light transmission while simultaneously restricting glare to comfortable levels. Spring loaded side suspension arms and plug and socket remote driver reduce installation time to a minimum.
Available in a range of outputs and distributions to suit a wide variety of applications, the GALACTIC 150 is ideal for reception, general circulation and commercial areas. IP54 rated version also available for use in changing areas, wet rooms & water closets.

Product Data

Product code Curcuit Watts (w) Delivered Lumens Colour Temp Efficacy Ll/cW Em Lumens
Diamond Facet
310.900.840 8 900 4000 113 320
310.1300.840 12 1400 4000 117 320
310.1800.840 15 1800 4000 120 320
310.2700.840 22 2700 4000 123 320
Specular
311.900.840 8 900 4000 113 320
311.1400.840 12 1400 4000 117 320
311.1800.840 15 1800 4000 120 320
311.2700.840 22 2700 4000 123 320
Flush
312.1400.840 12 1400 4000 117 300
312.1900.840 15 1900 4000 127 300
312.2500.840 19 2400 4000 126 300
312.2800.840 22 2800 4000 127 300

Product Options

  • Correlated colour temp
    suffix .830
  • Correlated colour temp
    suffix .857
  • 3hr Emergency
    suffix .EM3
  • Dali
    suffix .D1
  • Emergency Dali
    suffix .EMD3
  • Emergency Self Test
    suffix .EMST3
  • Building Information
    modelling
    (Please Download from
    our website)
  • 1m LSF
    LSF. 1
  • 3m LSF
    LSF. 3
  • 5m LSF
    LSF. 5
  • 7m LSF
    LSF. 7

Features

Ingress
Protection
Ingress Protection
Flush (312)
Colour
Temperature

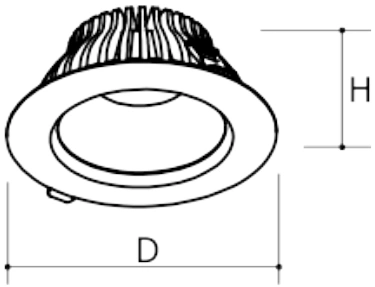

Dimensions

mm
H 58
D 148
HD - cut out 125
MCT* 22
KG** 0.7
KG(Em)*** 1.7
* Maximum Ceiling Thickness ** inc. driver *** inc. driver & em pack

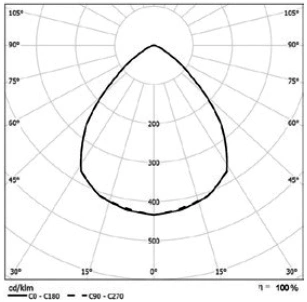

Photometric Performance

STATS:
  • GALALCTIC 150 FACETTED
  • Output - 1800
  • Watts - 15
  • LOR - 100%
  • SHR MAX - 1.3:1 (310, 311)
  • SHR MAX - 1.5:1 (312)

Led Performance

25˚ Ambient Temperature L70/B10
GALACTIC 150 90,000
‘L’ Value = % of initial Lumens maintained after specified time
‘B’ Value = % of fittings failing to meet operational expectations after specified time
