Sheldon
Product Description:

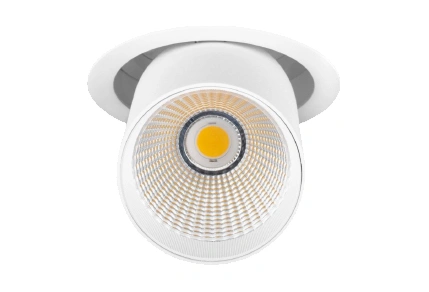

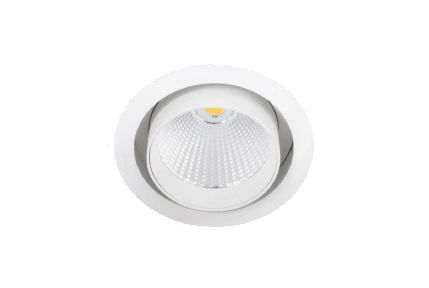

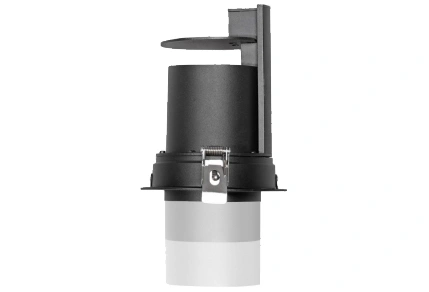

The SHELDON is a recessed, adjustable LED spotlight with an output of up to 137 Ll/cW and 3500 delivered lumens overall.

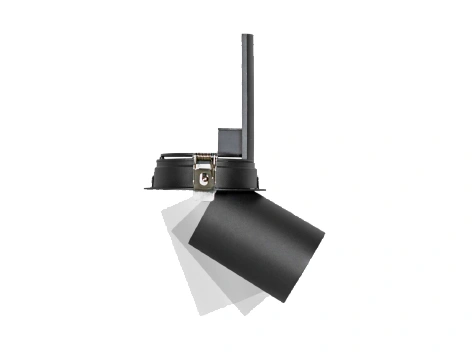

Supplied as standard with a 40° multi-faceted reflector and PMMA diffuser, it features a sleek, retractable white aluminium body with an adjustable tilt of up to 65° and 355° rotation.
With three beam angles to choose from, it offers versatility to suit any accent lighting application. Ideal for retail, restaurants, architectural, commercial and exhibition lighting.
Product Data
| Product code | Curcuit Watts (w) | Delivered Lumens | Colour Temp | Efficacy Ll/cW |
|---|---|---|---|---|
| 40° GENERAL BEAM | ||||
| 350.MF40.1920.840 | 14 | 1920 | 4000 | 137 |
| 350.MF40.2610.840 | 20 | 2610 | 4000 | 131 |
| 350.MF40.3520.840 | 27 | 3520 | 4000 | 130 |
| 350.MF40.1820.830 | 14 | 1820 | 3000 | 130 |
| 350.MF40.2270.830 | 20 | 2270 | 3000 | 114 |
| 350.MF40.3330.830 | 27 | 3330 | 3000 | 123 |
Product Options
-
Correlated colour temp
suffix .830
-
Dali
suffix .D1
-
Building Information
modelling
(Please Download from
our website) -
Multi Facet 25° Narrow Beam
.MF25 -
Multi Facet 60° Wide Beam
.MF60
-
Black Finish
suffix .B
Features
Temperature

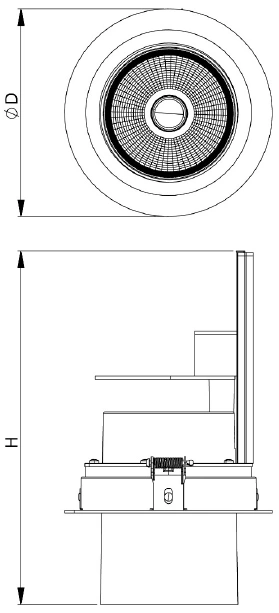

Dimensions

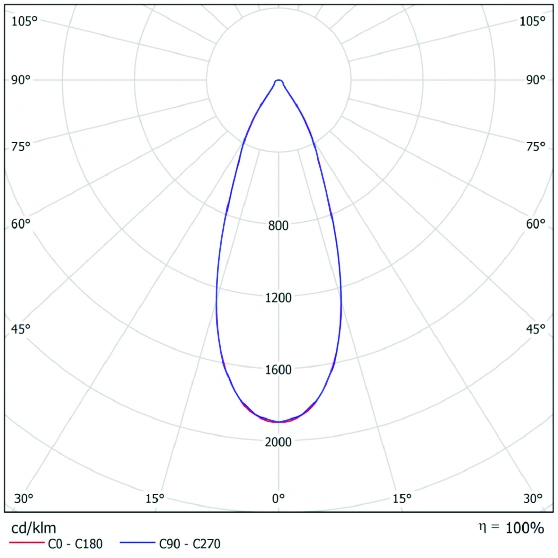

Photometric Performance
- Sheldon 130 MF40
- Output - 1820
- Watts – 13.5
- LOR – 100%
