Brixton Twin
Product Description:
The BRIXTON TWIN is a recessed adjustable gimbal downlighter with an output of up to 135 Ll/cW and 6500 delivered lumens overall.
Featuring an adjustable tilt of up to 80 degrees in any direction, the BRIXTON comes standard with a specular 40° general beam reflector. It offers three beam angle options and is available with one, two, or three gimbal housings. Built with a Tridonic SLE LED module and driver system, the BRIXTON provides exceptional versatility to meet a wide range of accent lighting needs.
The BRIXTON is ideal for retail, restaurants, architectural, commercial and exhibition lighting. Supplied in white as standard with three other options available.
Product Data
| Product code | Curcuit Watts (w) | Delivered Lumens | Colour Temp | Efficacy Ll/cW |
|---|---|---|---|---|
| GENERAL BEAM | ||||
| 362.MF40.2150.840 | 16 | 2150 | 4000 | 135 |
| 362.MF40.3600.840 | 28 | 3600 | 4000 | 129 |
| 362.MF40.4900.840 | 38 | 4900 | 4000 | 129 |
| 362.MF40.6550.840 | 56 | 6550 | 4000 | 117 |
| 362.MF40.2050.830 | 16 | 2050 | 3000 | 127 |
| 362.MF40.3450.830 | 28 | 3450 | 3000 | 124 |
| 362.MF40.4750.830 | 38 | 4750 | 3000 | 125 |
| 362.MF40.6300.830 | 56 | 6300 | 3000 | 113 |
Product Options
-
Correlated colour temp
suffix .830K
-
3hr Emergency
suffix .EM3 -
Dali
suffix .D1 -
Emergency Dali
suffix .EMD3
-
Building Information
modelling
(Please Download from
our website) -
Emergency Self Test
suffix.EMST3 -
Multi Facet 25° Narrow Beam
.MF25 -
Multi Facet 60° Wide Beam
.MF60
-
Black Finish
suffix .B -
Black Frame White
Gimbal suffix .BW -
White Frame Black
Gimbal suffix .WB
Features
Temperature

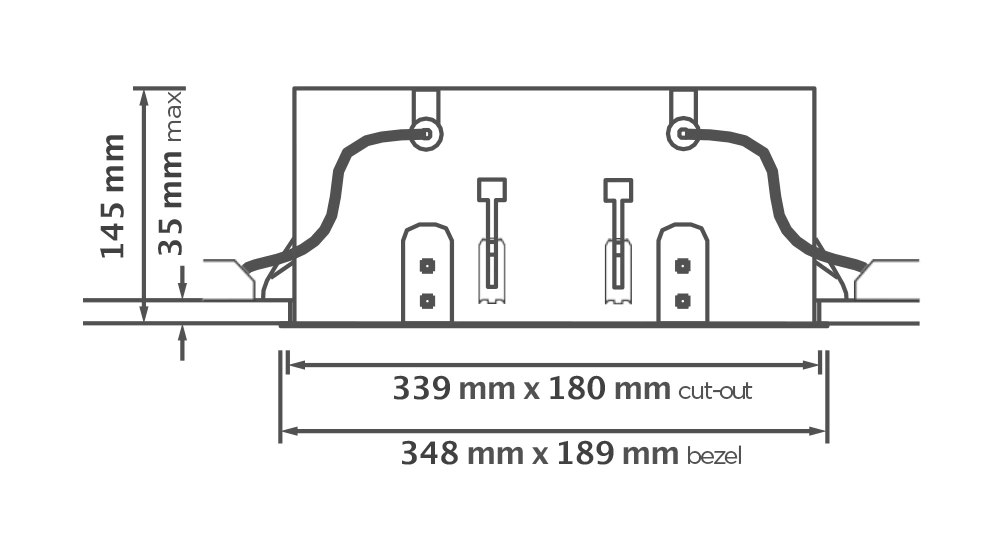

Dimensions

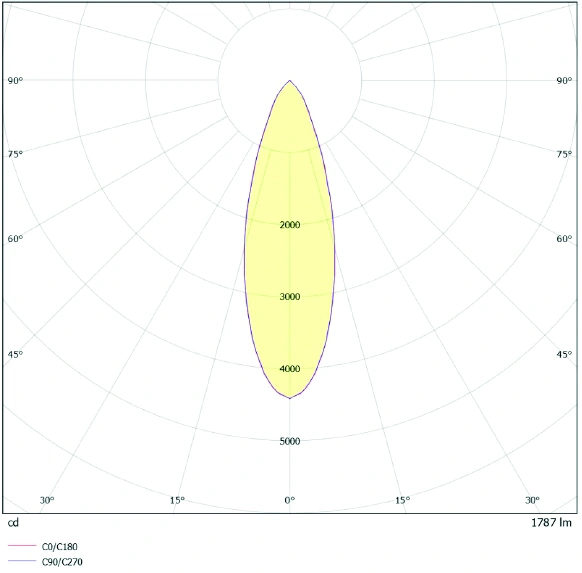

Photometric Performance
- Brixton twin head MF40
- Output – 1787lm
- Watts – 14
- LOR – 100%
Related Products
Sola
The SOLA fire-rated downlight range redefines performance and versatility in downlighting. Boasting an efficacy of up to 91 lumens per watt (Lm/W), it delivers a powerful 550 lumens overall. The…
VIEW PRODUCT
Galactic 195
The Galactic 195 is essentially the big brother of the 150. Engineered to the same exacting standards, this LEDdownlight is equally appealing and also highly efficient. Acast aluminium body again…
VIEW PRODUCT
Galactic 150
The Galactic 150 is a compact, elegantly engineering LED downlight providing aesthetic appeal and optimum efficiency in a high quality package. Cast aluminium construction ensures excellent thermal control of the…
VIEW PRODUCT

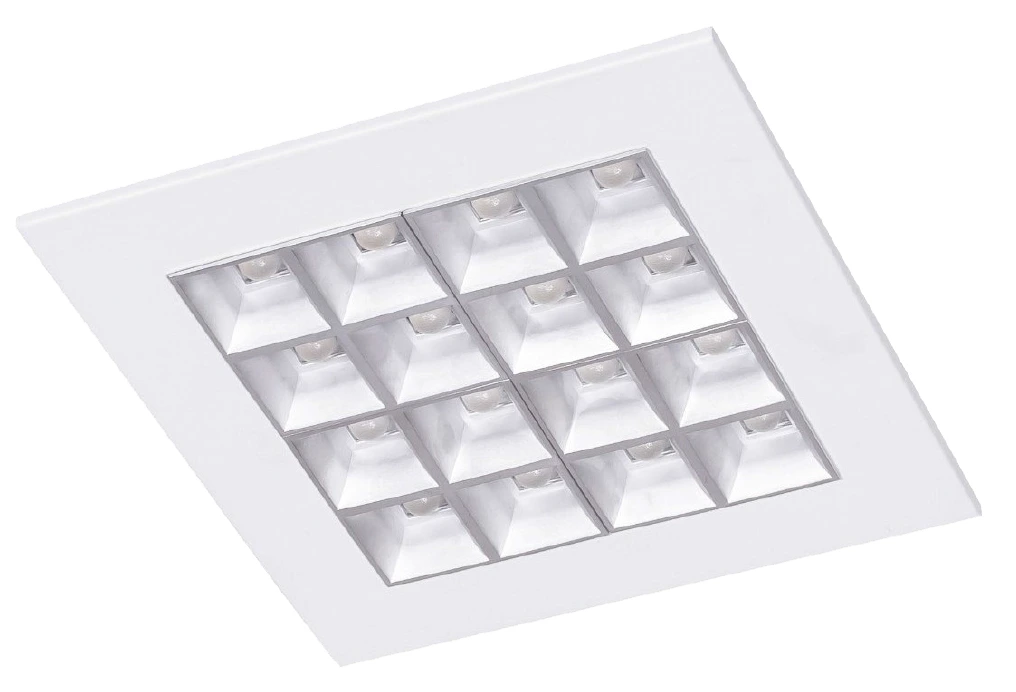

Galactic SQ
The Galactic SQ is a recessed mounted LED downlight. Engineered to the same exacting standards as the rest of the Galactic range, this LED downlight is equally appealing and also…
VIEW PRODUCT

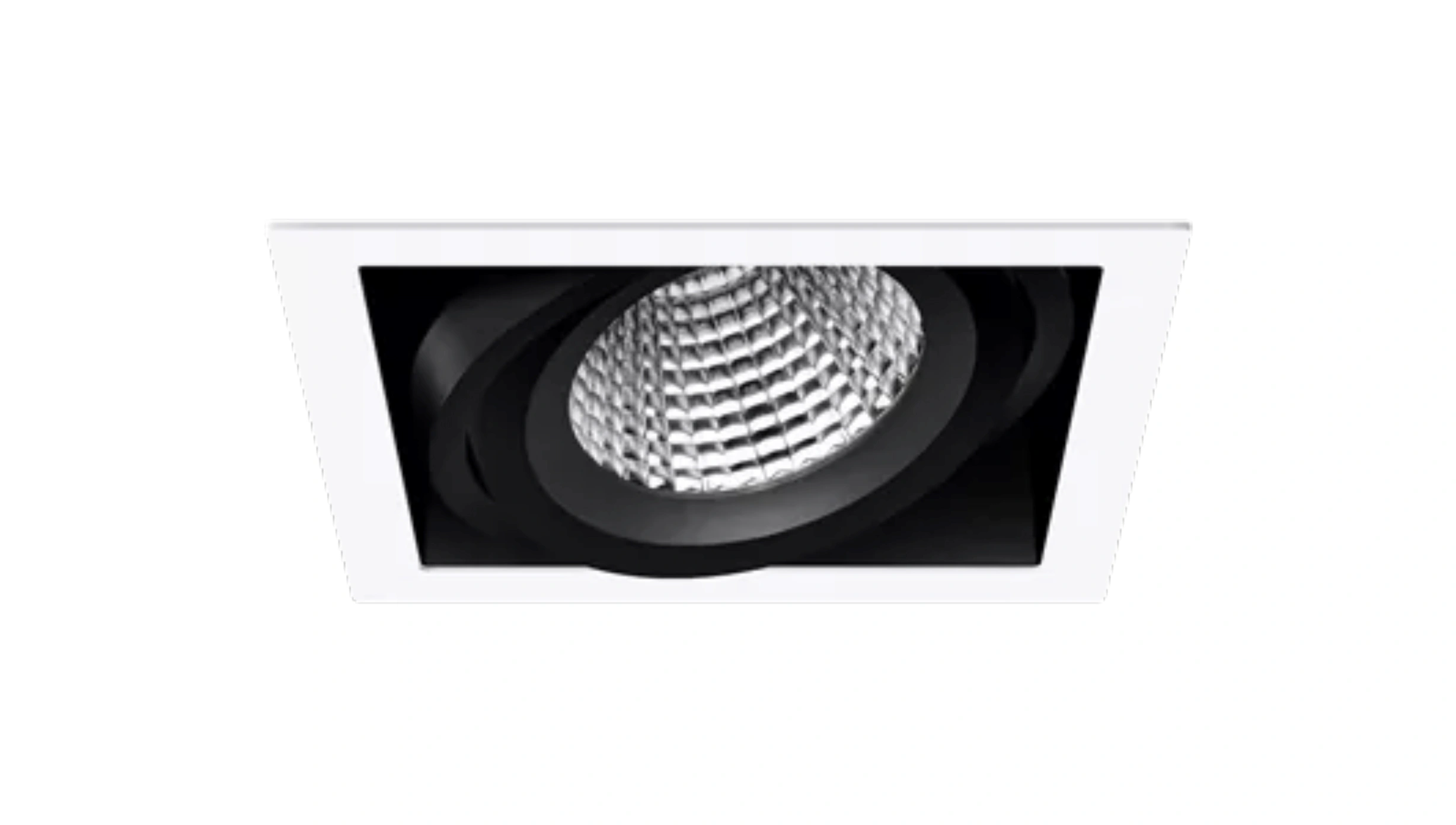

Brixton Single
