Brixton Single
Product Description:

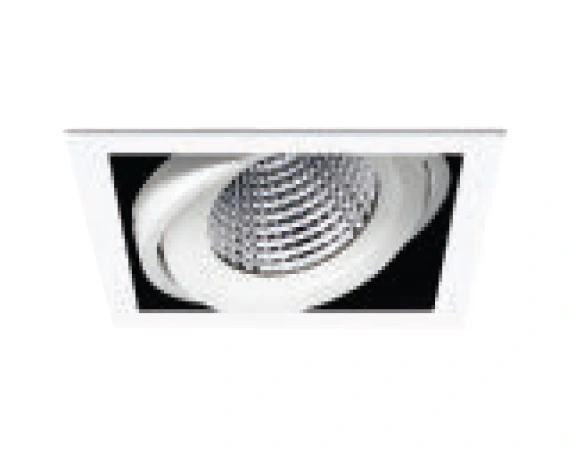

The BRIXTON SINGLE is a recessed adjustable gimbal downlighter with an output of up to 134 Ll/cW and 3200 delivered lumens overall.
Featuring an adjustable tilt of up to 80 degrees in any direction, the BRIXTON comes standard with a specular 40° general beam reflector. It offers three beam angle options and is available with one, two, or three gimbal housings. Built with a Tridonic SLE LED module and driver system, the BRIXTON provides exceptional versatility to meet a wide range of accent lighting needs.
The BRIXTON is ideal for retail, restaurants, architectural, commercial and exhibition lighting.
Supplied in white as standard with three other options available.
Product Data
| Product code | Curcuit Watts (w) | Delivered Lumens | Colour Temp | Efficacy Ll/cW |
|---|---|---|---|---|
| GENERAL BEAM | ||||
| 361.MF40.1075.840 | 8 | 1075 | 4000 | 134 |
| 361.MF40.1800.840 | 14 | 1800 | 4000 | 129 |
| 361.MF40.2450.840 | 19 | 2450 | 4000 | 129 |
| 361.MF40.3275.840 | 28 | 3275 | 4000 | 117 |
| 361.MF40.1025.830 | 8 | 1025 | 3000 | 128 |
| 361.MF40.1725.830 | 14 | 1725 | 3000 | 123 |
| 361.MF40.2375.830 | 19 | 2375 | 3000 | 125 |
| 361.MF40.3150.830 | 28 | 3150 | 3000 | 113 |
Product Options
-
Correlated colour temp
suffix .830K
-
3hr Emergency
suffix .EM3 -
Dali
suffix .D1 -
Emergency Dali
suffix .EMD3
-
Building Information
modelling
(Please Download from
our website) -
Emergency Self Test
suffix.EMST3 -
Multi Facet 25° Narrow Beam
.MF25 -
Multi Facet 60° Wide Beam
.MF60
-

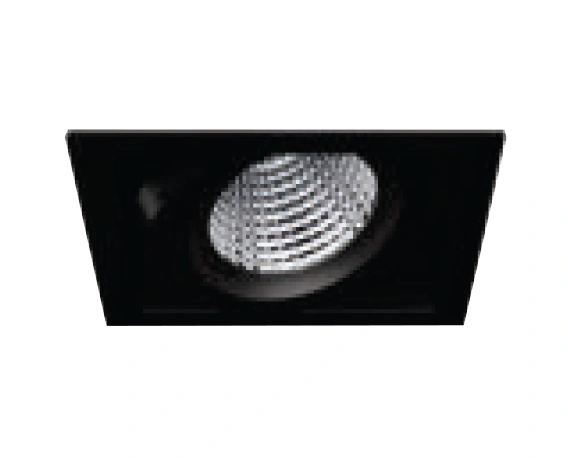

Black Finish
suffix .B -
Black Frame White
Gimbal suffix .BW -
White Frame Black
Gimbal suffix .WB
Features
Temperature

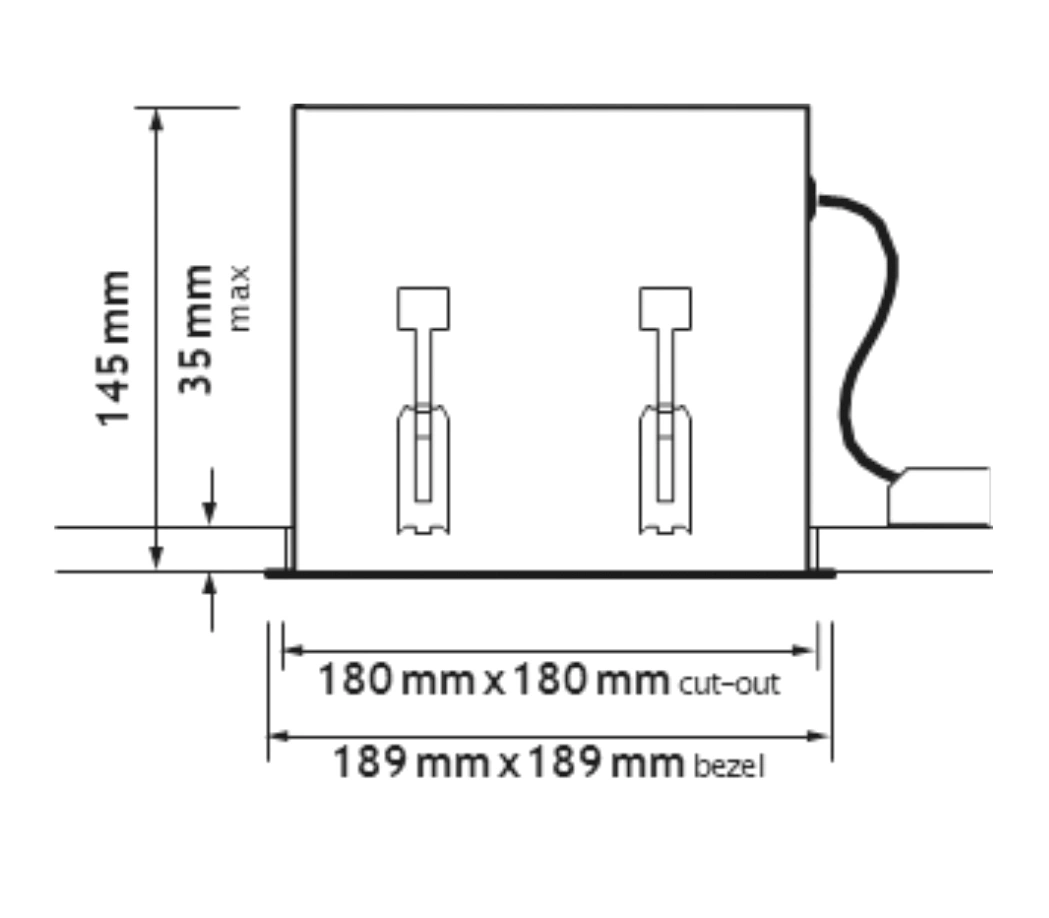

Dimensions

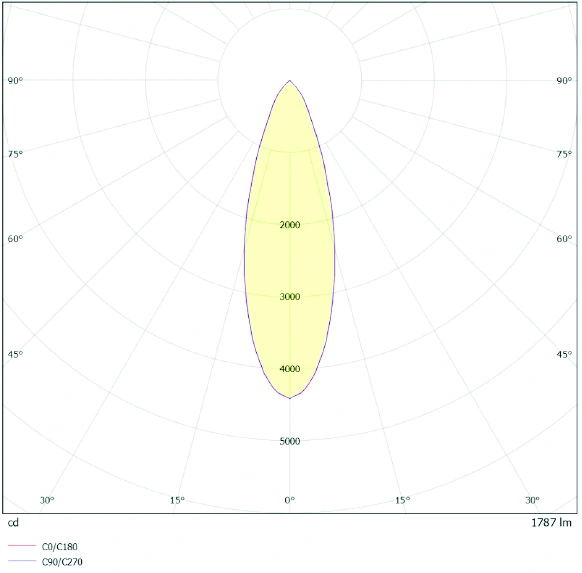

Photometric Performance
- Brixton single MF40
- Output – 1787lm
- Watts – 14
- LOR – 100%
