Zenith
Product Description:
Redefining efficiency and versatility in LED lighting, the ZENITH downlight harnesses modern LED technology to deliver exceptional light quality and longevity while remaining affordable. Compatible with existing infrastructure, it’s ideal for both new and retrofit projects. Advanced COB technology ensures optimal light distribution and high efficiency of up to 149 lm/W.
Constructed from diecast aluminium epoxy powder coated. Finished with a glass front and a white (RAL 9003) trim.
Its slim design facilitates easy installation in shallow ceilings, and is ideal for reception, general circulation and commercial areas.
Option of unique optics offering a UGR<19 making the ZENITH ideal for use in classrooms and offices.
Product Data
| Product code | Curcuit Watts (w) | Delivered Lumens | Colour Temp | Efficacy Ll/cW | Beam Angle º | Diameter A (mm) |
|---|---|---|---|---|---|---|
| CLEAR | ||||||
| 335.1630.145.840 | 11 | 1630 | 4000k | 148 | 24 | 145 |
| 335.2270.145.840 | 17 | 2270 | 4000k | 134 | 24 | 145 |
| 335.3050.145.840 | 24 | 3050 | 4000k | 127 | 24 | 145 |
| 335.1680.196.840 | 11 | 1680 | 4000k | 153 | 30 | 196 |
| 335.2330.196.840 | 17 | 2330 | 4000k | 137 | 30 | 196 |
| 335.3140.196.840 | 24 | 3140 | 4000k | 131 | 30 | 196 |
| 335.3060.242.840 | 23 | 3060 | 4000k | 133 | 74 | 242 |
| 335.4420.242.840 | 36 | 4420 | 4000k | 123 | 74 | 242 |
| 335.5620.242.840 | 49 | 5620 | 4000k | 115 | 74 | 242 |
| DIFFUSED | ||||||
| 336.1460.145.840 | 11 | 1460 | 4000k | 133 | 50 | 145 |
| 336.2030.145.840 | 17 | 2030 | 4000k | 119 | 50 | 145 |
| 336.2740.145.840 | 24 | 2740 | 4000k | 114 | 50 | 145 |
| 336.1530.196.840 | 11 | 1530 | 4000k | 139 | 78 | 196 |
| 336.2130.196.840 | 17 | 2130 | 4000k | 125 | 78 | 196 |
| 336.2880.196.840 | 24 | 2880 | 4000k | 120 | 78 | 196 |
| 336.2870.242.840 | 23 | 2870 | 4000k | 125 | 82 | 242 |
| 336.4140.242.840 | 36 | 4140 | 4000k | 115 | 82 | 242 |
| 336.5270.242.840 | 49 | 5270 | 4000k | 108 | 82 | 242 |
| LOW UGR | ||||||
| 337.1580.196.840 | 11 | 1580 | 4000K | 144 | 17 | 196 |
| 337.2870.242.840 | 23 | 2870 | 4000K | 125 | 23 | 242 |
Product Options
-
Correlated colour temp
suffix .830 -
Correlated colour temp
suffix .850
NOT available on UGR option
-
3hr Emergency
suffix .EM3 -
Emergency Self Test
suffix.EMST3
-
Dali
suffix .D1 -
Emergency Dali
suffix .EMD3
-
Building Information
modelling
(Please Download from
our website)
Features
front
Protection
Temperature

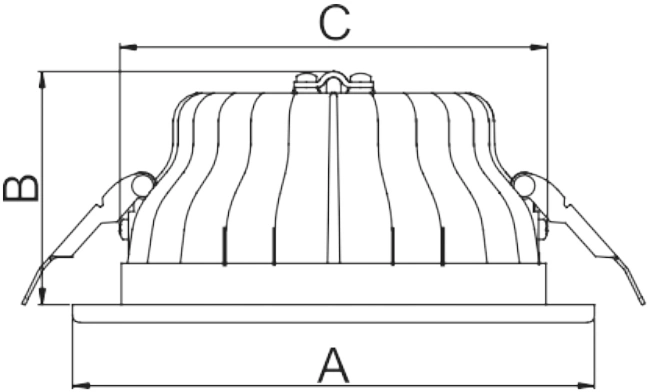

Dimensions
Photometric Performance
- 335.2330.196.840
- Output – 2330
- Watts – 17
- LOR -100%
- 336.2130.196.840
- Output – 2130
- Watts – 17
- LOR -100%
- 337.2870.242.840
- Output – 2870
- Watts – 23
- LOR -100%
