Galactic SQ
Product Description:
The Galactic SQ is a recessed mounted LED downlight. Engineered to the same exacting standards as the rest of the Galactic range, this LED downlight is equally appealing and also highly efficient. Constructed with a steel body ensures excellent thermal control of the latest LED technology, which produces an impressive output of up to 161 Ll/cW and 3800 delivered lumens overall.
Maximum light transmission is achieved through the highly efficient double parabolic reflector with lenses, offering excellent low glare properties.
Available in two sizes and a range of outputs to suit a wide variety of applications, the GALACTIC SQ is ideal for reception, general circulation and commercial areas.
Product Data
| Product code | Curcuit Watts (w) | Delivered Lumens | Colour Temp | Efficacy Ll/cW | Dimension (mm sq) |
|---|---|---|---|---|---|
| 315.130.850.840 | 6 | 850 | 4000 | 142 | 130 |
| 315.130.1150.840 | 8 | 1150 | 4000 | 144 | 130 |
| 315.230.2300.840 | 16 | 2300 | 4000 | 144 | 230 |
| 315.230.2900.840 | 18 | 2900 | 4000 | 161 | 230 |
| 315.230.3800.840 | 26 | 3800 | 4000 | 146 | 230 |
| 315.130.850.830 | 6 | 850 | 3000 | 142 | 130 |
| 315.130.1150.830 | 8 | 1150 | 3000 | 144 | 130 |
| 315.230.2300.830 | 16 | 2300 | 3000 | 144 | 230 |
| 315.230.2900.830 | 18 | 2900 | 3000 | 161 | 230 |
| 315.230.3800.830 | 26 | 3800 | 3000 | 146 | 230 |
Product Options
-
Correlated colour temp
suffix .830
-
3hr Emergency
suffix .EM3 -
Dali
suffix .D1 -
Emergency Dali
suffix .EMD3
-

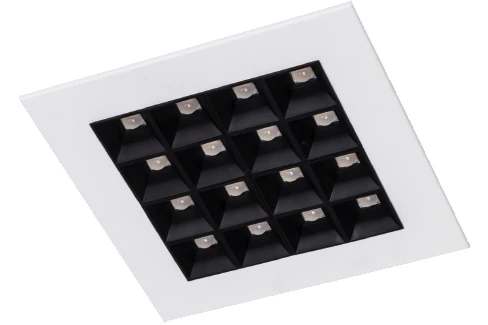

Black Reflector
suffix .B
Features
Temperature

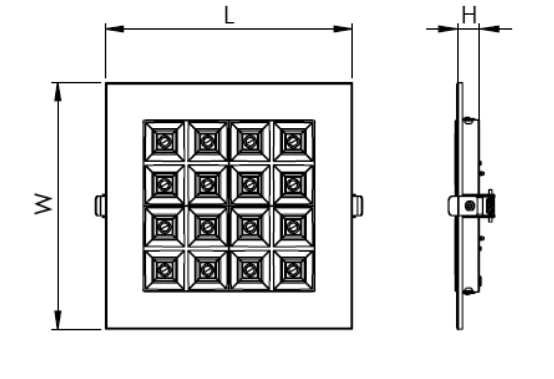

Dimensions
Photometric Performance
- Galactic Square
- Output - 3777
- Watts – 25.6
- LOR - 100%
