Product Description:

The STADIA, a high-power LED floodlight delivering exceptional brightness and durability for demanding outdoor applications. Its direct light distribution illuminate large areas in industrial facilities, sports complexes, transport terminals, and airports. There are a wide choice of lenses for optimal beam control ensuring total light control. Up to 221k lumen output can be achievedutilising the LS60 lens.
The STADIA boasts superior performance with a long-lasting lifespan of 135,000 hours (L80B10) and exceptional colour consistency (SDCM 3) for a visually pleasing experience. It adapts to various climates with a wide operating temperature range, from -40°C to +40°C (single LED module) or -40°C to +50°C (two or three LED modules).
Built to last, the STADIA features a robust aluminium housing (finished in RAL 7043 dark grey) and a tempered glass diffuser, offering superior impact resistance (IK08) and protection against dust and water ingress (IP66).
The STADIA is the perfect solution for large-scale outdoor lighting applications in industrial, sporting, and transportation environments. Its exceptional performance, long lifespan, and robust construction ensure reliable and efficient illumination.

Product Data

Product code Curcuit Watts (w) Delivered Lumens Colour Temp Efficacy Ll/cW Dimension (mm sq)
701.LSA1.45900.740 336 45900 4000 137 165 x 640 x 320
701.LSA1.51500.740 383 51500 4000 134 165 x 640 x 320
701.LSA1.62500.740 488 62500 4000 128 165 x 640 x 320
702.LSA1.91800.740 671 91800 4000 137 300 x 750 x 580
702.LSA1.103000.740 766 103000 4000 134 300 x 750 x 580
702.LSA1.125000.740 977 125000 4000 128 300 x 750 x 580
703.LSA1.137700.740 1007 137700 4000 137 900 x 464 x 637
703.LSA1.154400.740 1149 154400 4000 134 900 x 464 x 637
703.LSA1.187500.740 1465 187500 4000 128 900 x 464 x 637

Product Options

  • Asymmetric beam SA1
    .LSA1
  • Asymmetric beam SA2
    .LSA2
  • Asymmetric beam SM1
    .LSM1
  • 30° beam angle
    .LS30
  • 45° beam angle
    .LS45
  • 45° beam angle
    .LS45
  • 90° beam angle
    .LS90
  • Dali
    suffix .D1
  • Building Information
    modelling
    (Please Download from
    our website)

Features

Ingress
Protection
Colour
Temperature
Impact
Protection
Grey
RAL 7043

Dimensions

mmmmmm
A B C
H 165 300 900
W 640 750 464
L 320 580 637
KG 15.7 34.5 3.6

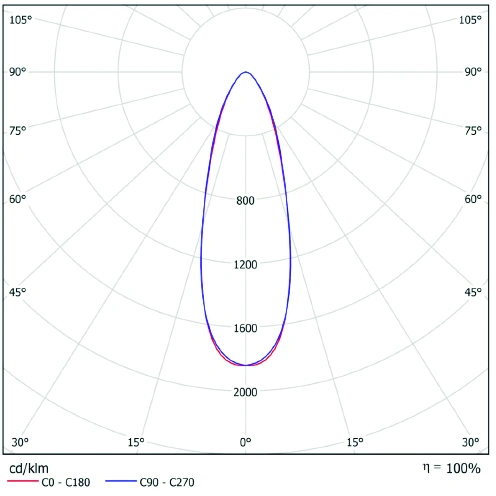

Photometric Performance

  • STADIA
  • Output – 156167
  • Watts – 1006.5
  • LOR -100%

Led Performance

25˚ Ambient Temperature L90/B10
STADIA 100,000
‘L’ Value = % of initial Lumens maintained after specified time
‘B’ Value = % of fittings failing to meet operational expectations after specified time
