Product Description:

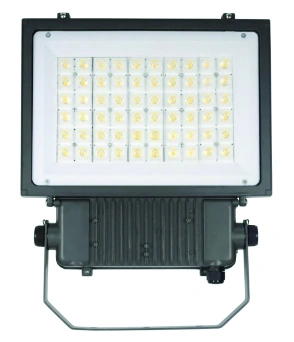

The STELLA is a surface-mounted LED floodlight designed to deliver exceptional performance and durability in various outdoor applications. Its direct light distribution offered with a wide choice of lenses for optimal beam control ensures efficient illumination. Suitable for industrial environments, sports facilities, facade lighting, parking areas, parks, public spaces, and even streets.
The STELLA boasts a robust build with a tempered glass diffuser, offering superior light transmittance while withstanding harsh outdoor conditions (IP66, IK08, -40°C to +40°C for some models). The aluminium housing guarantees long-lasting performance and excellent heat dissipation, while the dark grey finish (RAL 7043) provides a sleek and professional aesthetic.
Installation is effortless. Mount the STELLA onto a horizontal or vertical surface using the convenient push-in terminal (3x2x2.5mm²). Additionally, the STELLA offers a long-lasting LED lifetime of 100,000 hours (L90B10) and maintains high colour consistency (SDCM 5) for a visually pleasing lighting experience.
The STELLA is the ideal solution for diverse outdoor lighting needs, offering a powerful combination of efficiency, durability, and ease of use.

Product Data

Product code Curcuit Watts (w) Delivered Lumens Colour Temp Efficacy Ll/cW Dimension (mm sq)
700.LSA1.4500.740 28 4500 4000 161 291 x 230 x 58
700.LSA1.8000.740 51 8000 4000 157 291 x 230 x 58
700.LSA1.10000.740 65 10000 4000 154 291 x 230 x 58
700.LSA1.10500.740 67 10500 4000 157 338 x 280 x 59
700.LSA1.13000.740 88 13000 4000 148 338 x 280 x 59
700.LSA1.16600.740 100 16600 4000 166 381 x 312 x 62
700.LSA1.19500.740 130 19500 4000 150 381 x 312 x 62
700.LSA1.22000.740 153 22000 4000 144 381 x 312 x 62
700.LSA1.19600.740 125 19600 4000 157 444 x 353 x 66
700.LSA1.24200.740 162 24200 4000 149 444 x 353 x 66
700.LSA1.31300.740 198 31300 4000 158 515 x 420 x 87
700.LSA1.36700.740 235 36700 4000 156 565 x 460 x 100
700.LSA1.40800.740 270 40800 4000 151 565 x 460 x 100
700.LSA1.48000.740 322 48000 4000 149 565 x 460 x 100

Product Options

  • Correlated colour temp
    suffix .830
  • Correlated colour temp
    suffix .850
  • Asymmetric beam SA1
    .LSA1
  • Asymmetric beam SA2
    .LSA2
  • Asymmetric beam SM1
    .LSM1
  • Asymmetric beam SM2
    .LSM2
  • Asymmetric beam SS1
    .LSS1
  • Asymmetric beam SS2
    .LSS2
  • 20° beam angle
    .LS20
  • 30° beam angle
    .LS30
  • 45° beam angle
    .LS45
  • 60° beam angle
    .LS60
  • 90° beam angle
    .LS90
  • Building Information
    modelling
    (Please Download from
    our website)
  • Dali
    suffix .D1

Features

Ingress
Protection
Colour
Temperature
Impact
Protection
Grey
RAL 7043

Dimensions

mmmmmmmmmmmm
L 291 338 381 444 515 565
W 230 280 312 353 420 460
H 58 59 62 66 87 100
KG 1.9 2.8 3.6 5 7.6 10.5

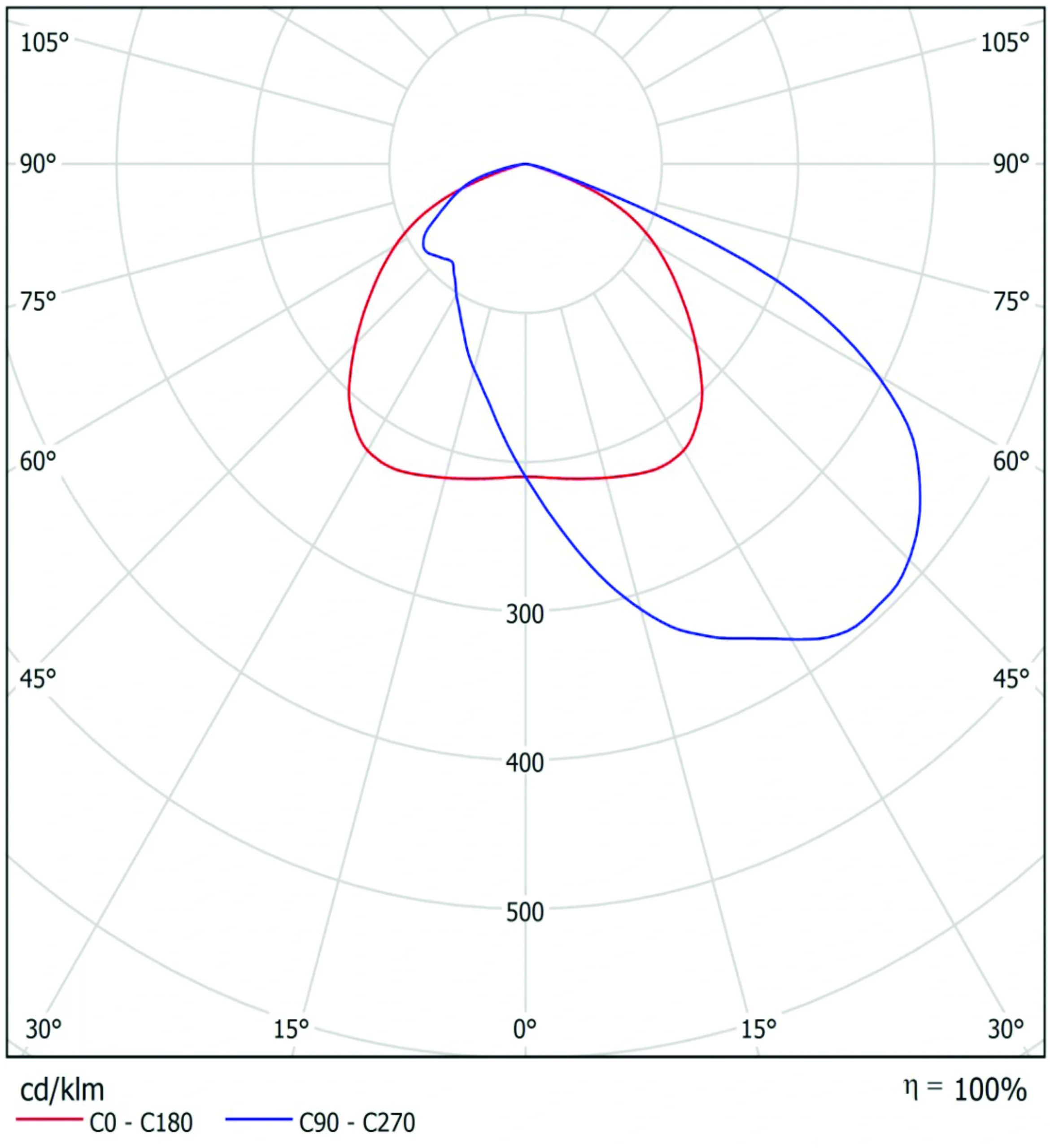

Photometric Performance

  • STELLA LSA1
  • Output – 4518
  • Watts – 28.4
  • LOR -100%

Led Performance

25˚ Ambient Temperature L90/B10
STELLA 100,000
‘L’ Value = % of initial Lumens maintained after specified time
‘B’ Value = % of fittings failing to meet operational expectations after specified time
