Arena Sports
Product Description:
The Arena Sports Flood has been designed to utilise the very latest in high efficiency Samsung LED chip technology and has an impressive output of 130Ll/cW and 175000 delivered lumens overall.
Construction is from a precision one-part Die cast housing for optimum thermal performance, output is controlled and directed with Alanod ™ MIRO-Silver Reflector designed to maximise lumen efficiencies and put light where it’s needed.
The Arena Sports Flood is a high performing Multi-Die LEDs flood for direct replacement of 1 KW and 2KW floodlights and is flicker-Free, Suitable for slow motion & HDTV.
Product Data
| Product code | Curcuit Watts (w) | Delivered Lumens | Colour Temp | Efficacy Ll/cW | Distribution |
|---|---|---|---|---|---|
| 705.85000.840 | 580 | 85000 | 4000 | 147 | Narrow |
| 705.118000.840 | 900 | 118000 | 4000 | 131 | Narrow |
| 705.118000.840 | 810 | 118000 | 4000 | 146 | Narrow |
| 705.175000.840 | 1350 | 175000 | 4000 | 130 | Narrow |
| 706.187000.840 | 1350 | 187000 | 4000 | 139 | Wide |
| 706.90000.840 | 580 | 90000 | 4000 | 155 | Wide |
| 706.125000.840 | 900 | 125000 | 4000 | 139 | Wide |
| 706.125000.840 | 810 | 125000 | 4000 | 154 | Wide |
| 706.187000.840 | 1350 | 187000 | 4000 | 139 | Wide |
Features
Protection
Temperature
Protection

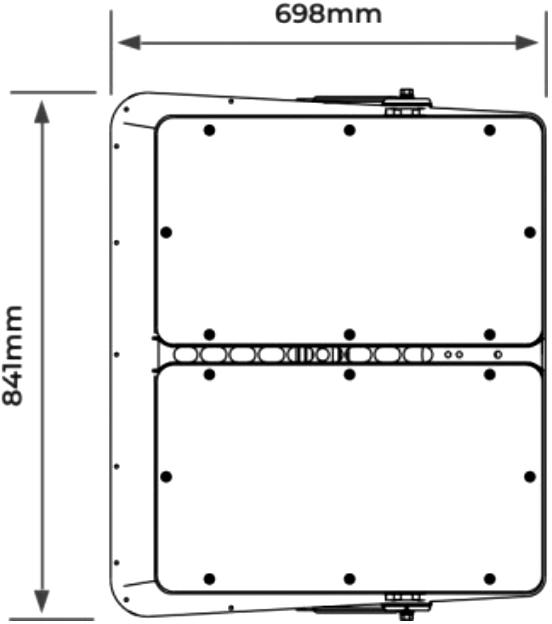

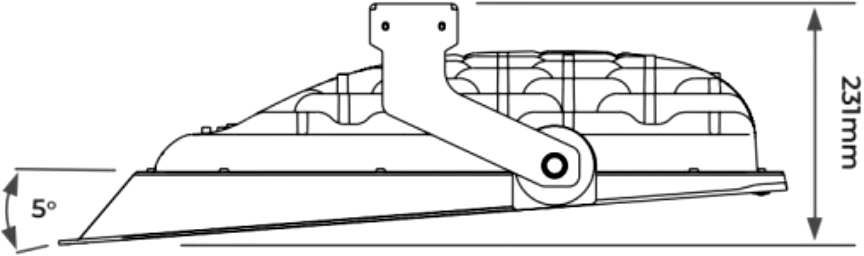

Flood Dimensions

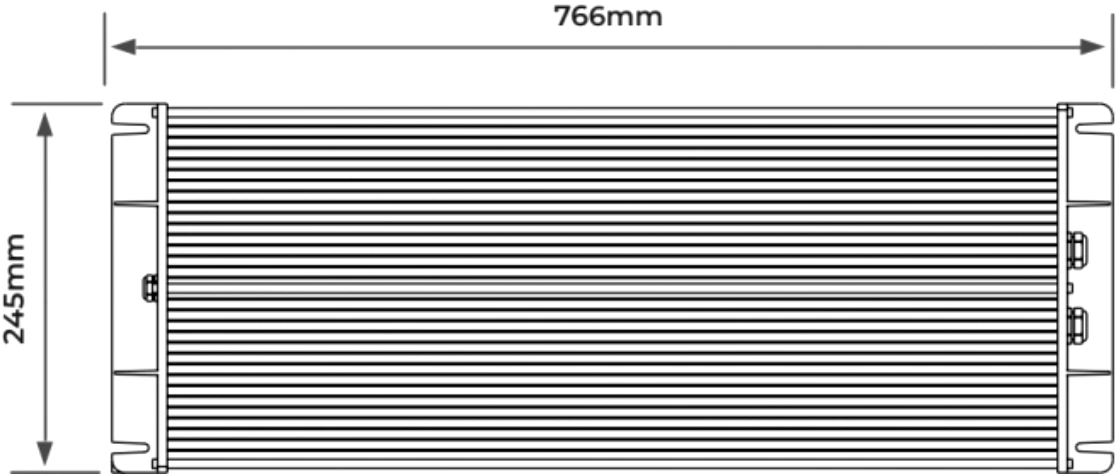

Driver Box Dimensions
Photometric Performance
- 705.175000.840
- Output - 175000
- Watts - 1350W
- LOR - 100%
- 706.187000.840
- Output - 187000
- Watts - 1350W
- LOR - 100%
