Bentley
Product Description:
The BENTLEY range of LED floodlights are not only aesthetically pleasing, but also capable of lighting anything from footpaths to service roads. With three sizes and lumen outputs up to 33400 delivered lumens and efficacy at up to 127 Ll/cW with a variety of distributions available. There’s an option for every application.
The body and front frame are constructed from high quality die cast aluminium, finished in textured black powdercoat (RAL9005) over a chromate conversion then sealed to IP65 during final assembly.
Mounts with two-piece bracket, yoke, adjustable slipfitter with angle indicators, BENTLEY arm, 60mm diameter mounting arm adapter or Simple Fit wall bracket.
Product Data
| Product code | Distribution | Circuit Watts (w) | Delivered Lumens | Efficacy Ll/cW | Dimension (mm sq) |
|---|---|---|---|---|---|
| 720.2900.840 | Forward Throw | 25 | 2900 | 116 | 299 x 240 x 92 |
| 720.4800.840 | Forward Throw | 41 | 4800 | 118 | 299 x 240 x 92 |
| 721.10100.840 | Wide | 84 | 10100 | 120 | 299 x 240 x 92 |
| 721.14600.840 | Wide | 121 | 14600 | 121 | 299 x 240 x 92 |
| 722.10100.840 | General | 84 | 10100 | 120 | 299 x 240 x 92 |
| 722.14600.840 | General | 121 | 14600 | 121 | 299 x 240 x 92 |
| 723.10600.840 | Forward Throw | 84 | 10600 | 126 | 299 x 240 x 92 |
| 723.15300.840 | Forward Throw | 121 | 15300 | 127 | 299 x 240 x 92 |
| 724.20800.840 | Wide | 179 | 20800 | 116 | 559 x 400 x 102 |
| 724.31900.840 | Wide | 275 | 31900 | 116 | 559 x 400 x 102 |
| 725.20800.840 | General | 179 | 20800 | 116 | 559 x 400 x 102 |
| 725.31900.840 | General | 275 | 31900 | 116 | 559 x 400 x 102 |
| 726.21800.840 | Forward Throw | 179 | 21800 | 121 | 559 x 400 x 102 |
| 726.33400.840 | Forward Throw | 275 | 33400 | 121 | 559 x 400 x 102 |
Product Options
-
Correlated colour temp
suffix .830
-
Correlated colour temp
suffix .850
-
Photocell
suffix .S6
Features
Protection
Temperature
cable

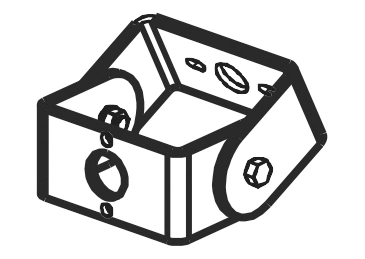

ADJUSTABLE YOKE
MS1 – All Bentley Range
MOUNTING ARM ADAPTOR
MS2 – All Bentley Range
ADJUSTABLE SPIGOT
MS3 – All Bentley Range
MOUNTING ARM
MS4 – Large Bentley Versions
MS5 – Small & Mini Bentley Versions
WALL BRACKET
MS6 – Small & Mini Bentley Versions
MOUNTING YOKE
MS7 – Large Bentley Versions
MS8 – Small Bentley Version
MS9 – Mini Bentley Version
Dimensions

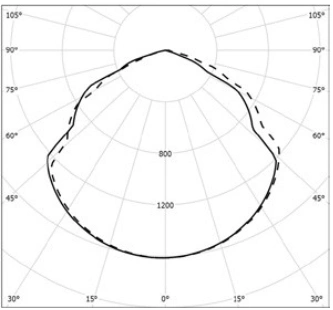

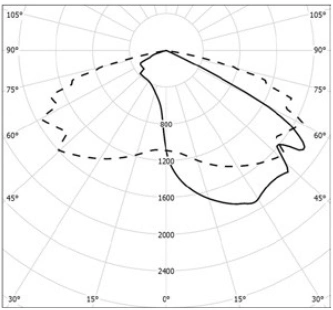

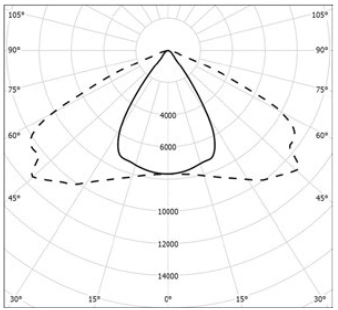

Photometric Performance
- Forward Throw
- Output - 33400
- 275w
- LOR - 100%
- Wide
- General
Related Products
Stadia
The STADIA, a high-power LED floodlight delivering exceptional brightness and durability for demanding outdoor applications. Its direct light distribution illuminate large areas in industrial facilities, sports complexes, transport terminals, and…
VIEW PRODUCT
Stella
The STELLA is a surface-mounted LED floodlight designed to deliver exceptional performance and durability in various outdoor applications. Its direct light distribution offered with a wide choice of lenses for…
VIEW PRODUCT

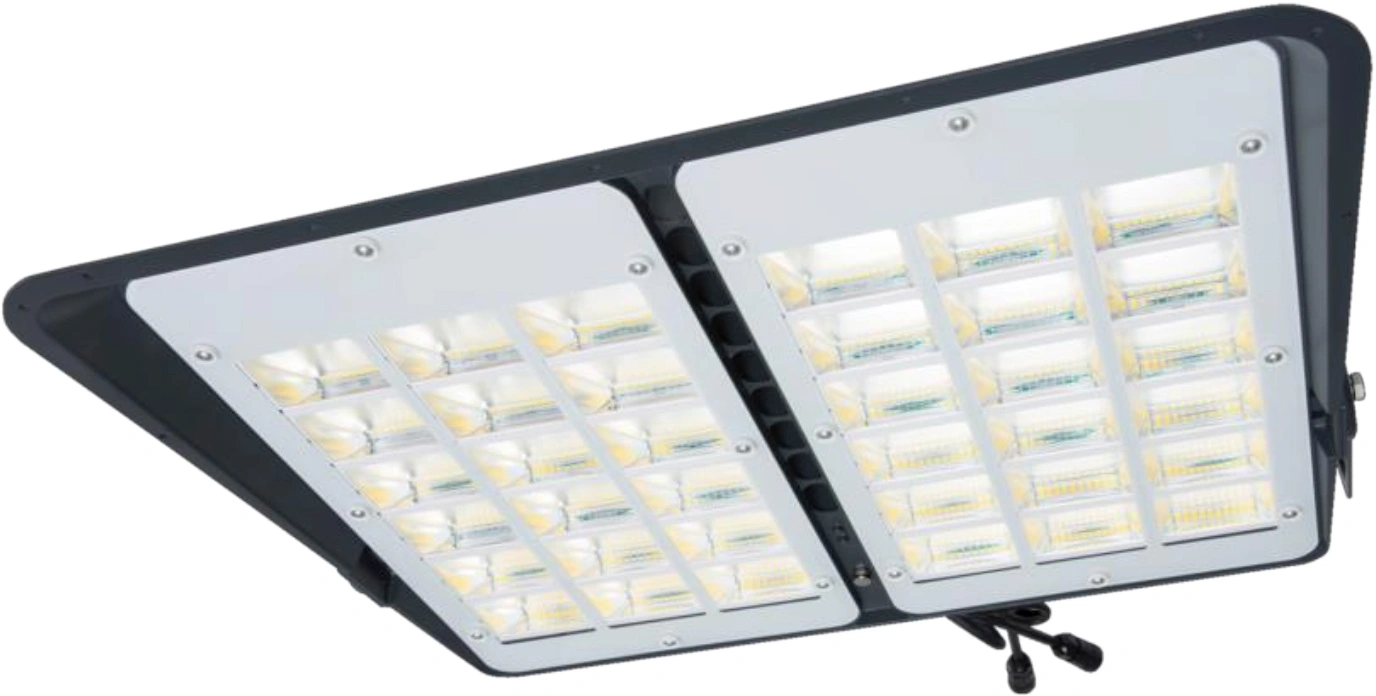

Arena Sports
