Liberty 2 Sports
Product Description:
The LIBERTY 2 Sports has been designed to utilise the latest in high efficiency Samsung LED chip technology and has an impressive output of up to 153 Ll/cW and 12800 delivered lumens overall.
Construction is from extruded aluminium forming a shallow robust housing, output is controlled and directed with micro prismatic optics designed to maximise lumen efficiencies and put light where it’s needed. DALI control gear is also available as an option.

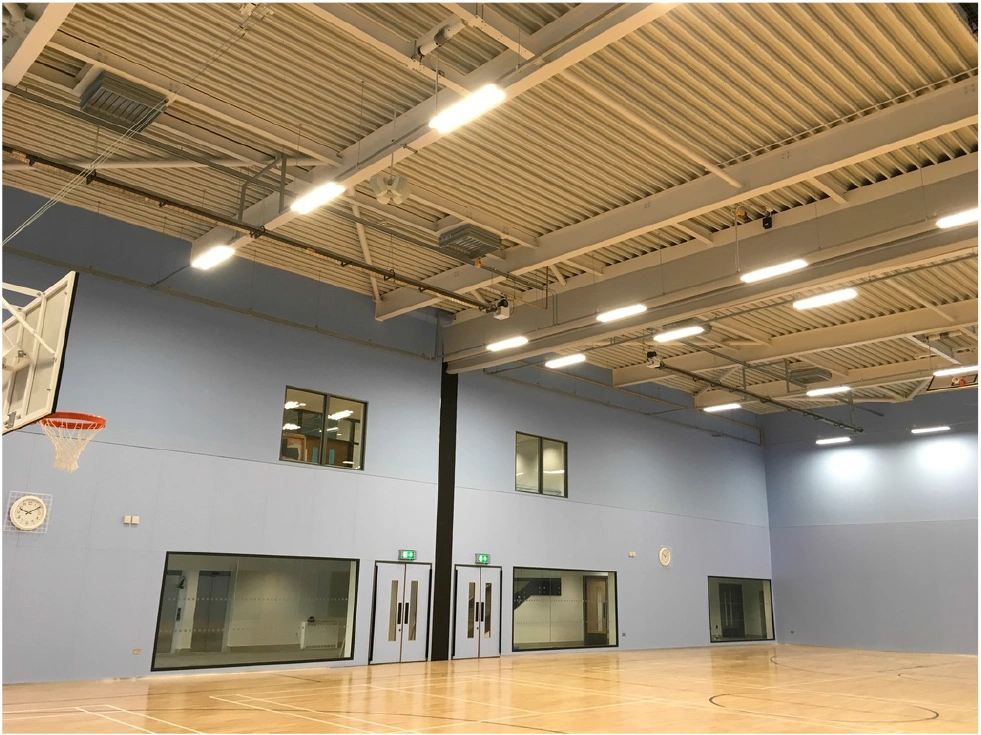

The LIBERTY 2 Sports is designed specifically for sports hall installations. Project specific, a UGR of<22 is achievable and compliant with the ball test in DIN 57710 part 13, the luminaire features robust fixing brackets and a 1m flex to ensure ease of installation
Product Data
| Product code | Current Watts (w) | Delivered Lumens | Colour Temp | Efficacy Ll/cW | Em Lumens |
|---|---|---|---|---|---|
| 513.5400.840 | 36 | 5400 | 4000 | 150 | 580 |
| 513.6300.840 | 41 | 6300 | 4000 | 153 | 580 |
| 513.8000.840 | 53 | 8000 | 4000 | 151 | 580 |
| 513.9500.840 | 65 | 9500 | 4000 | 147 | 580 |
| 13.10900.840 | 77 | 10900 | 4000 | 142 | 580 |
| 513.12800.840 | 96 | 12800 | 4000 | 134 | 580 |
Product Options
-
Correlated colour temp
suffix .830 -
Correlated colour temp
suffix .857 -
Correlated colour temp
suffix .TW
-
3hr Emergency
suffix .EM3 -
Dali
suffix .D1 -
Emergency Dali
suffix .EMD3 -
Emergency Self Test
suffix .EMST3
-
PIR Occupancy
Detection & Daylight
Dimming
suffix .S1 -
PIR Occupancy
Detection & Daylight
Dimming
suffix .S2 -
Wireless
suffix .S5
-
3m LSF
LSF. 3 -
5m LSF
LSF. 5 -
7m LSF
LSF. 7
Features
Temperature
LSF. 1
Protection
MS25 + MO24

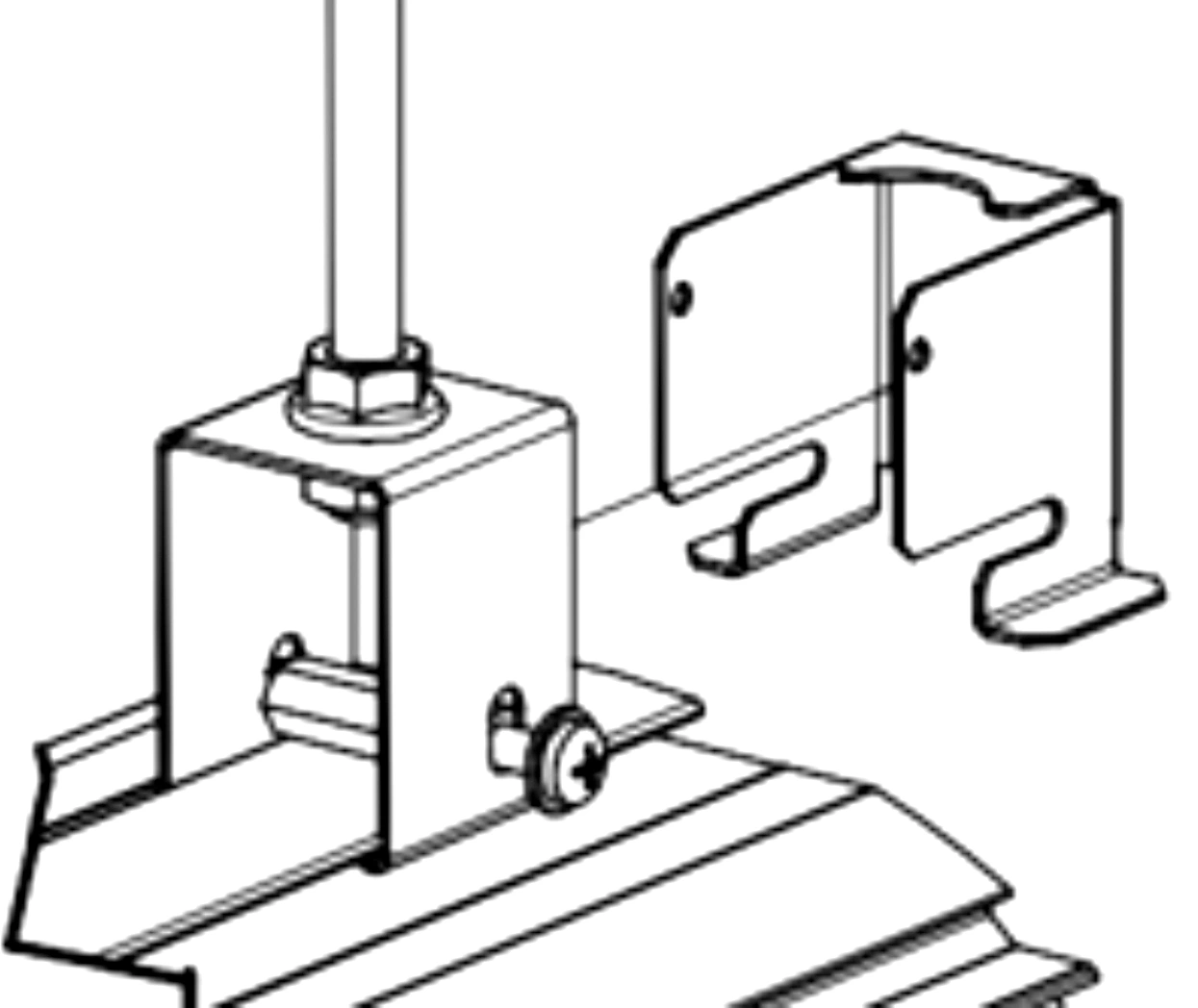

Sports Hall Suspension Kit

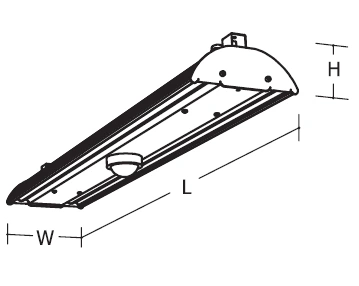

Dimensions

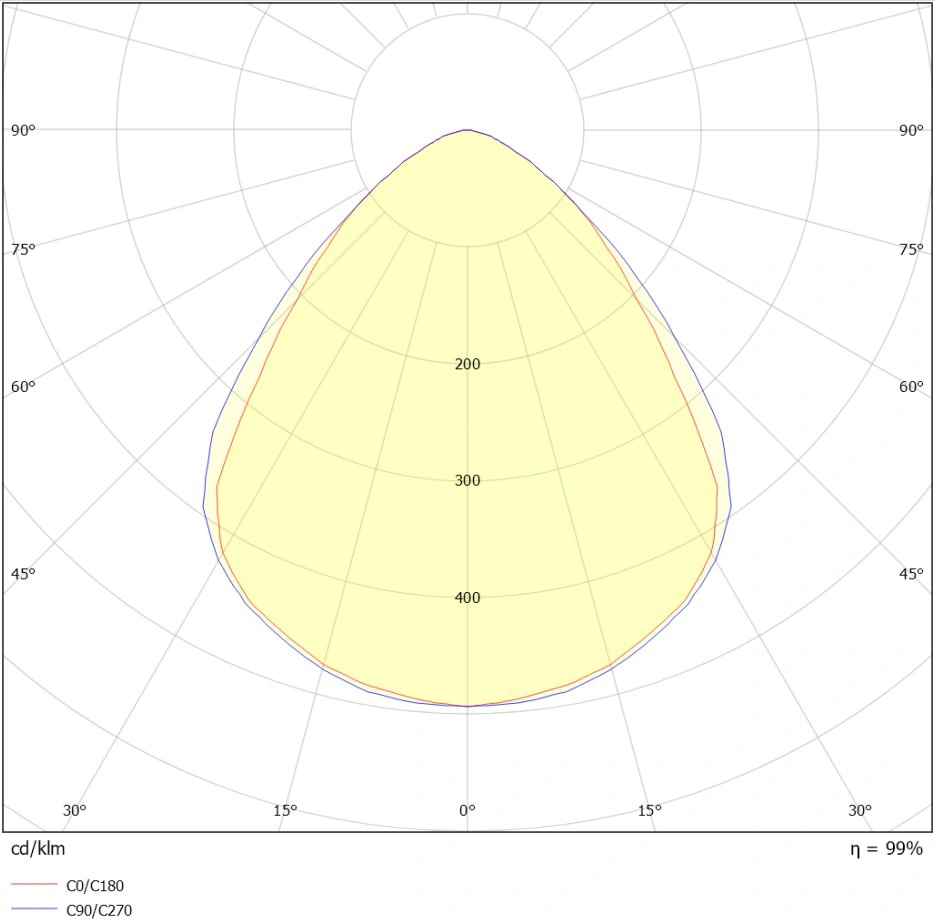

Photometric Performance
- LIBERTY 2 Sports
- Output - 10900
- Watts - 77W
- LOR - 100%
- SHR MAX = 1:1 (510)
- SHR MAX = 1.8:1 (512)
Related Products
Skylux
The SKYLUX LED high-bay luminaire is designed to deliver exceptional performance in industrial settings. This versatile luminaire offers intense illumination up to 27000lm, making it ideal for large industrial spaces…
VIEW PRODUCT
Liberty 4
The LIBERTY 4 has been designed to utilise the very latest in high efficiency Samsung LED chip technology and has an impressive output of up to 193 Ll/cW and 33100…
VIEW PRODUCT

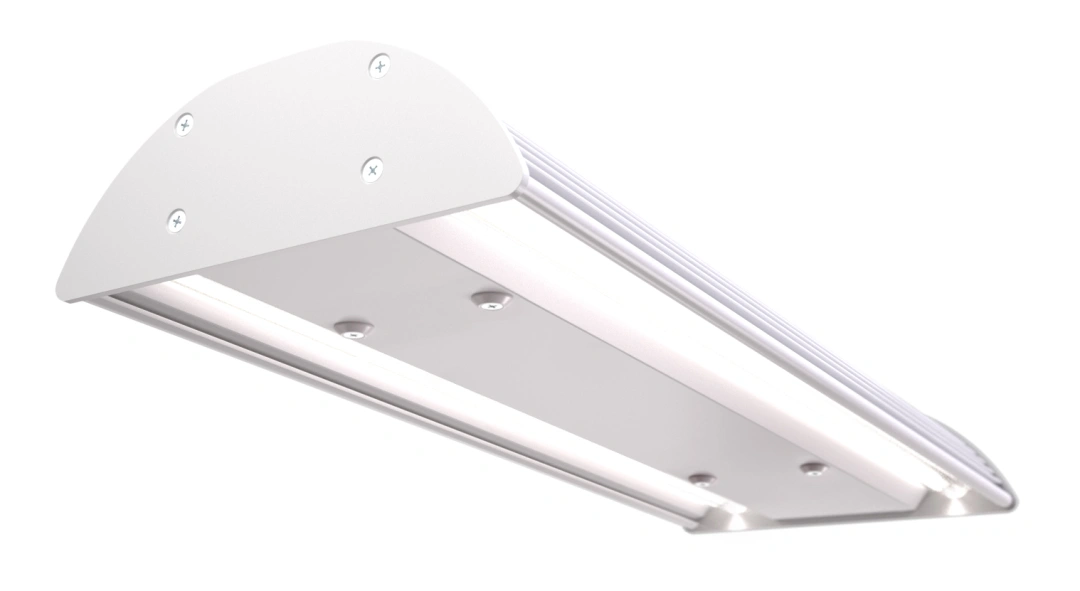

Liberty 2
The LIBERTY 2 has been designed to utilise the latest in high efficiency Samsung LED chip technology and has an impressive output of up to 195 Ll/cW and 16600 delivered…
VIEW PRODUCT
Liberty 4 Sports
The LIBERTY 4 Sports has been designed to utilise the very latest in high efficiency Samsung LED chip technology and has an impressive output of up to 151Ll/cW and 25600…
VIEW PRODUCT

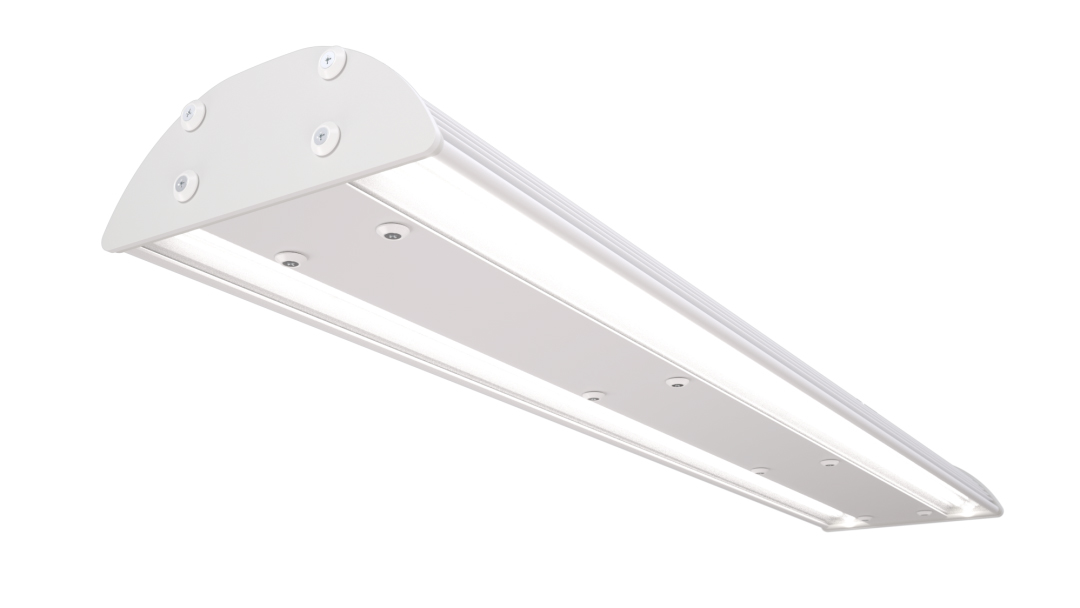

Liberty 4 IP
The LIBERTY 4 IP has been designed to utilise the very latest in high efficiency Samsung LED chip technology and has an impressive output of up to 174 Ll/cW and…
VIEW PRODUCT

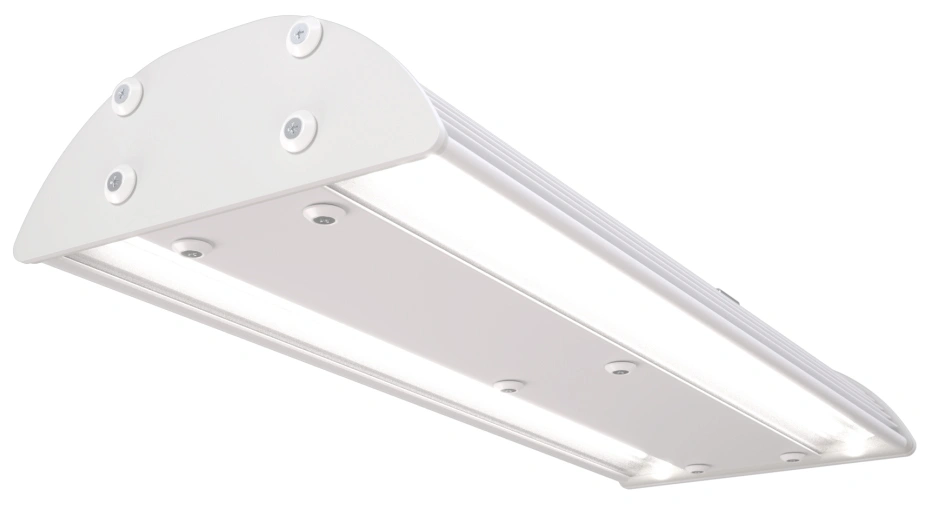

Liberty 2 IP
