Product Description:

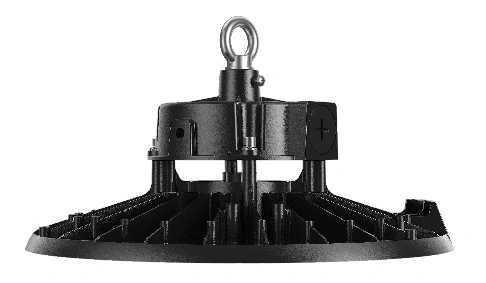

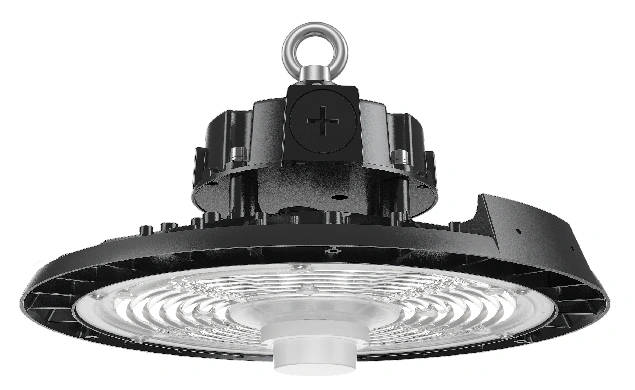

The SKYLUX LED high-bay luminaire is designed to deliver exceptional performance in industrial settings. This versatile luminaire offers intense illumination up to 27000lm, making it ideal for large industrial spaces such as warehouses, halls, and other high-mounting applications. The SKYLUX is wattage selectable enabling a range of lumen outputs from one unit. A powerful 120° lens optic focuses light exactly where you need it, maximizing efficiency and minimizing light waste.
Also available is an optional 3hr non-maintained Emergency Kit offering 1000lm. Built for demanding environments, the IP65 rated SKYLUX features a durable die-cast aluminium alloy housing for superior heat dissipation and a polycarbonate optical lens. There is also the option of a PIR sensor and programmable remote to give total control. The SKYLUX is the perfect solution for those seeking a powerful and affordable high-bay luminaire for industrial applications.

Product Data

Product code Curcuit Watts (w) Delivered Lumens Colour Temp Efficacy Ll/cW Dimension (mm)
505.19800.840 65/90/110 11700/16200/19800 4000 180 286
505.27000.840 90/120/150 16200/21600/27000 4000 180 295
505.EMKIT AC:3W DC:6W 1000 6500 166 50

Product Options

  • PIR Occupancy Detection
    (Up to 15 metres)
    suffix .S1
  • 3hr Emergency
    With optional kit below
  • Suspended version
    suffix .SUS
  • Building Information
    modelling
    (Please Download from
    our website)

Features

Ingress
Protection
Colour
Temperature
Impact
Protection

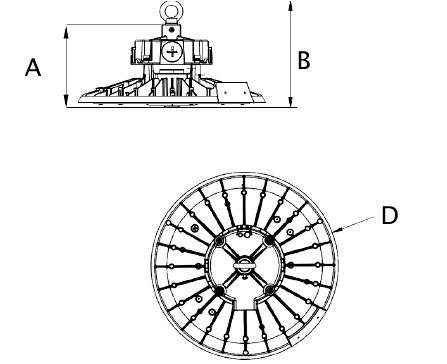

Dimensions

mmmm
A 130 131
B 168 169
D 286 295
KG 2 2.3

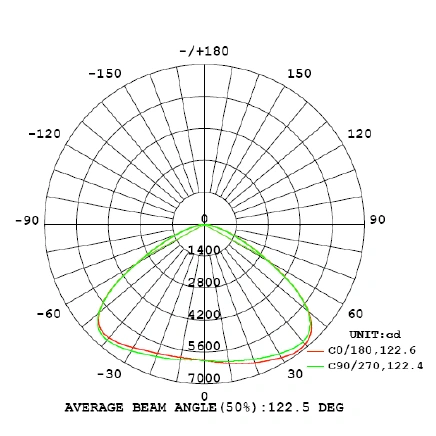

Photometric Performance

  • SKYLUX
  • Output – 21571
  • Watts – 114
  • LOR -100%

Led Performance

25˚ Ambient Temperature L70/B50
SKYLUX 100,000
‘L’ Value = % of initial Lumens maintained after specified time
‘B’ Value = % of fittings failing to meet operational expectations after specified time
