Liberty 2 IP
Product Description:
The LIBERTY 2 IP has been designed to utilise the latest in high efficiency Samsung LED chip technology and has an impressive output of up to 174 Ll/cW and 14900 delivered lumens overall.
Construction is extruded aluminium forming a shallow robust housing and output is controlled and directed with optics designed to maximise lumen efficiencies and put light where it’s needed. DALI control gear is also available as an option.
The LIBERTY 2 IP is sealed to IP65 and features a 1m flex to ensure ease of installation. It is ideal for open warehouses with high and low racking aisles (recommended for good horizontal luminance), sports halls and general commercial areas
Product Data
| Product code | Distribution | Current Watts (w) | Delivered Lumens | Colour Temp | Efficacy Ll/cW | Em Lumens |
|---|---|---|---|---|---|---|
| 530.7300.840 | Narrow | 42 | 7300 | 4000 | 174 | 500 |
| 530.9300.840 | Narrow | 54 | 9300 | 4000 | 172 | 500 |
| 530.11000.840 | Narrow | 65 | 11000 | 4000 | 169 | 500 |
| 530.12700.840 | Narrow | 78 | 12700 | 4000 | 163 | 500 |
| 530.14900.840 | Narrow | 96 | 14900 | 4000 | 155 | 500 |
| 531.7200.840 | General | 48 | 7200 | 4000 | 150 | 500 |
| 531.8900.840 | General | 60 | 8900 | 4000 | 148 | 500 |
| 531.10400.840 | General | 72 | 10400 | 4000 | 144 | 500 |
| 531.11800.840 | General | 83 | 11800 | 4000 | 142 | 500 |
| 531.12800.840 | General | 96 | 12800 | 4000 | 133 | 500 |
| 532.7300.840 | Wide | 42 | 7300 | 4000 | 174 | 500 |
| 532.9300.840 | Wide | 54 | 9300 | 4000 | 172 | 500 |
| 532.11000.840 | Wide | 65 | 11000 | 4000 | 169 | 500 |
| 532.12700.840 | Wide | 78 | 12700 | 4000 | 163 | 500 |
| 532.14900.840 | Wide | 96 | 14900 | 4000 | 155 | 500 |
Product Options
-
Correlated colour temp
suffix .830 -
Correlated colour temp
suffix .857 -
Correlated colour temp
suffix .TW
-
3hr Emergency
suffix .EM3 -
Dali
suffix .D1 -
Emergency Dali
suffix .EMD3 -
Emergency Self Test
suffix .EMST3
-
PIR Occupancy
Detection & Daylight
Dimming
suffix .S1 -
PIR Occupancy Detection
(Up to 15 metres)
suffix .S2 -
Wireless
suffix .S5
-
3m LSF
LSF. 3 -
5m LSF
LSF. 5 -
7m LSF
LSF. 7
Features
Temperature
LSF. 1
Protection
MS15 – Liberty Suspension Kit

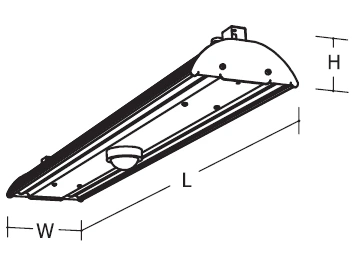

Dimensions
Photometric Performance
- LIBERTY 2 IP
- Output - 14900
- 96W
- LOR - 100%
- SHR MAX = 1:1 (530)
- SHR MAX = 1.8:1 (532)
