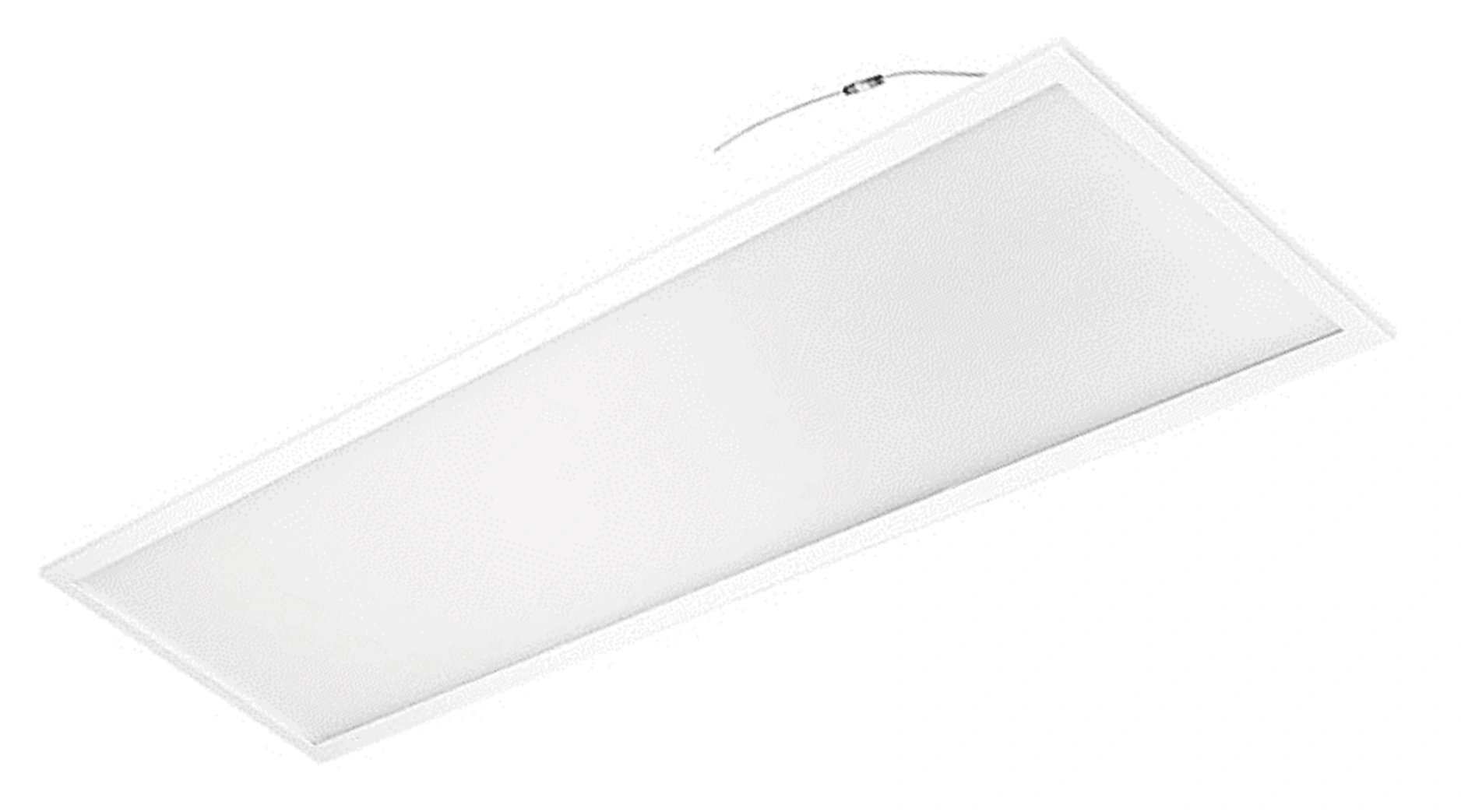

Force 41 Edge
Product Description:
The FORCE 41 EDGE LED panel has been designed using side lit light guide technology offering good efficiency in an extremely light weight, low profile, high economy package. At 10mm the panel depth is no deeper than many ceiling tiles and significantly shallower that the ceiling grid.
This gives the FORCE41 EDGE the advantage of being installable in places other luminaires simply won’t fit.
The output of up to 123 Ll/cW and 4400 delivered lumens is smoothly controlled by the edge lit optics, high efficiency TP(a) prismatic diffuser and reflector elements, eliminating harsh contrast and providing a flawless low glare light transmission while achieving optimum wall and ceiling illuminance. Solidly constructed from an extruded aluminium frame and sheet steel backplate.
Tridonic control gear as standard and pre-wired flex options are available to ensure ease of installation. The FORCE 41 EDGE is ideal for open offices, classrooms, general corridors and commercial areas.
Product Data
| Product code | Curcuit Watts (w) | Delivered Lumens | Colour Temp | Efficacy Ll/cW | Em Lumens |
|---|---|---|---|---|---|
| Prismatic TP(a) | |||||
| 117.2400.840 | 17 | 2400 | 4000 | 120 | 300 |
| 117.3200.840 | 26 | 3200 | 4000 | 123 | 300 |
| 117.3800.840 | 31 | 3800 | 4000 | 122 | 300 |
| 117.4400.840 | 38 | 4400 | 4000 | 115 | 300 |
Product Options
-
Correlated colour temp
suffix .830 -
Correlated colour temp
suffix .850 -
Correlated colour temp
suffix .TW
-
3hr Emergency
suffix .EM3 -
Dali
suffix .D1 -
Emergency Dali
suffix .EMD3
-
Wireless
suffix .S5 -
Building Information
modelling
(Please Download from
our website) -
Emergency Self Test
suffix .EMST3
-
1m LSF
LSF. 1 -
3m LSF
LSF. 3 -
5m LSF
LSF. 5 -
7m LSF
LSF. 7
Features
Protection

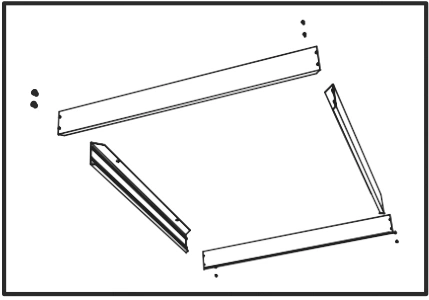

SURFACE MOUNTING KIT
117.SMK – SURFACE MOUNTING KIT FOR 117

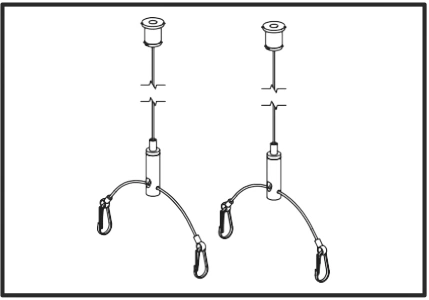

SUSPENSION KIT
117.SUSK – SUSPENSION KIT FOR 117

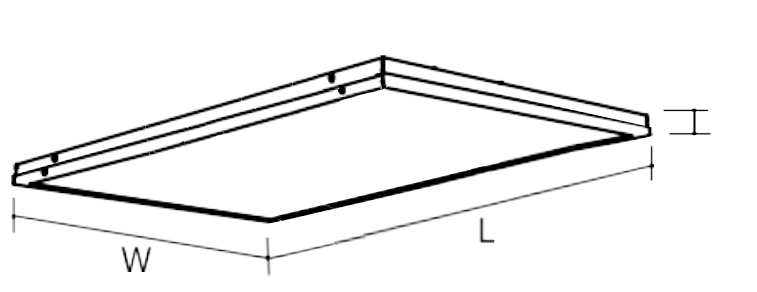

Dimensions

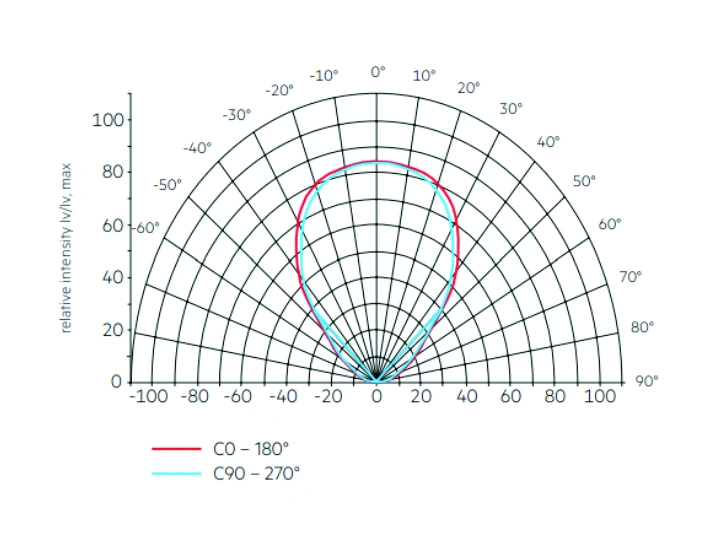

Photometric Performance
- FORCE 41 EDGE
- Output - 3800
- Watts - 27
- LOR - 100%
- SHR MAX - 1.6:1
Related Products
Force 22 Hygiene NSR
Sealed to IP65 and finished in corrosion resistant polyester powder-coat, the FORCE 22 HYGIENE NSR is a twin switching luminaire designed with animal husbandry and research environments in mind. White…
VIEW PRODUCT
Galactic L
The Galactic L is a recessed mounted LED downlight. Engineered to the same exacting standards as the rest of the Galactic range, this LED downlight is equally appealing and also…
VIEW PRODUCT
Force 22 Hygiene
The FORCE 22 HYGIENE is a 600mm x 600mm recessed modular, sealed to IP65 and finished in corrosion resistant polyester powder-coat and is designed with harsh environments in mind. Using…
VIEW PRODUCT
Clone
The CLONE is a direct/indirect recessed modular and has been designed to utilise the very latest high efficiency Samsung LED chip technology, with an impressive output of up to 126…
VIEW PRODUCT

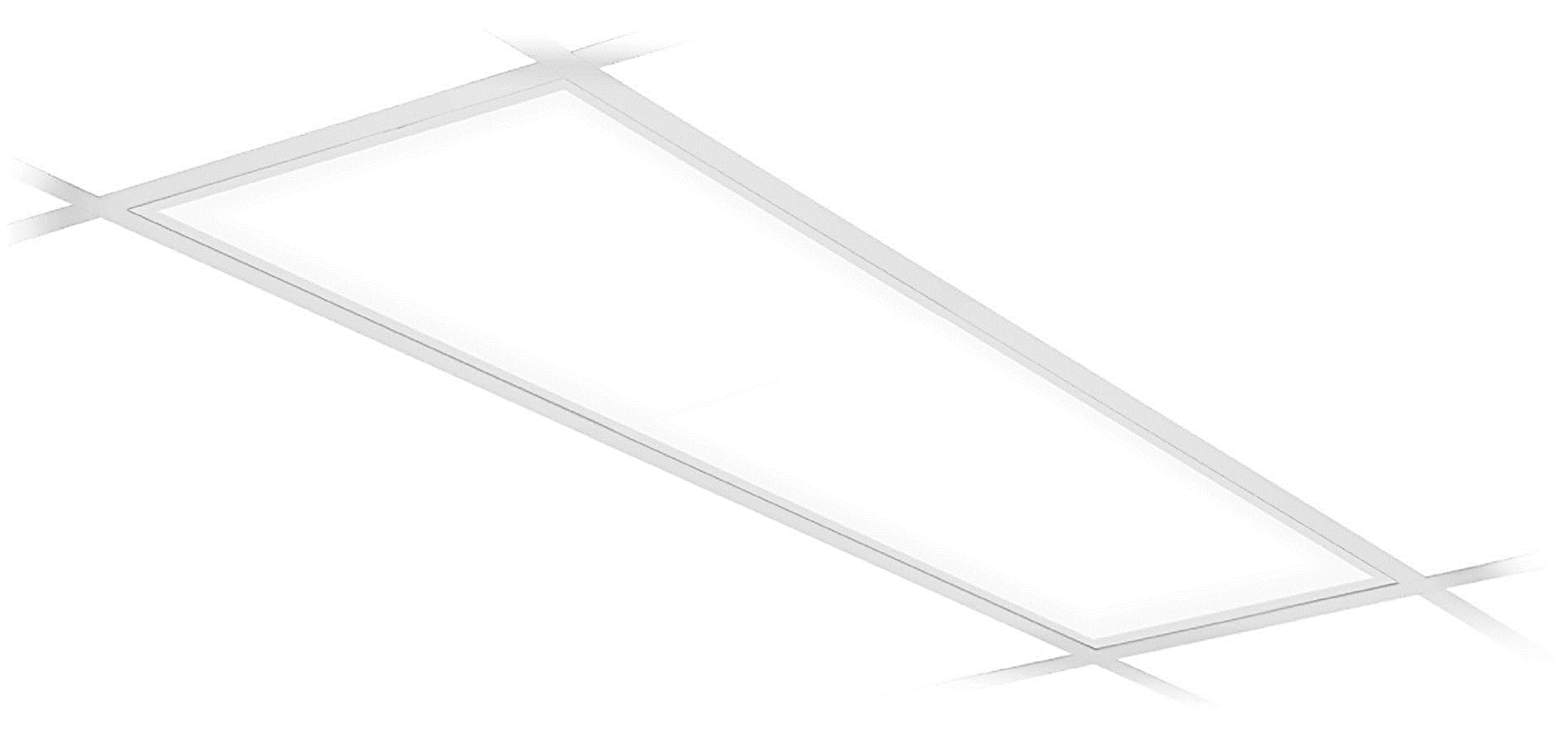

Force 41
The Force 41 LED is a 1200mm x 300mm recessed modular panel designed to offer maximum efficiencies using the latest high efficiency Samsung LED chip technology, with an impressive output…
VIEW PRODUCT

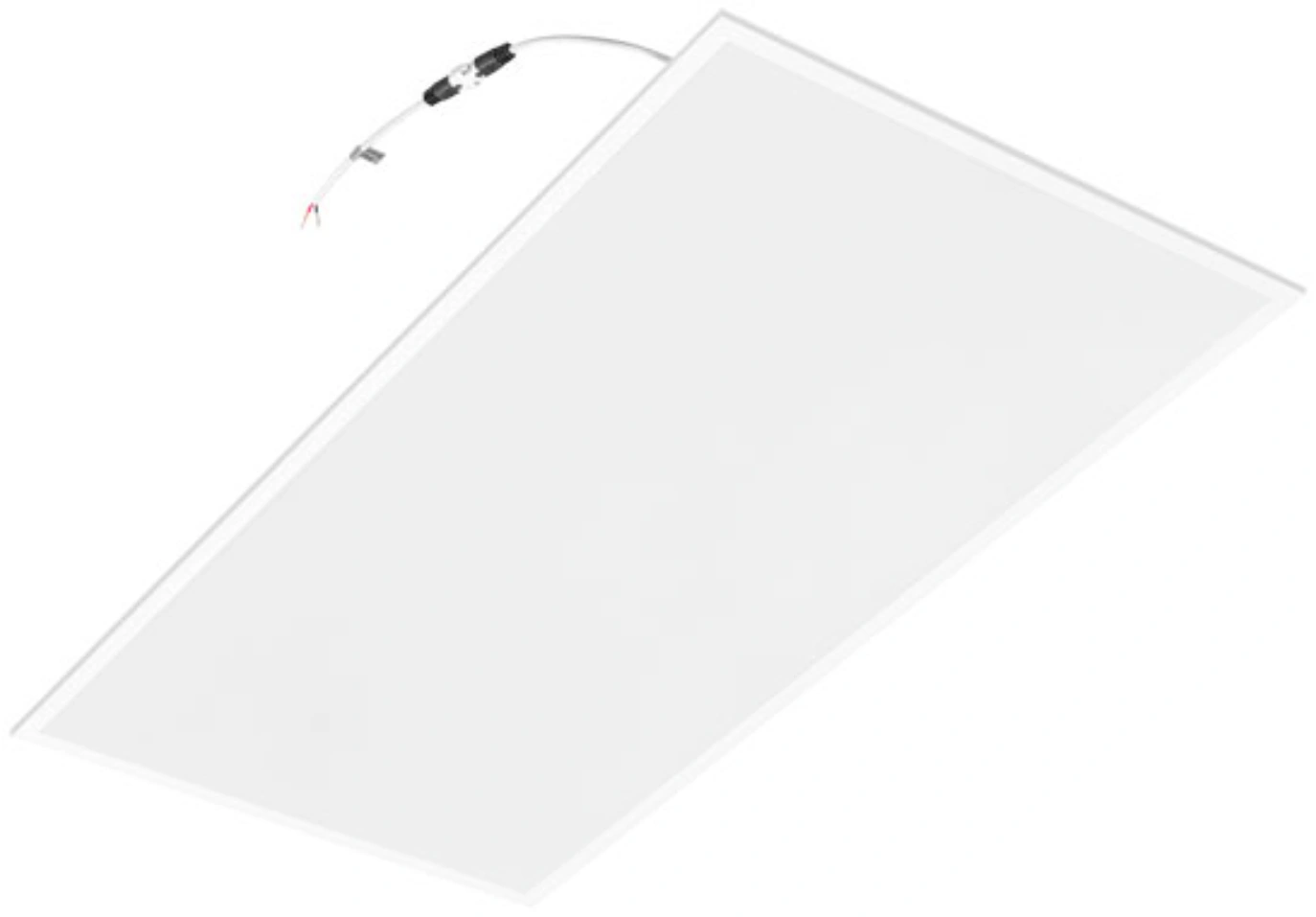

Force 42
