Clone
Product Description:
The CLONE is a direct/indirect recessed modular and has been designed to utilise the very latest high efficiency Samsung LED chip technology, with an impressive output of up to 126 Ll/cW and 5900 delivered lumens overall.
The unique optic design eliminates harsh contrasts as the light output graduates from the centre outwards to achieve excellent wall illuminance.
Advanced downward optics reduce glare for optimum control and diffusion, fabricated sheet steel powder coated body. DALI control gear and pre-wired flex are also available as an optionto ensure ease of installation.
The CLONE is ideal for open offices, classrooms and general commercial areas.
Product Data
| Product code | Curcuit Watts (w) | Delivered Lumens | Colour Temp | Efficacy Ll/cW | Em Lumens |
|---|---|---|---|---|---|
| 120.2300.840 | 21 | 2300 | 4000 | 110 | 430 |
| 120.3000.840 | 25 | 3000 | 4000 | 120 | 430 |
| 120.4500.840 | 36 | 4500 | 4000 | 125 | 430 |
| 120.5900.840 | 47 | 5900 | 4000 | 126 | 430 |
Product Options
-
Correlated colour temp
suffix .830 -
Correlated colour temp
suffix .857 -
Correlated colour temp
suffix .TW
-
3hr Emergency
suffix .EM3 -
Dali
suffix .D1 -
Emergency Dali
suffix .EMD3
-
Wireless
suffix .S5 -
Building Information
modelling
(Please Download from
our website) -
Emergency Self Test
suffix .EMST3
-
1m LSF
LSF. 1 -
3m LSF
LSF. 3 -
5m LSF
LSF. 5 -
7m LSF
LSF. 7
Features
Protection
Temperature
Rated
Dimensions

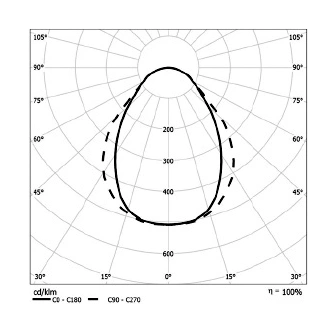

Photometric Performance
- CLONE
- Output - 5900
- 47W
- LOR - 100%
- SHR MAX = 1.3:1
