Force 500
Product Description:
The FORCE 500 LED is a 500mm x 500mm modular panel and has been designed to offer maximum efficiencies utilising Tridonic gear throughout and a LED source offering an output of up to 124 Ll/cW and 4000 delivered lumens overall.
The unique diffuser eliminates harsh contrasts and provides a flawless low glare light transmission achieving optimum wall and ceiling illuminance. Fabricated sheet steel powder coated body. DALI control gear and pre-wired flex are also available as an option to ensure ease of installation.
The FORCE 500 is ideal for open offices, classrooms, general corridors and commercial areas.
Product Data
| Product code | Curcuit Watts (w) | Delivered Lumens | Colour Temp | Efficacy Ll/cW | Em Lumens |
|---|---|---|---|---|---|
| Opal | |||||
| 130.2100.840 | 17 | 2100 | 4000 | 124 | 350 |
| 130.3100.840 | 27 | 3100 | 4000 | 115 | 350 |
| 130.4000.840 | 34 | 4000 | 4000 | 118 | 350 |
| LG7 Prismatic | |||||
| 135.2000.840 | 17 | 2000 | 4000 | 118 | 350 |
| 135.3000.840 | 27 | 3000 | 4000 | 111 | 350 |
| 135.3800.840 | 34 | 3800 | 4000 | 112 | 350 |
Product Options
-
Correlated colour temp
suffix .830 -
Correlated colour temp
suffix .857 -
Correlated colour temp
suffix .TW
-
3hr Emergency
suffix .EM3 -
Dali
suffix .D1 -
Emergency Dali
suffix .EMD3 -
Emergency Self Test
suffix .EMST3
-
Wireless
suffix .S5 -
Building Information
modelling
(Please Download from
our website) -
Emergency Self Test
suffix .EMST3
-
1m LSF
LSF. 1 -
3m LSF
LSF. 3 -
5m LSF
LSF. 5 -
7m LSF
LSF. 7
Features
Protection
Temperature

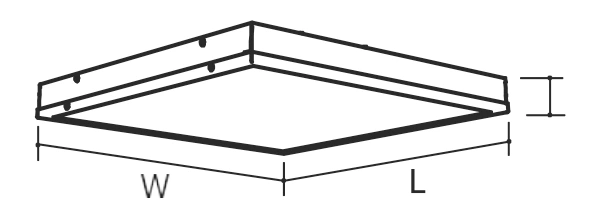

Dimensions

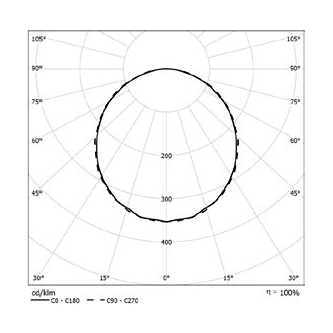

Photometric Performance
- FORCE 500
- Output - 4000
- Watts - 34
- LOR - 100%
- SHR MAX = 1.6:1
Related Products

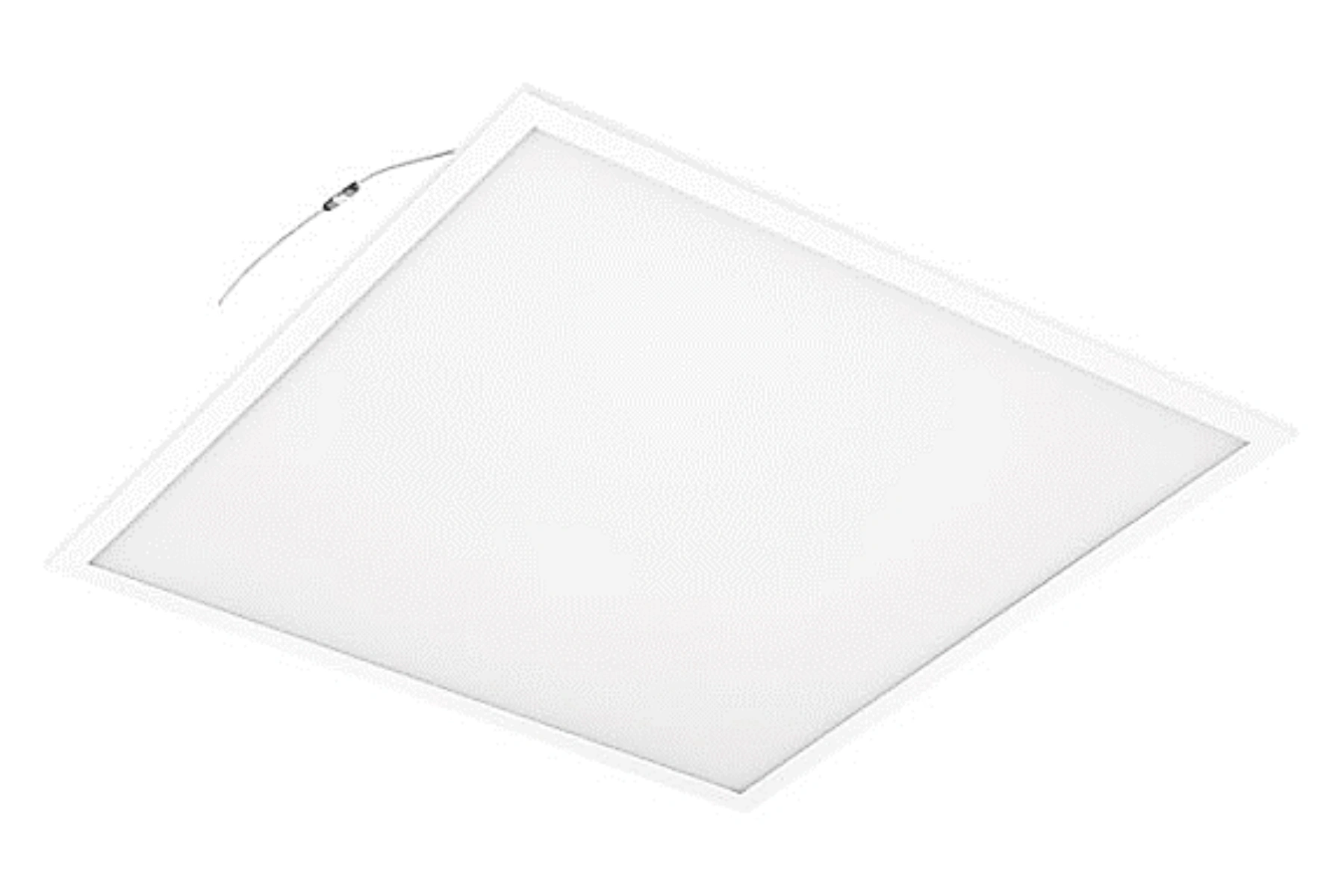

Force 22 Edge
The FORCE 22 EDGE, LED is a 600mm x 600mm modular panel and has been designed using side lit light guide technology. Offering good efficiency in an extremely light weight,…
VIEW PRODUCT

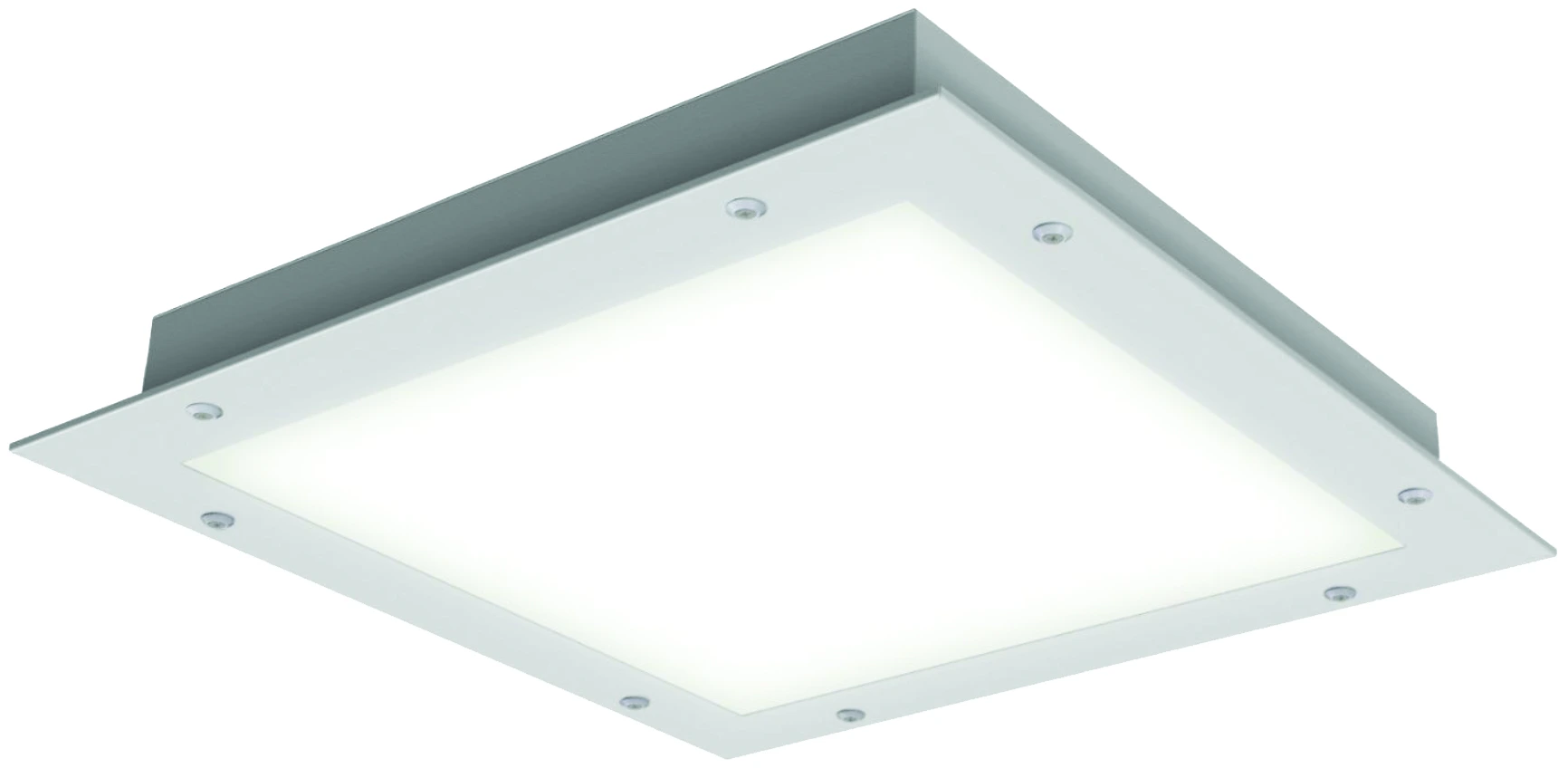

Force 22 Hygiene NSR
Sealed to IP65 and finished in corrosion resistant polyester powder-coat, the FORCE 22 HYGIENE NSR is a twin switching luminaire designed with animal husbandry and research environments in mind. White…
VIEW PRODUCT
Force SAS
The FORCE SAS is a stylish alternative to the standard LED flat panel, designed exclusively for 1200mm x 300mm concealed grid ceilings systems including optional air handling capability. A three…
VIEW PRODUCT
Force 22 Hygiene
The FORCE 22 HYGIENE is a 600mm x 600mm recessed modular, sealed to IP65 and finished in corrosion resistant polyester powder-coat and is designed with harsh environments in mind. Using…
VIEW PRODUCT

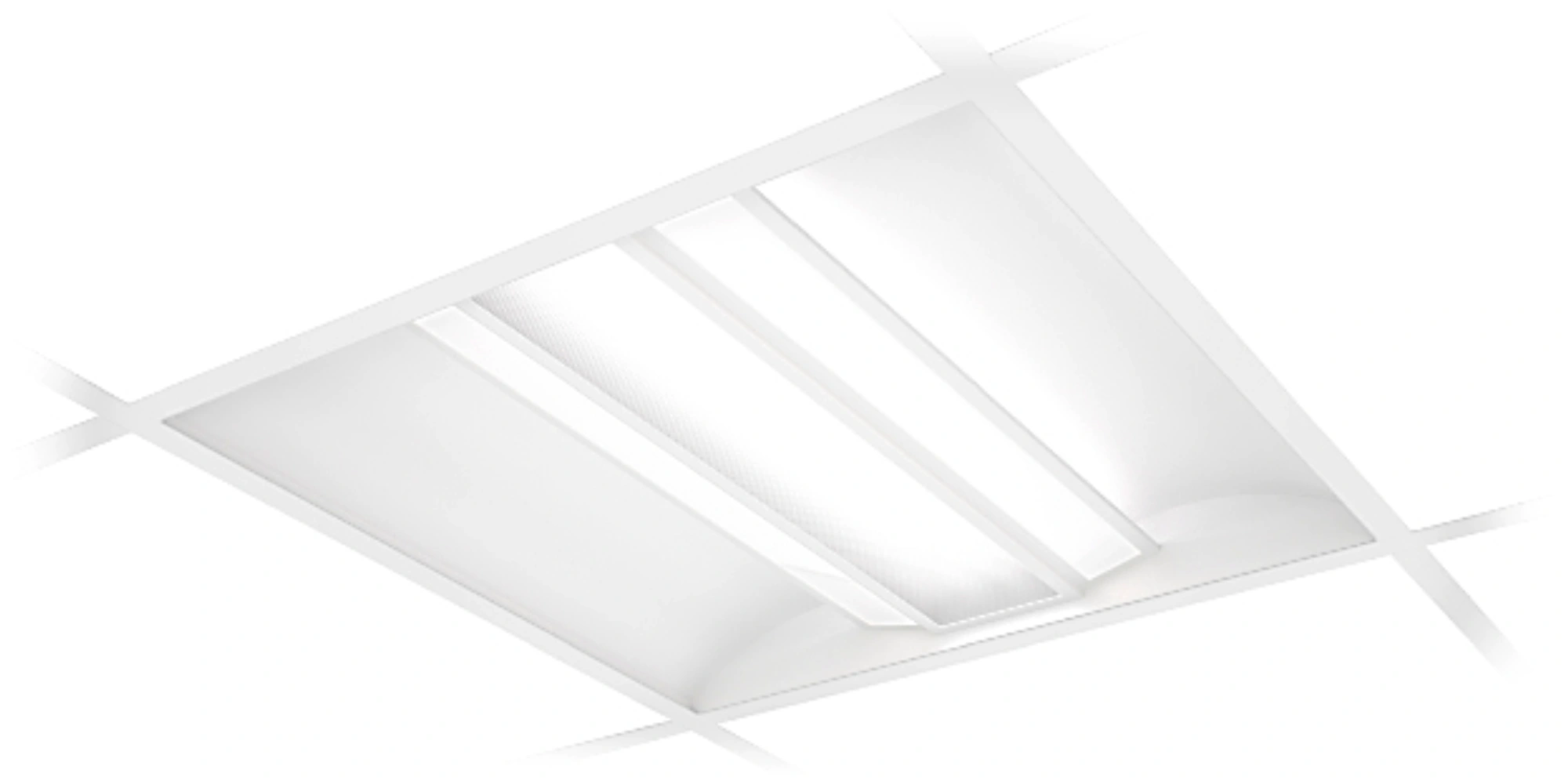

Clone
