Force 22 Edge
Product Description:
The FORCE 22 EDGE, LED is a 600mm x 600mm modular panel and has been designed using side lit light guide technology. Offering good efficiency in an extremely light weight, low profile, high economy package, the FORCE 22 EDGE panel is suitable for direct recessed mount and surface or suspended mount with accessories. At 12mm the panel depth is no deeper than many ceiling tiles and significantly shallower than even the ceiling grid. This gives the FORCE 22 EDGE the advantage of being installable in places other luminaires simply won’t fit. With an output of up to 124 Ll/cW and 4440 delivered lumens. The range is further enhanced by a choice of evenly lit TP(a) or TP(b) UGR19* micro prismatic.
Solidly constructed from an extruded aluminium frame and sheet steel backplate. Tridonic control gear as standard and pre-wired flex options are available to ensure ease of installation.
The FORCE 22 EDGE is ideal for open offices, classrooms, general corridors and commercial areas.
*UGR19 compliance is dependent on room geometry and reflectance.
Product Data
| Product code | Curcuit Watts (w) | Delivered Lumens | Colour Temp | Efficacy Ll/cW | Em Lumens |
|---|---|---|---|---|---|
| Prismatic* TP(b) | |||||
| 115.2100.840 | 18 | 2160 | 4000 | 120 | 320 |
| 115.3100.840 | 25 | 3100 | 4000 | 124 | 320 |
| 115.3800.840 | 31 | 3850 | 4000 | 123 | 320 |
| 115.4400.840 | 37 | 4440 | 4000 | 120 | 320 |
| Prismatic* TP(a) | |||||
| 116.2100.840 | 18 | 2160 | 4000 | 120 | 320 |
| 116.3100.840 | 25 | 3100 | 4000 | 124 | 320 |
| 116.3800.840 | 31 | 3850 | 4000 | 123 | 320 |
| 116.4400.840 | 37 | 4440 | 4000 | 120 | 320 |
Product Options
-
Correlated colour temp
suffix .830 -
Correlated colour temp
suffix .TW
-
3hr Emergency
suffix .EM3 -
Dali
suffix .D1 -
Emergency Dali
suffix .EMD3
-
Building Information
modelling
(Please Download from
our website) -
Emergency Self Test
suffix .EMST3
-
1m LSF
LSF. 1 -
3m LSF
LSF. 3 -
5m LSF
LSF. 5 -
7m LSF
LSF. 7
Features
Protection
Temperature

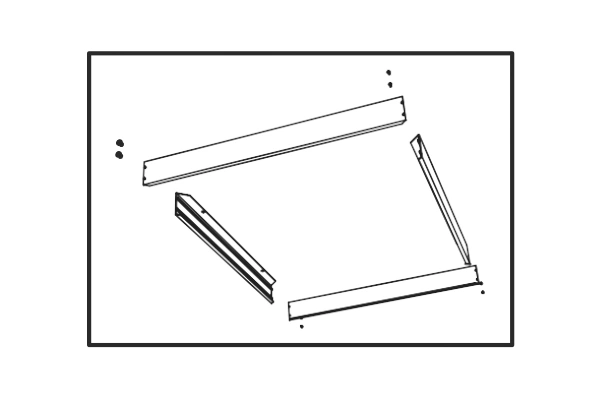

SURFACE MOUNTING KIT
115.SMK – SURFACE MOUNTING KIT FOR 115
116.SMK – SURFACE MOUNTING KIT FOR 116
SUSPENSION KIT
115.SUSK – SUSPENSION KIT FOR 115
116.SUSK – SUSPENSION KIT FOR 116

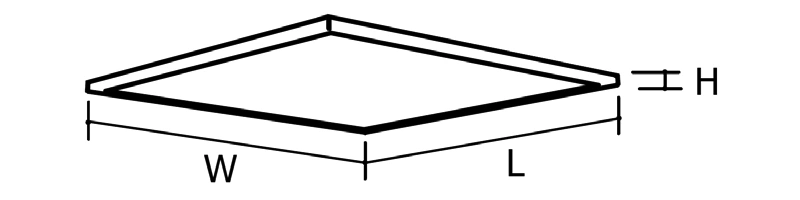

Dimensions

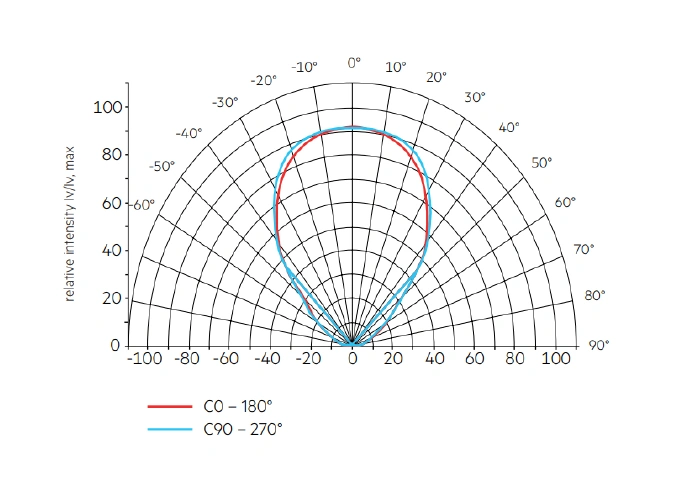

Photometric Performance
- FORCE 22 EDGE
- Output - 3850
- Watts - 31
- LOR - 100%
- SHR MAX = 1.6:1
