Force 41
Product Description:
The Force 41 LED is a 1200mm x 300mm recessed modular panel designed to offer maximum efficiencies using the latest high efficiency Samsung LED chip technology, with an impressive output of up to 143 Ll/cW and 6200 delivered lumens overall.
The translucent diffuser eliminates harsh contrasts and provides flawless, low glare light transmission achieving optimum wall and ceiling illuminance. Fabricated sheet steel powder coated body. DALI control gear and pre-wired flex are also available as an option to ensure ease of installation.
The FORCE 41 is ideal for open offices, classrooms, general corridors and commercial areas.
Product Data
| Product code | Curcuit Watts (w) | Delivered Lumens | Colour Temp | Efficacy Ll/cW | Em Lumens |
|---|---|---|---|---|---|
| 110.1900.840 | 14 | 1900 | 4000 | 136 | 440 |
| 110.2400.840 | 17 | 2400 | 4000 | 141 | 440 |
| 110.3300.840 | 23 | 3300 | 4000 | 143 | 440 |
| 110.4200.840 | 30 | 4200 | 4000 | 140 | 440 |
| 110.5200.840 | 37 | 5200 | 4000 | 141 | 440 |
| 110.6200.840 | 44 | 6200 | 4000 | 141 | 440 |
Product Options
-
Correlated colour temp
suffix .830 -
Correlated colour temp
suffix .857 -
Correlated colour temp
suffix .TW
-
3hr Emergency
suffix .EM3 -
Dali
suffix .D1 -
Emergency Dali
suffix .EMD3
-
Wireless
suffix .S5 -
M
Building Information
modelling
(Please Download from
our website) -
Emergency Self Test
suffix .EMST3
-
1m LSF
LSF. 1 -
3m LSF
LSF. 3 -
5m LSF
LSF. 5 -
7m LSF
LSF. 7
Features
Protection
Temperature

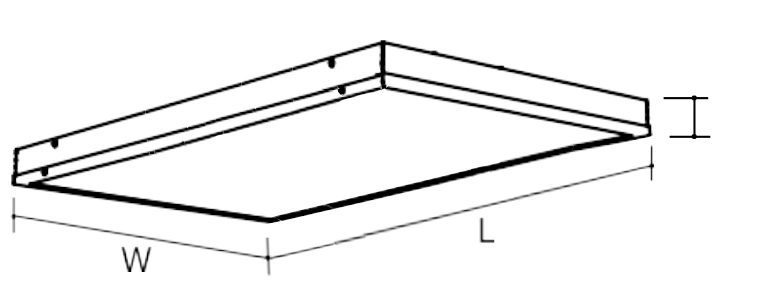

Dimensions
Photometric Performance
- FORCE 41
- Output - 6200
- 45 W
- OR - 100%
- SHR MAX = 1.6:1
