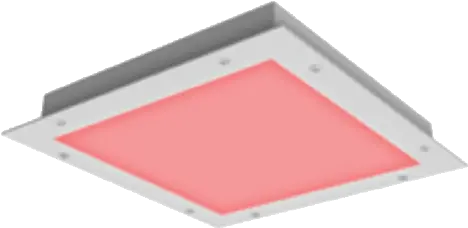

Force 22 Hygiene NSR
Product Description:
Sealed to IP65 and finished in corrosion resistant polyester powder-coat, the FORCE 22 HYGIENE NSR is a twin switching luminaire designed with animal husbandry and research environments in mind. White mode utilizes the latest high efficiency Samsung LED chip technology provides an impressive output of up to 131 LL/cW and 3100 delivered lumens overall.
In red mode, high power Cree red LEDs produces an equivalent lumen level in Narrow Spectrum Red light with a peak at 630nm to support the natural circadian rhythms of laboratory animals in research environments.
The TP(a) rated opal diffuser eliminates harsh contrasts and provides low glare light transmission achieving optimum illuminance. Dali dimming option available. Side arm mounting option also available.
Product Data
| Product code | Curcuit Watts (w) | Delivered Lumens | LL/cW | Emergency Lumens | Red Mode cW | Red Mode Lumens |
|---|---|---|---|---|---|---|
| 615.2100.840 | 16 | 2100 | 131 | 383 | 59 | 2000 |
| 615.3100.840 | 25 | 3100 | 124 | 383 | 95 | 3000 |
Product Options
-
3hr Emergency
suffix .EM3
-
Dali
suffix .D1
-
Emergency Dali
suffix .EMD3
Features
Temperature

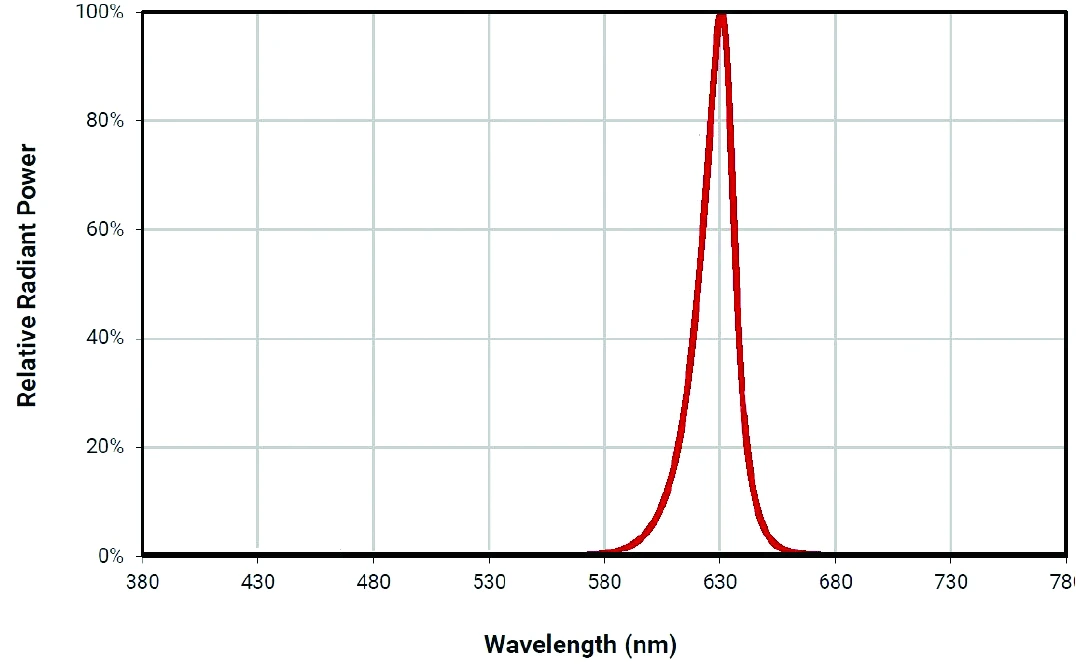

Red Led Spectrum

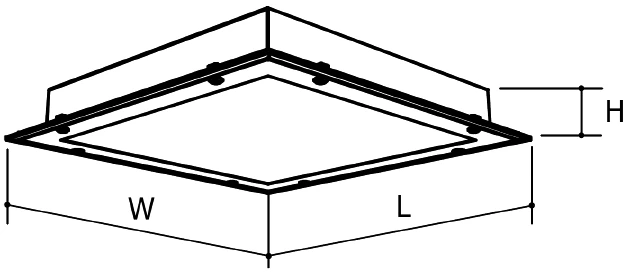

Dimensions

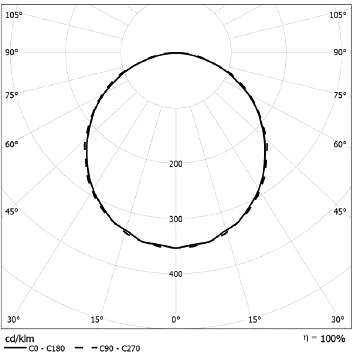

Photometric Performance
- 615.29.3100
- 3100 Lumens
- 25W
- LOR = 100%
- SHR MAX = 1.6:1
