Product Description:

The SAVO, a ground-mounted LED luminaire, merges exceptional durability with a modern and sleek design. Ideal for illuminating public spaces and building facades, the SAVO delivers efficient direct light, enhancing both safety and visual appeal.
Built to last, the SAVO features a brushed stainless-steel frame for a touch of modern elegance, while its dark grey aluminium housing and tempered glass diffuser with a lens ensure exceptional impact resistance (IK10) and protection against dust and water ingress (IP67).
Uncompromising performance is delivered through high colour consistency (SDCM 3) for exceptional colour rendering and a visually pleasing experience. Enjoy a long lifespan of 60,000 hours with minimal maintenance needs, and a wide operating temperature range of -25°C to +40°C for adaptation to various climates.
Effortless installation is achieved with the SAVO’s pre-wired 1.0m cable (3×1.5mm²) for a quick electrical connection. Simply secure it directly into the ground for seamless integration.

The SAVO offers a perfect blend of strength, style, and performance.

Product Data

Product code Curcuit Watts (w) Delivered Lumens Colour Temp K Efficacy Ll/cW Diameter (mm)
7010.210.1650.840 13 1650 4000 122 210
7010.210.2230.840 19 2230 4000 115 210
7010.260.2250.840 19 2250 4000 115 260
7010.260.3200.840 26 3200 4000 123 260
7010.320.3200.840 26 3200 4000 123 320
7010.320.3900.840 34 3900 4000 115 320

Product Options

  • Correlated colour temp
    suffix .830
  • Dali
    suffix .D1
  • Building Information
    modelling
    (Please Download from
    our website)

Features

Ingress
Protection
Colour
Temperature
Impact
Protection

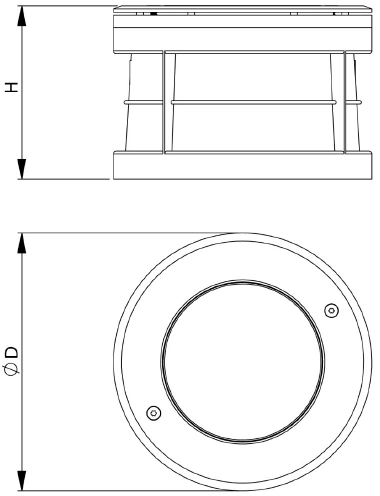

Dimensions

mmmmmm
D 210 260 320
H 120 125 160
CUT OUT 200 250 310
KG 2.2 3.3 5.2

Photometric Performance

  • SAVO
  • Output – 3952
  • Watts – 34.4
  • LOR -100%

Led Performance

25˚ Ambient Temperature L80/B10
SAVO 60,000
‘L’ Value = % of initial Lumens maintained after specified time
‘B’ Value = % of fittings failing to meet operational expectations after specified time
