Product Description:

The TERRA, an IP67 ground-mounted LED luminaire, seamlessly integrates into public spaces and facades. Its sleek, brushed stainless-steel housing and frame offer a touch of modern elegance. Offering a wide operating temperature range of -25°C to +40°C ensures long-lasting performance and superior corrosion resistance in any outdoor environment.
The TERRA delivers efficient direct light distribution, guiding pedestrians and enhancing safety. A frosted tempered glass diffuser provides excellent light transmittance, diffusing the light for a soft and pleasant illumination. Additionally, the tempered glass offers exceptional impact resistance for long-lasting durability.
Pre-wired with a 1.0m cable (3×1.5mm²) cable for effortless installation, the TERRA simply secures into the ground. This combination of sleek design, durable construction, and efficient light distribution makes the TERRA a versatile and reliable choice for enhancing the visual appeal and safety of your outdoor space.

Product Data

Product code Curcuit Watts (w) Delivered Lumens Colour Temp K Efficacy Ll/cW Length (mm)
7013.430.840 5 430 4000 86 430
7013.530.840 7 530 4000 76 430
7013.750.840 9 750 4000 83 630
7013.900.840 11 900 4000 82 630
7013.1400.840 17 1400 4000 82 1050
7013.1720.840 20 1720 4000 86 1050
7013.410.830 5 410 3000 82 430
7013.510.830 7 510 3000 73 430
7013.720.830 9 720 3000 80 630
7013.850.830 11 850 3000 77 630
7013.1330.830 17 1330 3000 78 1050
7013.1650.830 20 1650 3000 83 1050

Product Options

  • Correlated colour temp
    suffix .830
  • Dali
    suffix .D1
  • Building Information
    modelling
    (Please Download from
    our website)

Features

Ingress
Protection
Colour
Temperature
Impact
Protection

Dimensions

mmmmmm
L 430 630 1050
W 115 115 115
H 105 105 105
CUT OUT 410 x 105 610 x 105 1025 x 105
KG 3.1 4.6 7.2

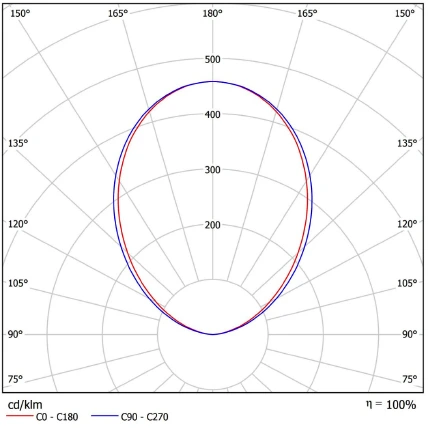

Photometric Performance

  • TERRA
  • Output – 1720
  • Watts – 19.9
  • LOR -100%

Led Performance

25˚ Ambient Temperature L80/B10
TERRA 50,000
‘L’ Value = % of initial Lumens maintained after specified time
‘B’ Value = % of fittings failing to meet operational expectations after specified time
