Product Description:

The STIRLING is a modern linear pendant lighting system designed with a slimline profile and pleasing proportions to enhance any space.
It delivers exceptional performance, offering a maximum output of up to 22,800 lumens and impressive efficacy of up to 143 lumens per watt (Lm/W) as detailed in the Product Data Tables.
Available in single pieces up to 3934mm long for independent mounting, the STIRLING system can also be continuously mounted for seamless integration. Choose from direct light only or a combination of direct and indirect light distribution. Select from opal diffusers for general lighting applications or microprismatic diffusers to minimize glare in office environments.
The STIRLING streamlines installation with a standard 3-meter flying lead and adjustable suspensions. This allows for placement flexibility regardless of mounting method (wall, ceiling – surface or suspended).This versatility makes STIRLING ideal for a wide range of applications, from offices and educational facilities to retail spaces and public areas. Engineered for durability, it features a robust extruded aluminium body with snap-in mild steel gear tray and bracketry.
The STIRLING can be customized to perfectly match your design vision. Contact us to discuss colour options beyond the standard RAL 9006 Silver finish.

Product Options

  • Correlated colour temp
    suffix .830
  • Correlated colour temp
    suffix .857
  • Correlated colour temp
    suffix .TW
  • Continuous Start
    Length
    suffix .S
  • Continuous Middle
    Length
    suffix .M
  • Continuous End
    Length
    suffix .E
  • 3hr Emergency
    suffix .EM3
  • Dali
    suffix .D1
  • Emergency Dali
    suffix .EMD3
  • Emergency Self Test
    suffix .EMST3
  • Wireless
    suffix .S5
  • Building Information
    modelling
    (Please Download from
    our website)
  • Black Finish
    suffix .B
  • White Finish
    suffix .W

Features

Ingress Protection
Colour
Temperature
3m LSF
LSF. 3
Silver

MS12 – Surface mount kit
(Direct versions only)

Direct/Indirect
Distribution

MS13 Suspension kit
(Included)

MS11 Jointing couplers
(Included on continuous versions)

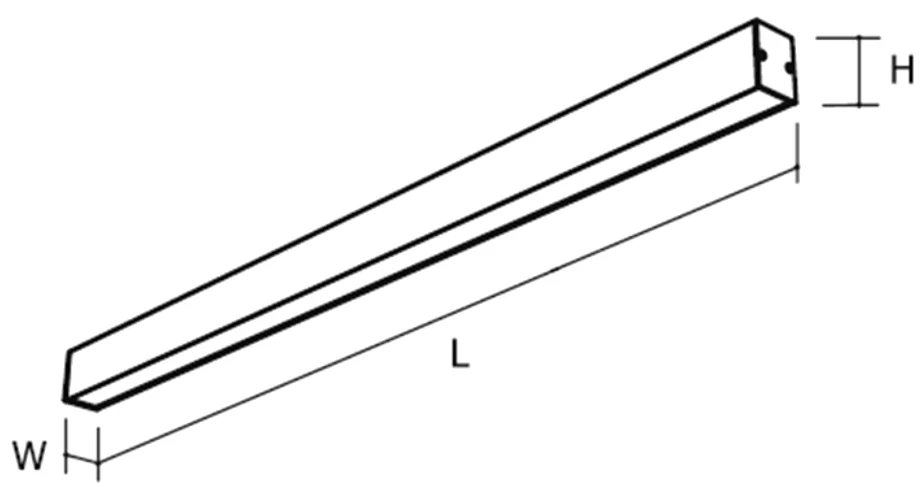

Dimensions

4567891011121314
L (mm) 1132 1412 1692 1974 2254 2534 2814 3094 3374 3654 3934
W (mm) 58 58 58 58 58 58 58 58 58 58 58
H (mm) 80 80 80 80 80 80 80 80 80 80 80
KG 3.2 3.9 4.9 4.9 5.5 6.7 7.3 7.9 8.5 9.1 9.7
KG (Em) +0.5 +0.5 +0.5 +0.5 +0.5 +0.5 +0.5 +0.5 +0.5 +0.5 +0.5

Photometric Performance

  • STIRLING 6
  • Output - 10800
  • 84 W
  • LOR - 100%

Led Performance

25˚ Ambient Temperature L70/B50 L80/B50
STIRLING 90,000 60,000
• Colour Temp - 4000k
• Ra (CRI) > 80

‘L’ Value = % of initial Lumens maintained after specified time
‘B’ Value = % of fittings failing to meet operational expectations after specified time
