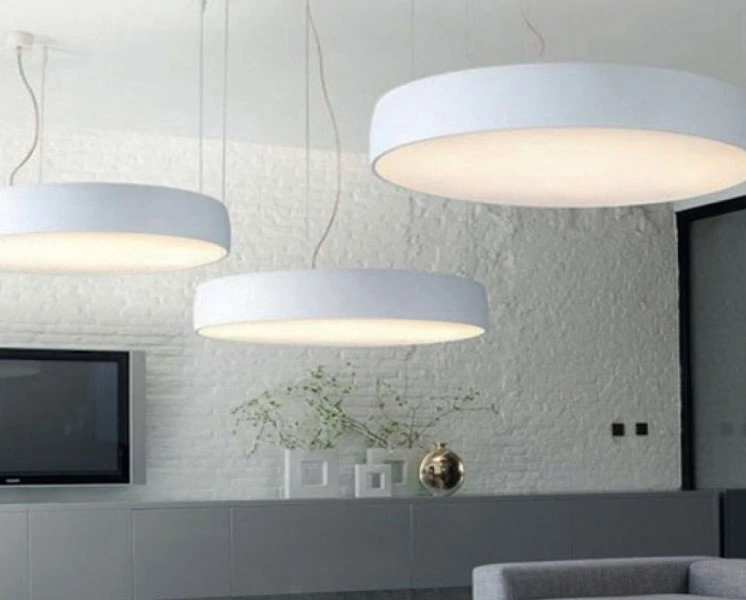

NIMBUS
Product Description:
The NIMBUS, a decorative LED luminaire, elevates the ambiance of any indoor space. This sleek, surface-mounted fixture offers direct downward illumination, ideal for offices, educational facilities, retail stores, and public areas. An opal PMMA diffuser delivers a soft and even spread of light, minimizing glare and creating a comfortable environment.
The NIMBUS offers versatile mounting options – mount it directly to the ceiling for a clean look or utilize optional suspension accessories (available separately) for a striking pendant design. The durable steel housing ensures long-lasting performance, and the classic white finish (RAL9003) complements a variety of décor styles.
A convenient push-in terminal simplifies installation. Available with a choice of finishes and diffusers, the NIMBUS offers a perfect blend of style, functionality, and versatility, making it a perfect choice for a wide range of lighting applications.
Product Data
| PRODUCT CODE | CURCUIT WATTS (W) | DELIVERED LUMENS | COLOUR TEMP | EFFICACY (Lm/W) | Diffuser | Dimension (mm) |
|---|---|---|---|---|---|---|
| 415.300.2050.840 | 16 | 2050 | 4000 | 128 | OPAL | 300 |
| 415.300.2750.840 | 21 | 2750 | 4000 | 131 | OPAL | 300 |
| 415.450.4100.840 | 30 | 4100 | 4000 | 137 | OPAL | 450 |
| 415.450.5550.840 | 44 | 5550 | 4000 | 126 | OPAL | 450 |
| 415.600.6250.840 | 45 | 6250 | 4000 | 139 | OPAL | 600 |
| 415.600.8600.840 | 63 | 8600 | 4000 | 137 | OPAL | 600 |
| 415.900.10550.840 | 73 | 10550 | 4000 | 145 | OPAL | 900 |
| 415.900.13450.840 | 94 | 13450 | 4000 | 143 | OPAL | 900 |
| 415.1140.16550.840 | 112 | 16550 | 4000 | 148 | OPAL | 1140 |
| 415.1140.21100.840 | 146 | 21100 | 4000 | 145 | OPAL | 1140 |
| 416.300.1800.840 | 16 | 1800 | 4000 | 113 | MICRO PRIS | 300 |
| 416.300.2450.840 | 21 | 2450 | 4000 | 117 | MICRO PRIS | 300 |
| 416.450.3600.840 | 30 | 3600 | 4000 | 120 | MICRO PRIS | 450 |
| 416.450.4900.840 | 44 | 4900 | 4000 | 111 | MICRO PRIS | 450 |
| 416.600.5550.840 | 45 | 5550 | 4000 | 123 | MICRO PRIS | 600 |
| 416.600.7600.840 | 63 | 7600 | 4000 | 121 | MICRO PRIS | 600 |
| 416.900.9350.840 | 73 | 9350 | 4000 | 128 | MICRO PRIS | 900 |
| 416.900.11950.840 | 94 | 11950 | 4000 | 127 | MICRO PRIS | 900 |
Product Options
-
Correlated colour temp
suffix .830 -
Dali
suffix .D1
-
3hr Emergency
suffix .EM3 -
Emergency Self Test
suffix.EMST3 -
Emergency Dali
suffix .EMD3
-
Grey
suffix .G -
Red
suffix .R -
Black
suffix .B
-
Green
suffix .GR -
Blue
suffix .BL
-
Suspended version
suffix .SUS -
Microwave Occupancy
Detection
suffix .S3 -
Microwave Occupancy
Detection with corridor
function
suffix .S4
Features
Temperature
Dimensions
Photometric Performance
- NIMBUS
- Output – 2009
- Watts – 15.9
- LOR -100%
Related Products
Challenger Square
The CHALLENGER SQUARE is designed to offer maximum efficiency using the latest Samsung LED chip technology with an impressive output of up to 135 Ll/cW and 2800 delivered lumens overall.…
VIEW PRODUCT
Fortis
The FORTIS is a high-performance IP65, IK10-rated anti-ligature luminaire, built for safety-critical environments requiring durability, impact resistance, and tamper-proof security. Manufactured in the UK, it features a 1.2mm aluminium body…
VIEW PRODUCT

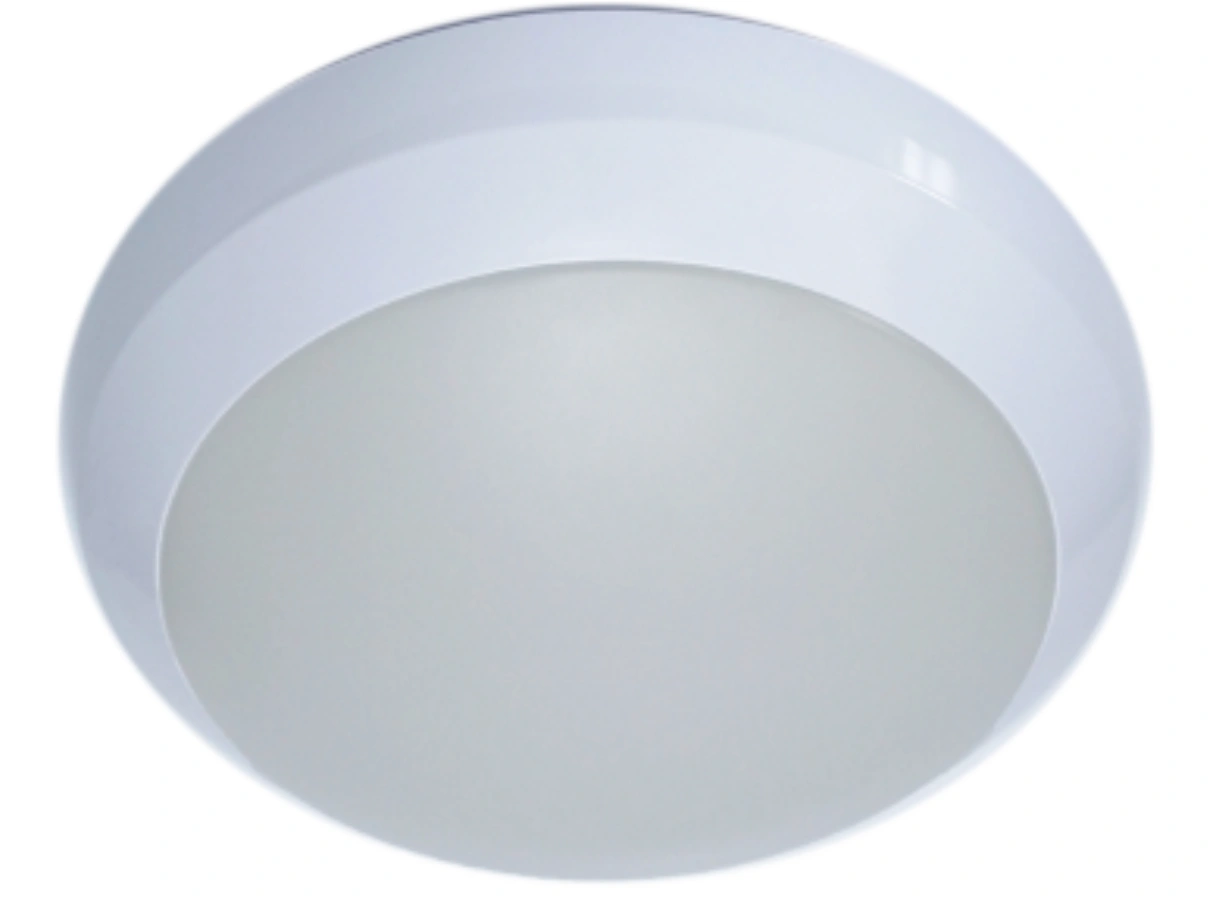

Solo
The SOLO is a robust IP65, IK10-rated amenity luminaire, designed for both interior and exterior applications. Designed to offer maximum efficiency using the latest Samsung LED chip technology with an…
VIEW PRODUCT
Axis
Elevate your space with the AXIS, a decorative LED wall light that seamlessly blends sophisticated style with versatile illumination. This sleek fixture boasts bi-directional light output, featuring opal acrylic diffusers…
VIEW PRODUCT

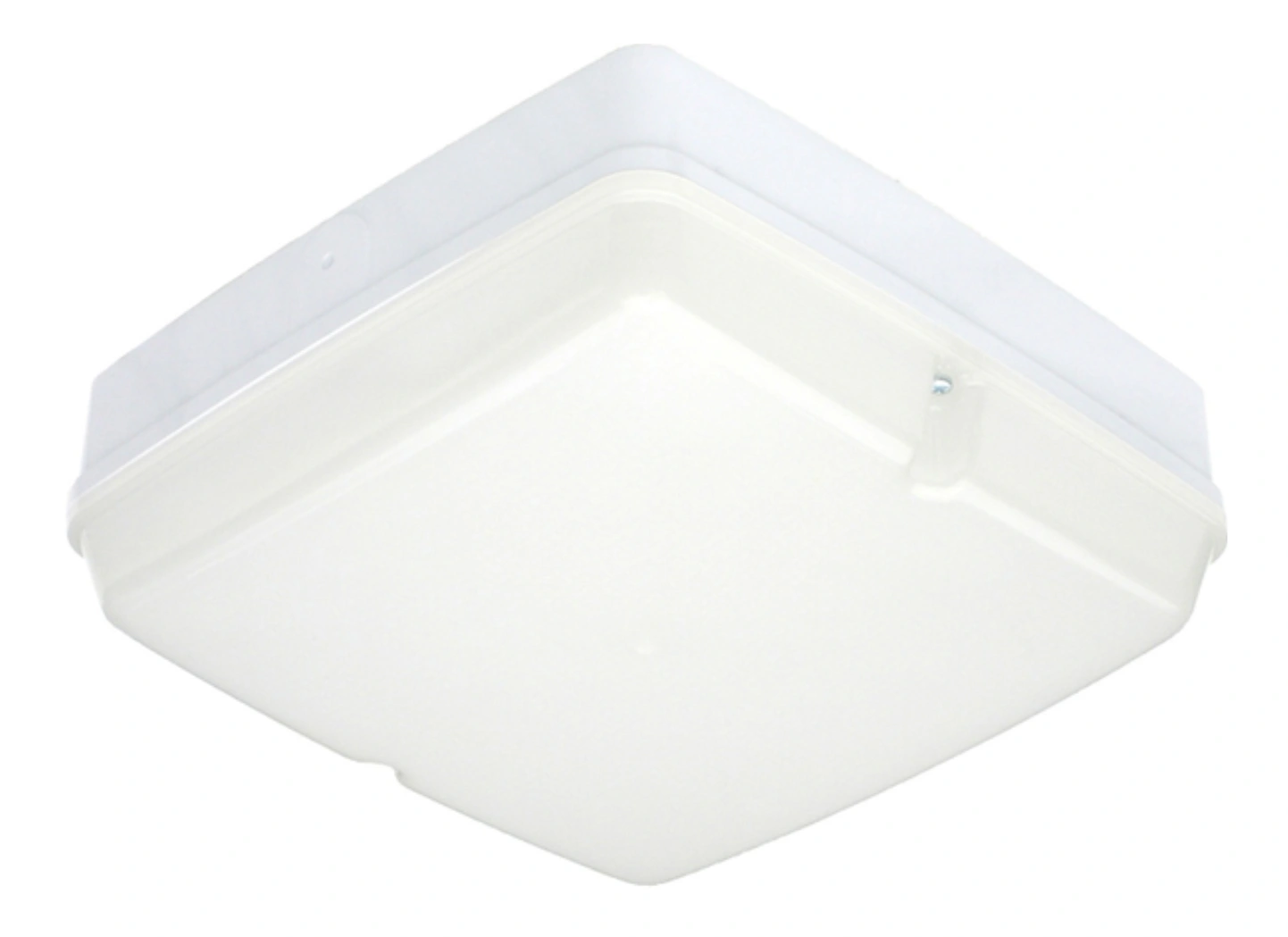

Cruiser Square
