Mid-Hinged Columns
Product Description:
High-quality general-purpose tubular MID-HINGED galvanised steel columns. Available in root mounted or flanged plated, for floodlight or lantern brackets, static or hinged also paint options available.
Constructed from mild steel and root externally bitumen coated as standard. Full range of brackets and spigots available.
NOTE – Raise and lowering equipment may be required. Please ask for details before ordering.
Columns manufactured to BSEN40, PD6547:2004+A1:2009
Extra heavy wind loading region (no sign)
Load B/Deflection class3
As the choice of columns depends on many factors including the area of installation , weight and windage of both bracket(s) and luminaire(s) we need to ascertain these details before choosing a column type.
*Maximum design head load based on wind loading region with operation of bracket/luminaire(s) being on the same plane as door.
Product Data
| Product code | A (M) | B (MM) | C (MM) | D (MM) | E (MM) | DOOR APERTURE | MAX HEAD LOAD (Kg/M²)* |
|---|---|---|---|---|---|---|---|
| 712.CRMH4M | 4 | 1000 | 140 | 89 | 76 | 600 x 115 | 50 / 0.50 |
| 712.CRMH5M | 5 | 1000 | 140 | 89 | 76 | 600 x 115 | 45 / 0.39 |
| 712.CRMH6M | 6 | 1000 | 140 | 89 | 76 | 600 x 115 | 30 / 0.20 |
| 712.CRMH8M | 7.7 | 1200 | 168 | 101 | 101 | 600 x 115 | 30 / 0.25 |

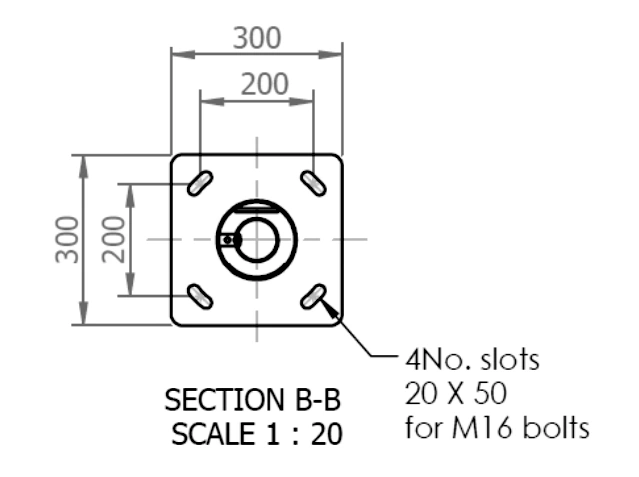

| Product code | A (M) | B (MM) | C (MM) | C (MM) | E (MM) | DOOR APERTURE | MAX HEAD LOAD (Kg/M²)* | HOLE CENTRE | BOLTS |
|---|---|---|---|---|---|---|---|---|---|
| 712.CFMH4M | 4 | N/A | 140 | 89 | 76 | 600 x 115 | 50 / 0.50 | 200 x 200 | M16 |
| 712.CFMH5M | 5 | N/A | 140 | 89 | 76 | 600 x 115 | 45 / 0.39 | 200 x 200 | M16 |
| 712.CFMH6M | 6 | N/A | 140 | 89 | 76 | 600 x 115 | 30 / 0.20 | 200 x 200 | M16 |
| 712.CFMH8M | 7.7 | N/A | 168 | 101 | 89 | 600 x 115 | 30 / 0.25 | 300 x 300 | M24 |
