Kingsley
Product Description:
The KINGSLEY LED exterior wall lights. Industrial styling provides substantial presence. An output of up to 4025 lumens with efficacy at up to 112 Ll/cW and three distributions for maximum versatility, (General 45° Lens as standard).
Extruded and cast aluminium construction, finished in a dark grey powdercoat (RAL7043) over a chromate conversion then sealed to IP65 during final assembly plus tempered clear flat glass lens.
Whether wall-mounted or surface-mounted, the KINGSLEY offers both direct and indirect lighting options to illuminate facades, building entrances and public areas.
Product Data
| Product code | Distribution | Circuit Watts (w) | Delivered Lumens | Colour Temp | Efficacy Ll/cW |
|---|---|---|---|---|---|
| Ceiling Mount (down) | |||||
| 770.L45.1060.840 | General | 9.5 | 1060 | 840 | 112 |
| 770.L45.1450.840 | General | 13 | 1450 | 840 | 112 |
| 770.L45.2015.840 | General | 19 | 2015 | 840 | 106 |
| Wall Mount 1-Way (up or down) | |||||
| 771.L45.1060.840 | General | 9.5 | 1060 | 840 | 112 |
| 771.L45.1450.840 | General | 13 | 1450 | 840 | 112 |
| 771.L45.2015.840 | General | 19 | 2015 | 840 | 106 |
| Wall Mount 2-Way (up & down) | |||||
| 772.L45.2115.840 | General | 19 | 2115 | 840 | 112 |
| 772.L45.2900.840 | General | 26 | 2900 | 840 | 112 |
| 772.L45.4025.840 | General | 38 | 4025 | 840 | 106 |
Product Options
-
Correlated colour temp
suffix .830
-
30° Narrow Lens
suffix .L30 -
60° Wide Lens
suffix .L60
Features
Protection
Temperature
RAL7043
Dimensions

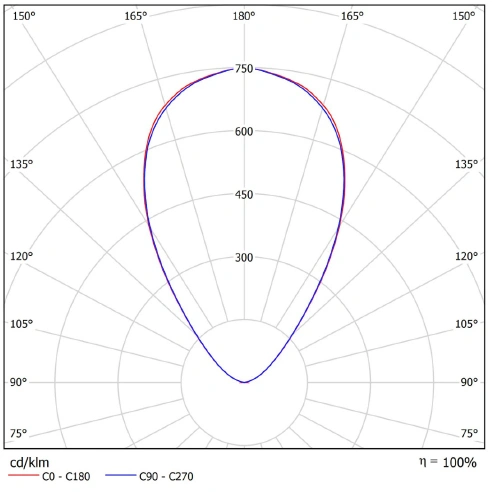

Photometric Performance
- Kingsley (771 General)
- Output - 2900
- Watts - 28
- LOR – 100%
