Drake
Product Description:

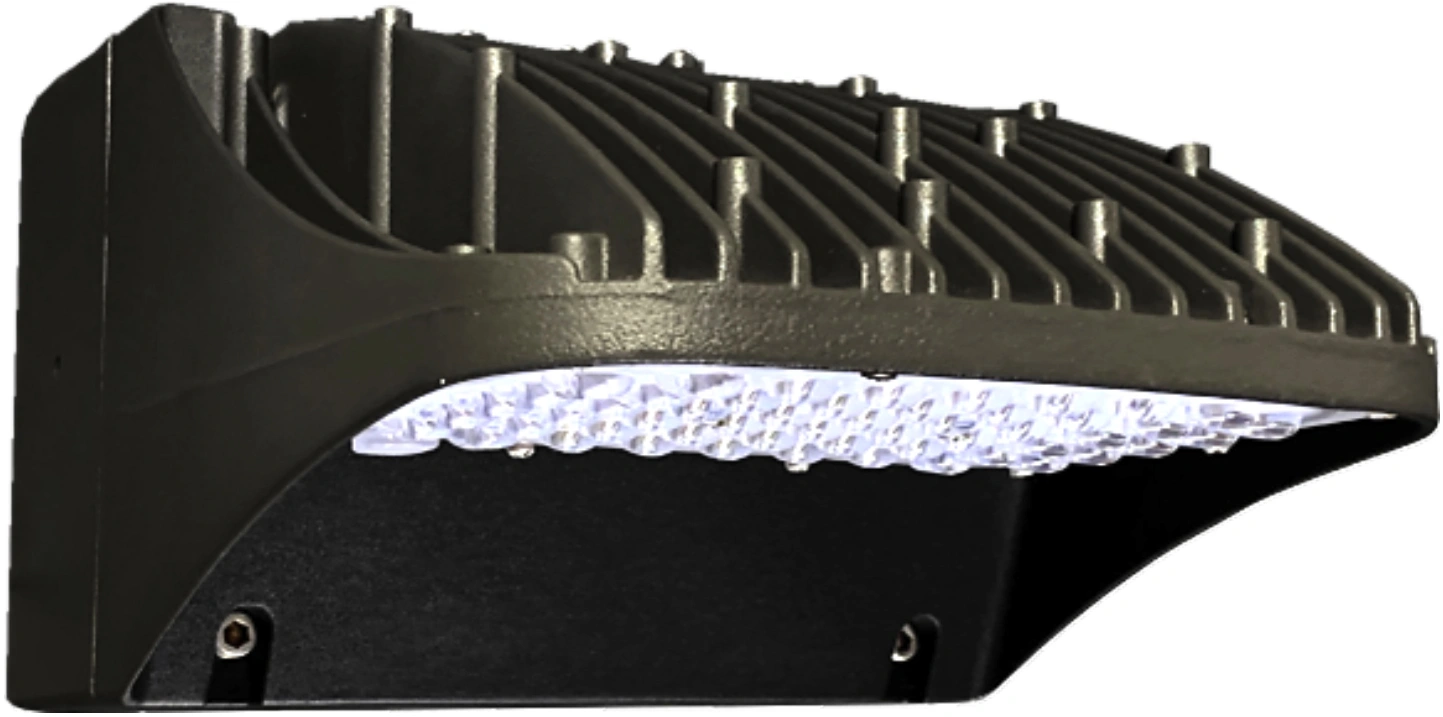

The DRAKE 2 LED exterior wall luminaire. Rounded, industrial aesthetics provide a decorative solution to amenity lighting. High efficiency with an output of 4500 lumens and efficacy of 112 Ll/cW and a full cut-off geometry ensures zero uplight meeting dark sky requirements.
Can be mounted over a BESA or 100mm back box.
Diecast aluminium construction, finished in textured black (RAL9005) powdercoat over a chromate conversion. Sealed to IP66 with a clear, one part UV stabalised polycarbonate lens array.
By minimising glare and reducing light trespass and skyglow, this product has been rated DarkSky approved.
Product Data
| Product code | Curcuit Watts (w) | Delivered Lumens | Colour Temp | Efficacy Ll/cW |
|---|---|---|---|---|
| 775.3200.840 | 28 | 3200 | 5000 | 112 |
| 775.4500.840 | 42 | 4500 | 5000 | 106 |
Product Options
-
Correlated colour temp
suffix .830 -
Correlated colour temp
suffix .850
-
3hr Emergency
suffix .EM3
-
Photocell
suffix .S6
Features
Protection
Temperature

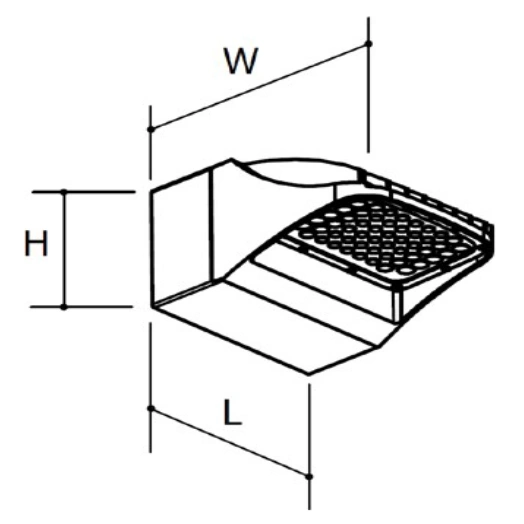

Dimensions
Photometric Performance
- DRAKE
- Output - 4500
- 42W
- LOR - 100%
