Product Description:

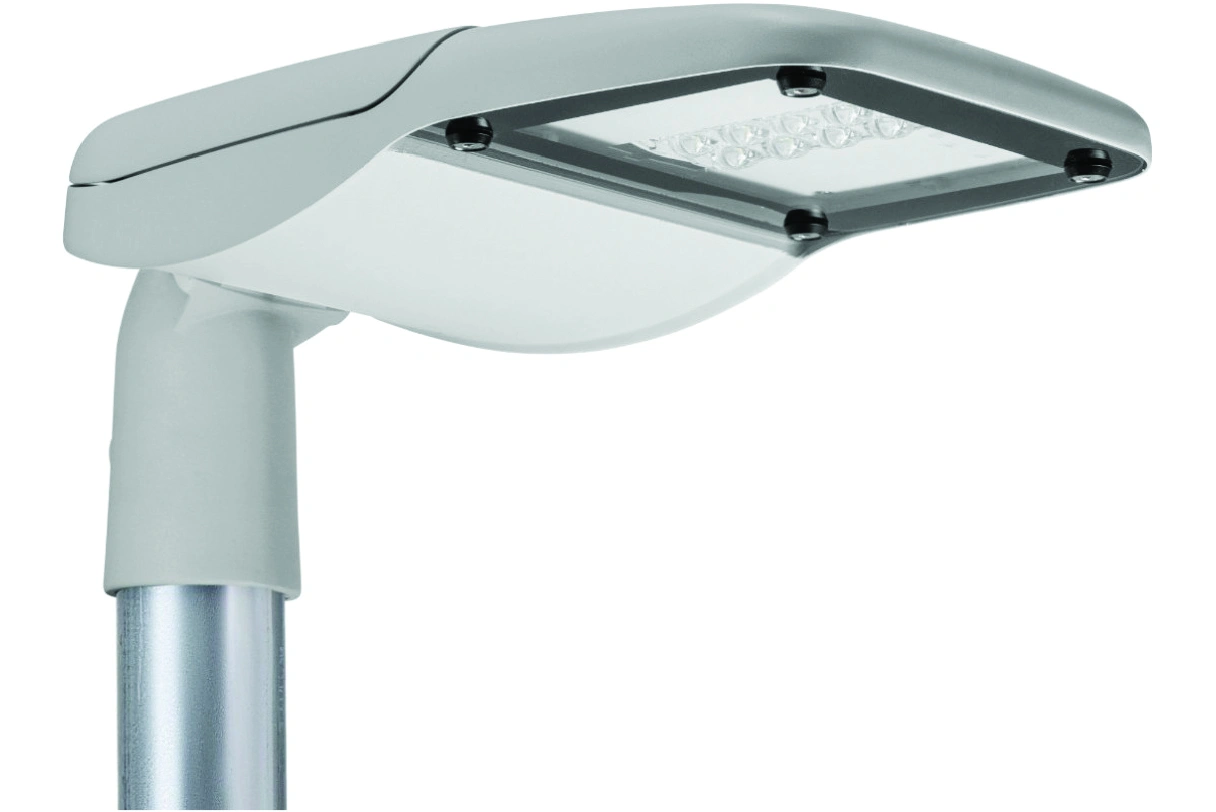

The KENSINGTON, a versatile pole-mounted LED street luminaire, delivers exceptional performance and aesthetics for public spaces. Direct light distribution ensures efficient illumination for walkways, parking areas, and streets. The KENSINGTON boasts superior durability with a tempered glass diffuser that offers exceptional light transmittance and impact resistance, ideal for harsh outdoor environments. There are optional lenses available to suit application. The aluminium housing guarantees long-lasting performance and excellent heat dissipation, while the light grey finish (RAL7035) provides a modern and clean aesthetic.
The KENSINGTON offers flexible mounting options. Mount it directly onto a Ø60mm horizontal or vertical pole with two screws (mounting bracket required for wall installation, sold separately). Additionally, fine-tune light direction for optimal coverage with +/- 15 degrees of adjustability on both horizontal and vertical poles. A range of optics brackets and pole adapters are available on request allowing for a wide range of installation options.
The KENSINGTON is the perfect solution for illuminating public spaces, parking areas, and streets, offering a blend of style, durability, and flexible functionality.

Product Data

Product code Curcuit Watts (w) Delivered Lumens Delivered Lumens Efficacy Ll/cW Dimension (mm)
790.LSA1.2600.840 19 2600 4000 137 102 x 525 x 205
790.LSA1.2900.840 21 2900 4000 138 102 x 525 x 205
790.LSA1.3250.840 24 3250 4000 135 102 x 525 x 205
790.LSA1.3700.840 28 3700 4000 132 102 x 525 x 205
790.LSA1.5200.840 36 5200 4000 144 102 x 525 x 205
790.LSA1.5800.840 41 5800 4000 141 102 x 525 x 205
790.LSA1.6700.840 43 6700 4000 156 102 x 525 x250
790.LSA1.7750.840 51 7750 4000 152 102 x 525 x250
790.LSA1.8700.840 59 8700 4000 147 102 x 525 x250
790.LSA1.9700.840 67 9700 4000 145 102 x 525 x250
790.LSA1.11600.840 77 11600 4000 151 102 x 625 x 288
790.LSA1.12900.840 88 12900 4000 147 102 x 625 x 288
790.LSA1.14700.840 103 14700 4000 143 102 x 625 x 288
790.LSA1.15500.840 101 15500 4000 153 102 x 625 x 288
790.LSA1.17400.840 116 17400 4000 150 102 x 625 x 288
790.LSA1.19350.840 132 19350 4000 147 102 x 625 x 288
790.LSA1.20700.840 135 20700 4000 153 102 x 776 x 320
790.LSA1.23150.840 155 23150 4000 149 102 x 776 x 320
790.LSA1.25800.840 176 25800 4000 147 102 x 776 x 320

Product Options

  • Correlated colour temp
    suffix .830
  • Correlated colour temp
    suffix .850
  • Correlated colour temp
    suffix .857
  • Correlated colour temp
    suffix .860
  • Asymmetric
    beam SA1
    suffix .LSA1
  • Asymmetric
    beam SA2
    suffix .LSA2
  • Asymmetric
    beam SM1
    suffix .LSM1
  • Asymmetric
    beam SM2
    suffix .LSM2
  • Asymmetric
    beam SS1
    suffix .LSS1
  • Asymmetric
    beam SS2
    suffix .LSS2
  • Asymmetric
    beam SPR
    suffix .LSPR
  • Asymmetric
    beam SPL
    suffix .LSPL
  • 140° beam angle
    suffix .LS140
  • Dark Grey RAL7022
    suffix .DG
  • Building Information
    modelling
    (Please Download from
    our website)
  • Photocell
    suffix .S6
  • Dali
    suffix .D1

Features

Ingress Protection
Colour
Temperature
Impact
Protection
Grey

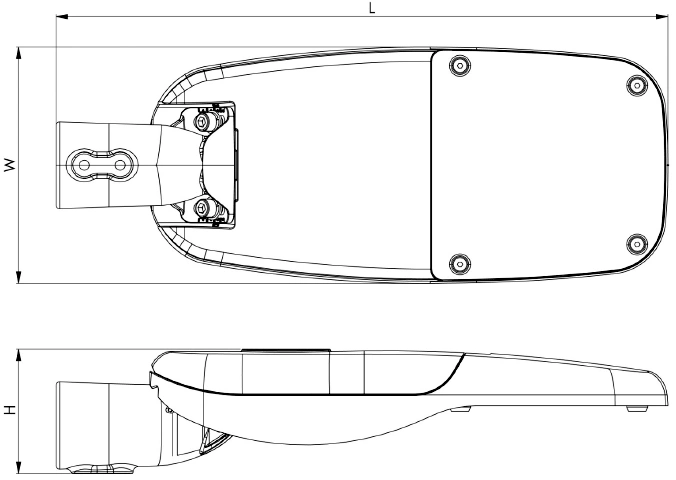

Dimensions

mmmmmmmm
H 102 102 102 102
L 525 525 625 776
W 205 250 288 320
KG 3.5 5 7.3 9.4

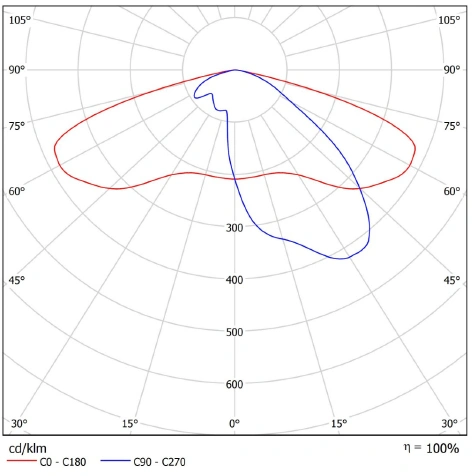

Photometric Performance

  • KENSINGTON LSM1
  • Output – 2900
  • Watts – 21
  • LOR -100%

Led Performance

25˚ Ambient Temperature L90/B10
KENSINGTON 100,000
‘L’ Value = % of initial Lumens maintained after specified time
‘B’ Value = % of fittings failing to meet operational expectations after specified time

Related Products

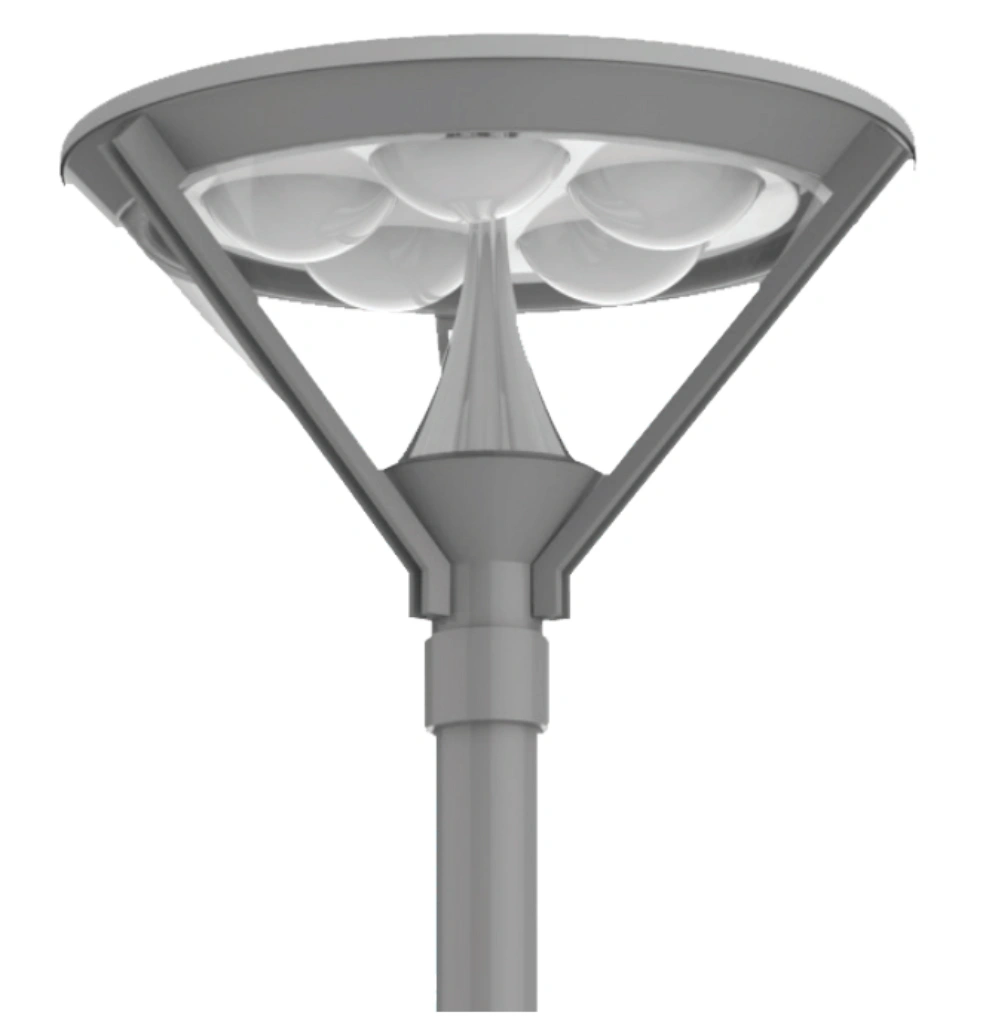

Mayfair

The MAYFAIR LED post-top luminaire combines timeless elegance with modern performance, delivering up to 5200 lumens with an impressive efficacy of up to 65 Ll/cW. Designed for durability and aesthetic…

VIEW PRODUCT

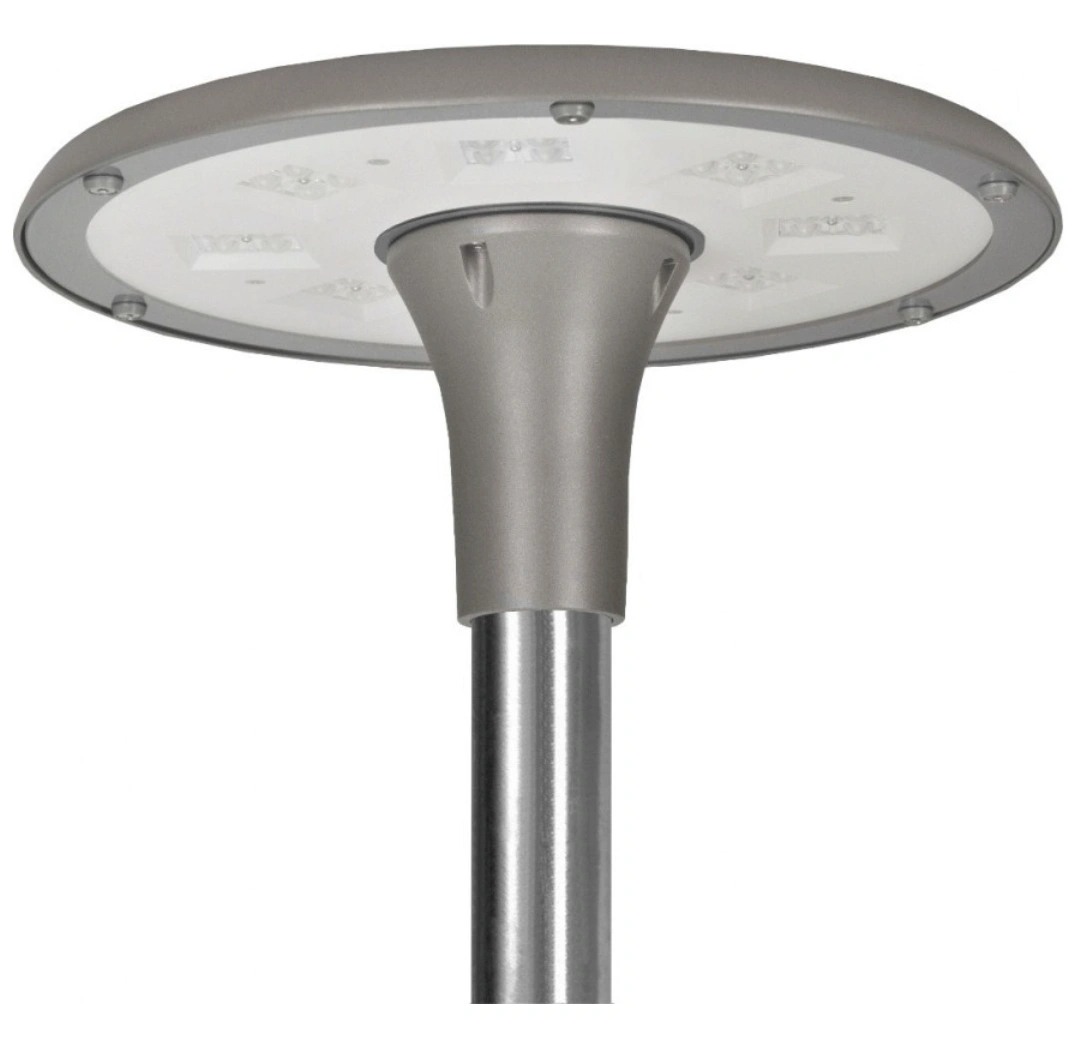

Knightsbridge

The KNIGHTSBRIDGE is a pole-mounted LED luminaire designed to illuminate parks and public spaces with exceptional performance and durability. Direct light distribution ensures efficient downward illumination, ideal for creating a…

VIEW PRODUCT

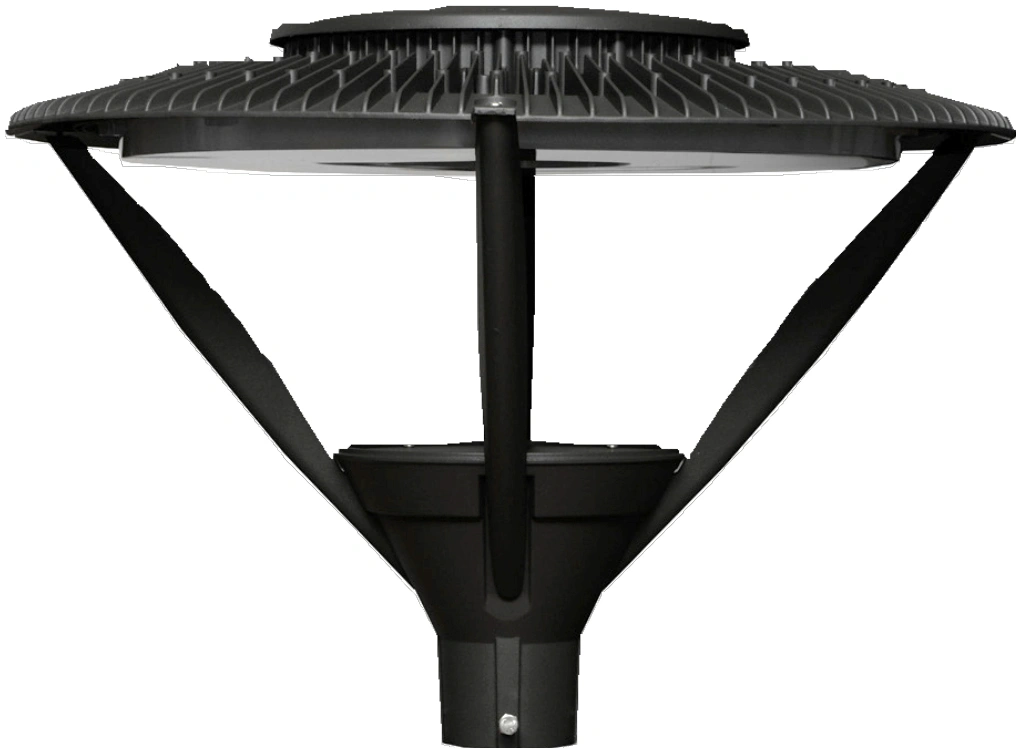

Scott

The SCOTT LED pole top luminaire. An elegant lantern design available in two sizes with or without ribbed diffuser surround. With an output of up to 1900 lumens and efficacy…

VIEW PRODUCT

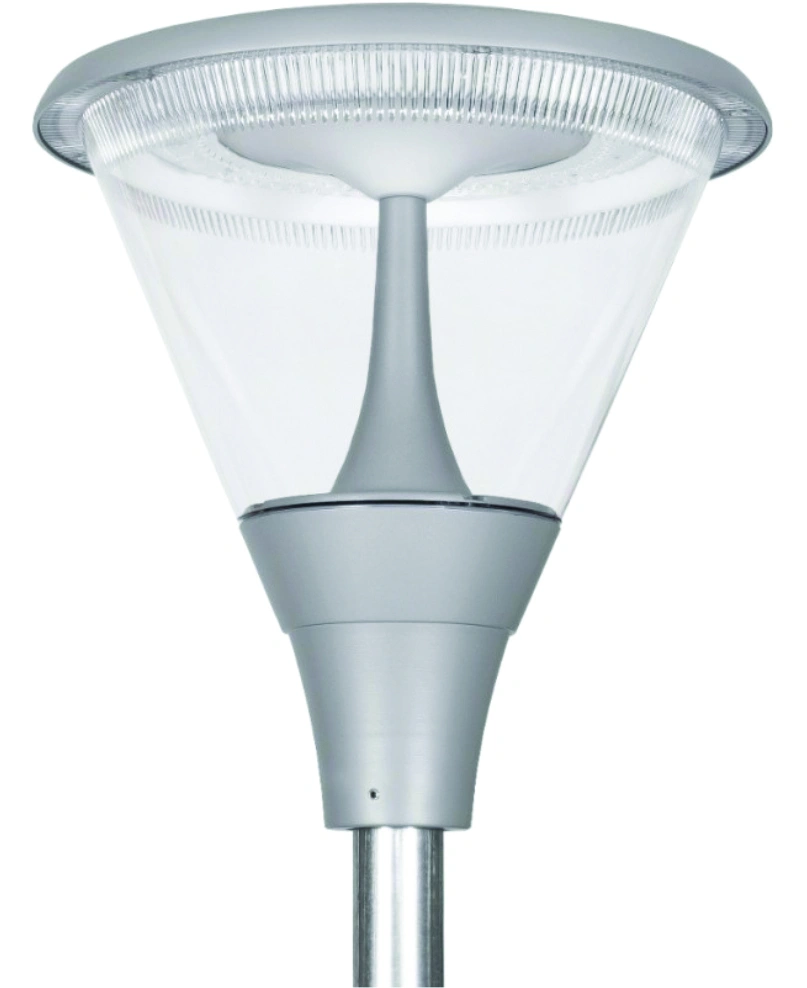

Chelsea
