Product Description:

The CHELSEA, a stylish and robust LED luminaire, brings efficient downward illumination to parks and public spaces. This pole-mounted fixture utilizes a combination of lenses and an impact- resistant polycarbonate diffuser for excellent light transmittance while withstanding harsh outdoor environments.
The CHELSEA boasts a durable aluminium housing for long-lasting performance and superior heat dissipation. Enjoy a respectable 50,000-hour LED lifetime (L80B10) for minimal maintenance needs. With an IP66 ingress protection rating, the CHELSEA safeguards against dust and water ingress, while IK08 mechanical impact resistance ensures protection from accidental impacts. The luminaire operates effectively within a temperature range of -25°C to +40°C.
Effortless installation is ensured with simple mounting onto Ø60mm poles using just three screws. A convenient push-in terminal (3x2x2.5mm²) simplifies electrical connection. Additionally, the CHELSEA maintains high colour consistency (SDCM 5) for a visually pleasing and consistent lighting experience.
Offering a perfect blend of functionality, durability, and ease of use, the CHELSEA is the ideal solution for park and public space illumination. Its efficient light distribution, long-lasting LED performance, and simple installation make it a versatile choice for a wide range of outdoor lighting applications.

Product Data

Product code Curcuit Watts (w) Delivered Lumens Colour Temp Efficacy Ll/cW
794.5300.840 39 5300 4000 136
794.7400.840 58 7400 4000 128
794.9350.840 78 9350 4000 120

Product Options

  • Correlated colour temp
    suffix .830
  • Dali
    suffix .D1
  • Building Information
    modelling
    (Please Download from
    our website)

Features

Ingress
Protection
Colour
Temperature
Impact
Protection
Grey

Dimensions

mm
H 525
D 500
KG 9

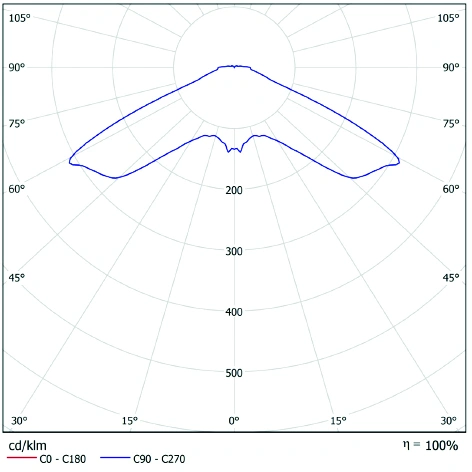

Photometric Performance

  • Galactic Square
  • Output - 3777
  • Watts – 25.6
  • LOR - 100%

Led Performance

25˚ Ambient Temperature L80/B10
CHELSEA 50,000
‘L’ Value = % of initial Lumens maintained after specified time
‘B’ Value = % of fittings failing to meet operational expectations after specified time
