Product Description:

The GAMMA 2 LED bollard range blends style with functionality, offering an impressive output of up to 1500 lumens and an efficiency of up to 88 Ll/cW. Designed with a robust extruded aluminum housing and equipped with vandal-resistant screws, it includes an internal driver tray for straightforward maintenance and comes complete with a mounting kit and 200mm anchor bolts.

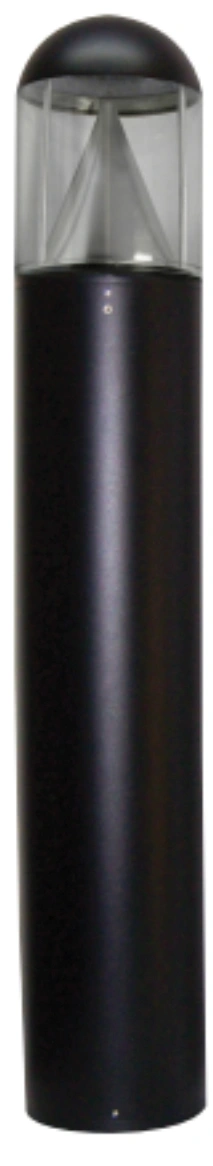

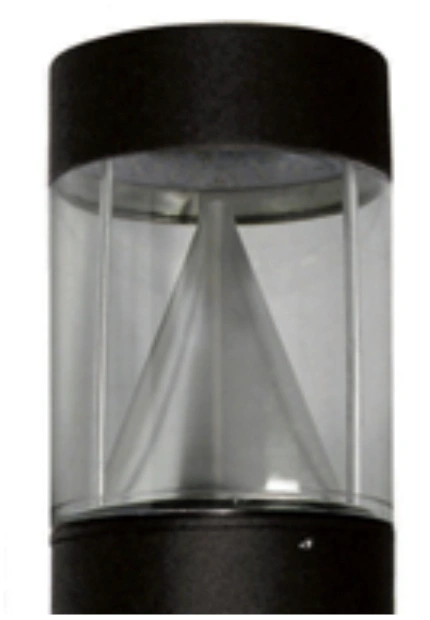

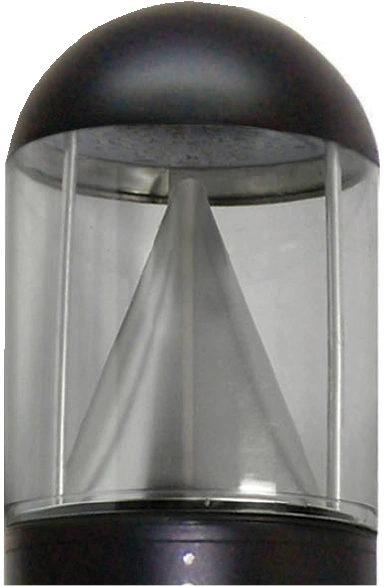

Available with either a flat or domed top, each bollard is finished in a black powdercoat (RAL9005) over a durable chromate conversion coating. Its optical system features a reflective white polycarbonate cone reflector paired with a clear, vandal-resistant polycarbonate lens for optimal light distribution.

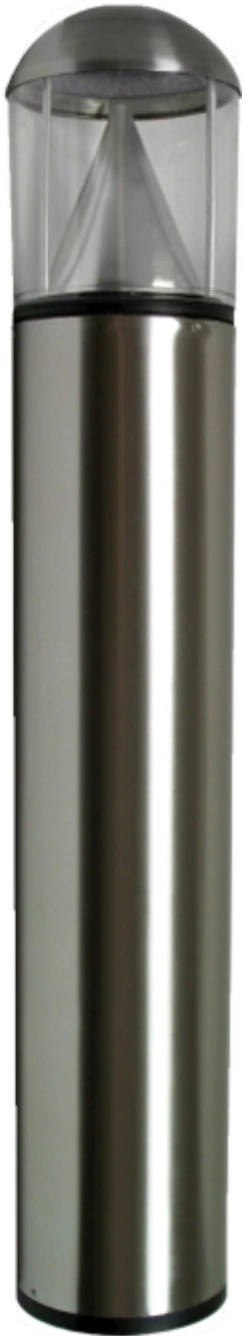

A stainless steel version of the domed model is also offered, constructed from 316 marine- grade stainless steel for outstanding corrosion resistance, making it ideal for coastal or industrial environments. This sturdy, recyclable option is not only highly resistant to wear and vandalism but also enhances any outdoor setting with its sleek, contemporary look. Its resilient design provides long-lasting performance with minimal upkeep, making it a sustainable and secure choice for lighting paths, service roads, and open spaces.

Product Data

Product code Curcuit Watts (w) Delivered Lumens Colour Temp Efficacy Ll/cW
Dome
735.1500.840 16 1550 4000 94
Flat
736.1500.840 16 1500 4000 94

Product Options

  • Correlated colour temp
    suffix .830
  • Correlated colour temp
    suffix .850
  • 3hr Emergency
    suffix .EM3
  • Microwave Occupancy
    Detection
    suffix .S3
  • Stainless Steel
    suffix .SS
  • MS10
    Root Mount Kit

Features

Ingress
Protection
Colour
Temperature

Dimensions

mm 735 736
H 1073 1057
W 178 178
KG 6.5 6.2

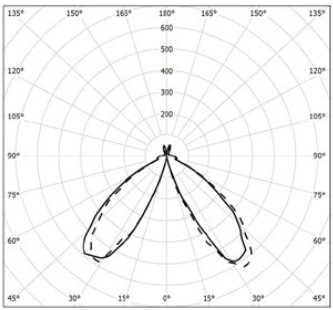

Photometric Performance

  • GAMMA 2
  • Output - 1500
  • 17w
  • LOR - 100%

Led Performance

25˚ Ambient Temperature L70/B50
GAMMA 2 100,000
‘L’ Value = % of initial Lumens maintained after specified time
‘B’ Value = % of fittings failing to meet operational expectations after specified time
