161.S.BT.C
Product Description:
This advanced Bluetooth low-energy MESH network Tuneable LED dimming controller offers seamless control with cutting-edge connectivity. Compatible with iOS and Android devices, it integrates effortlessly with the Light MESH app, enabling remote adjustments and convenient customization. Its ultra-slim design combines sleek aesthetics with functionality, while options for full protection and waterproofing ensure durability in various environments.
The controller provides flicker-free, adjustable brightness with a reliable 15-meter transmission range in open areas. Perfect for modern lighting setups, this device offers versatile, user-friendly control in a compact, high-performance package.
SPECIFICATION
| Voltage | 6 ~ 24VDC |
| Rated Output Current | 1 x 15A |
| Smartphone Connection | Bluetooth 4.0 and above |
| RF Band | ISM 2.4GHz |
| Wireless Transmission Power | <7dBm |
| Maximum pieces on a single network | 255 |
| PWM Output Grade | 4000 levels |
| PWM Frequency | 1KHz default (1-8k available) |
| Protection | Reverse Polarity, Overload, Short Circuit, Thermal |
| Working Temperature | -30 ~ +60°C |
| IP Rating | IP63 |
| Dimming Control | 0 ~100% with gamma correction |
| Dynamic Modes | 8 Modes |
| Dynamic Speed Levels | 0 ~ 99 Levels |
| Failsafe Memory Function | Included |
| Input Cables | 16AWG Red / Black 120mm |
| Output Cables | 16AWG Red / Black 120mm |
| Weight | 22g |
| Dimensions | 87 x 21 x 8.5mm |

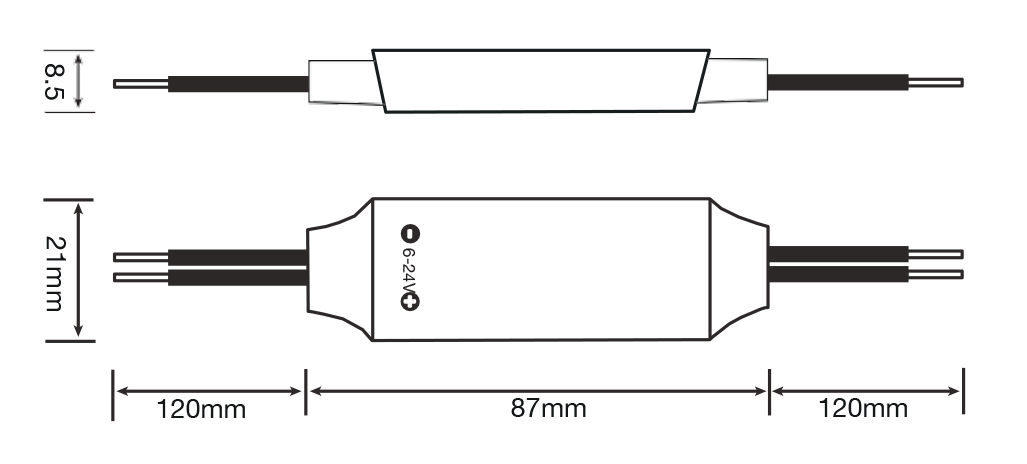

Dimensions
