Product Description:

The EM-TRACK Area redefines emergency escape lighting with its sophisticated design and seamless integration into existing 3-circuit lighting tracks. Ideal for mounting heights up to 5 meters, it delivers reliable and compliant illumination for a variety of applications. Effortless installation directly on your track system allows for precise positioning and on-site commissioning, ensuring light placement exactly where it’s needed. The wide area, high lumen output minimizes the number of fixtures required, reducing overall costs. The EM-TRACK Area features a slim, architectural design that blends seamlessly with any interior environment. Its minimal size ensures an unobtrusive visual presence. Available in white or black to perfectly match your existing track system, it offers a cohesive aesthetic. Built with the highest standards in mind, the EM-TRACK Area undergoes regular self-testing to guarantee functionality and compliance with safety regulations. This includes a weekly 5-second self-test and an annual full 3-hour duration test. Non-maintained emergency lighting provides illumination for 3 hours during a power outage, ensuring safe evacuation. The EM-TRACK Area boasts high-output LEDs for exceptional brightness and long life. Advanced technology safeguards operation: reverse battery protection, over-voltage protection, and deep discharge protection ensure safe operation and extended battery life. The system utilizes energy-efficient LiFePO4 batteries, offering a sustainable and long-lasting solution. Mercury-free and RoHS compliant, the EM-TRACK Area prioritizes environmental responsibility.

Product Data

Product code Curcuit Watts (w) Delivered Lumens Colour Temp
390.2.300 3 300 4000

Lumen Output

1m 2m 3m 4m 5m
LUX 130lx 33lx 14lx 6lx 5lx
Beam Width 2.2m 4.4m 6.6m 8.8m 11m
Running Mode: 1.3Watts (Once battery in charged)
Charge Mode: 3.0Watts (Whilst battery is charging)
Battery discharge Mode: 85mA (When in Emergency mode)

Product Options

  • Black Finish
    suffix .B

Features

Ingress Protection
Emergency Self
Test
Colour
Temperature
White Finish

Dimensions

mm
D 62
H 38
L 248
L overall 322
KG 0.7

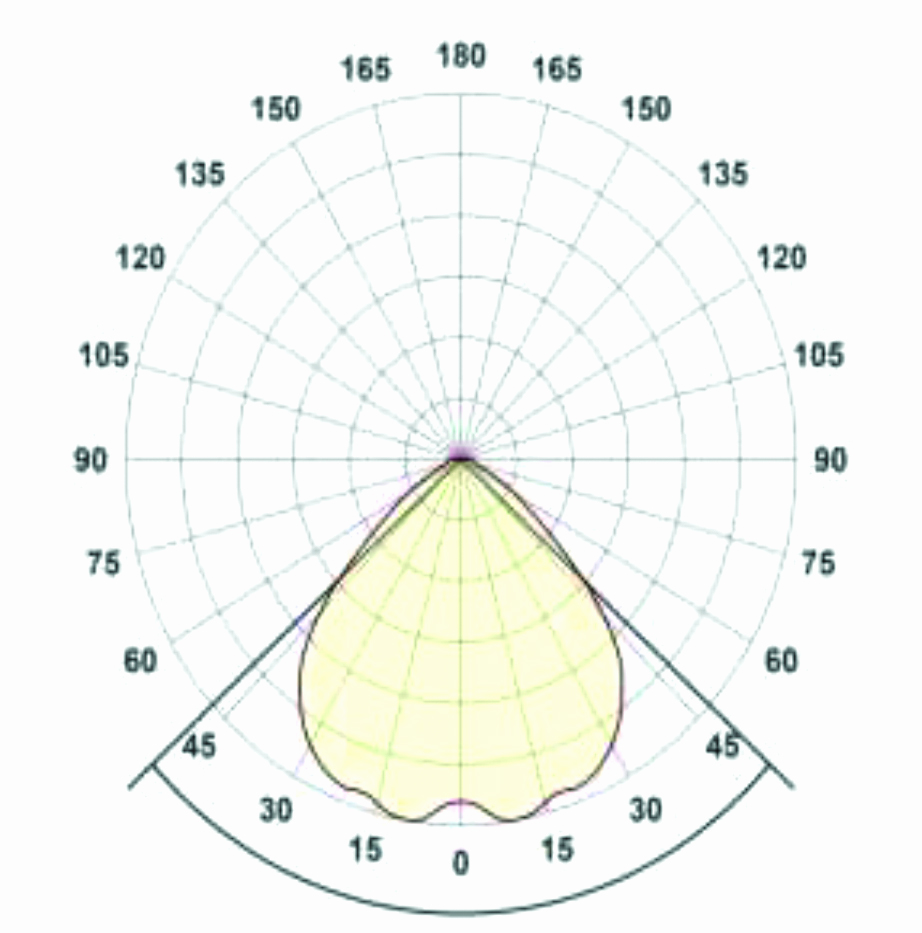

Photometric Performance

  • 335.4421.242.840
  • Output – 3057
  • Watts – 23.2
  • LOR -100%

Led Performance

25˚ Ambient Temperature L70/B50
EM-TRACK 100,000
L’ Value = % of initial Lumens maintained after specified time
‘B’ Value = % of fittings failing to meet operational expectations after specified time
